Technical Specifications
| Parameter | Description |
|---|---|

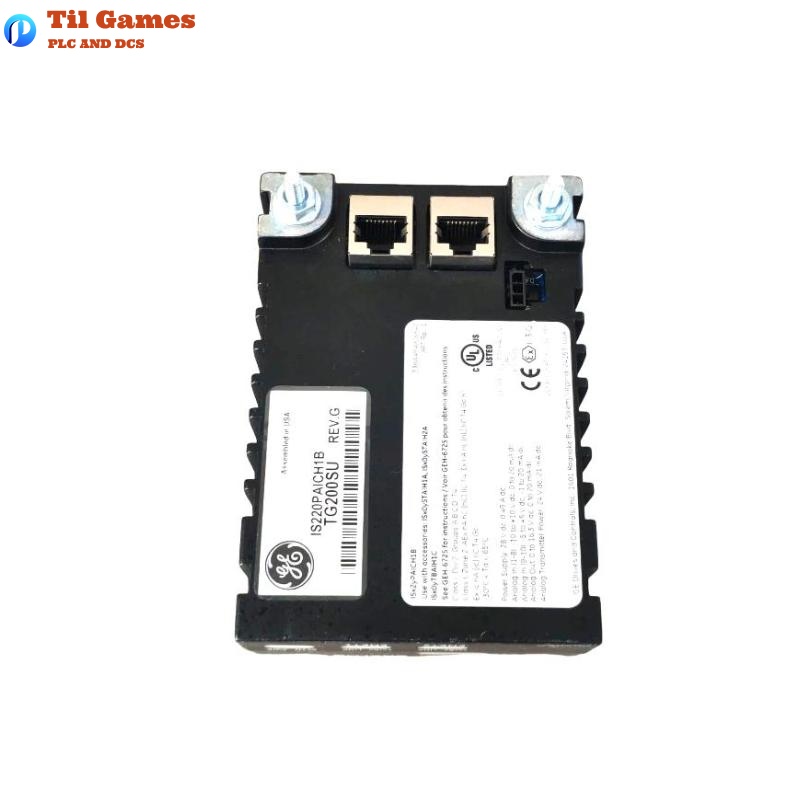

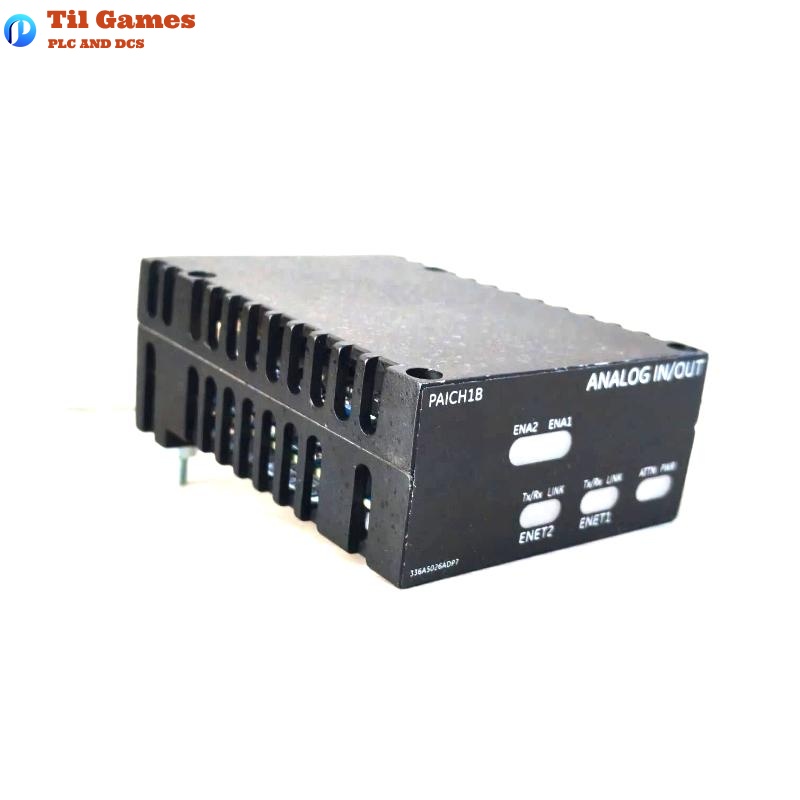

| Product Model | IS220PAICH1B |
| Series | GE Mark VIe |
| Function | Analog I/O Pack |
| Analog Input Channels | 10 (Channels 1–8: ±5 V, ±10 V, 0–20 mA; Channels 9–10: ±1 mA, 0–20 mA) |
| Analog Output Channels | 2 (0–20 mA, 18 V compliance) |
| Input Converter Resolution | 16-bit A/D converter |
| Output Converter Resolution | 14-bit D/A converter |
| Scan Time | 5 ms (200 Hz) |
| Power Supply Voltage | 22.5 – 28.6 V DC |
| Power Consumption | 5.3 W typical, 6.2 W max |
| Network Interfaces | 2 × RJ45 Ethernet ports |
| Output Connector | 1 × DC-37 connector |
| LED Indicators | Power, Status, Activity |
| Auto-Reconfiguration Support | Yes |
| Dimensions (W × H × D) | 82.6 mm × 41.9 mm × 121 mm |
| Weight | 0.907 kg |
FAQ
FAQ
Q1: What types of input signals does the IS220PAICH1B support?
A1: Channels 1–8 support ±5 V, ±10 V, or 0–20 mA. Channels 9–10 support ±1 mA or 0–20 mA.
Q2: How many analog outputs does the IS220PAICH1B provide?
A2: The IS220PAICH1B provides two 0–20 mA analog output channels.
Q3: What is the resolution of the analog input and output converters?
A3: The analog input uses a 16-bit ADC, and the analog output uses a 14-bit DAC.
Q4: What is the power consumption of the IS220PAICH1B?
A4: Typical power consumption is 5.3 W; maximum is 6.2 W.
Q5: Can this module be hot-swapped or replaced without reconfiguration?
A5: Yes, it supports auto-reconfiguration, allowing hot-swapping without manual reprogramming.
Q6: What are the physical dimensions and weight of the IS220PAICH1B?
A6: The module measures 82.6 mm × 41.9 mm × 121 mm and weighs 0.907 kg.
Q7: What is the maximum scan frequency supported?
A7: The module supports a scan time of 5 ms, equivalent to 200 Hz.
Q8: What types of Ethernet interfaces are available on the module?
A8: The module includes two RJ45 Ethernet ports for redundant or dual-network support.
