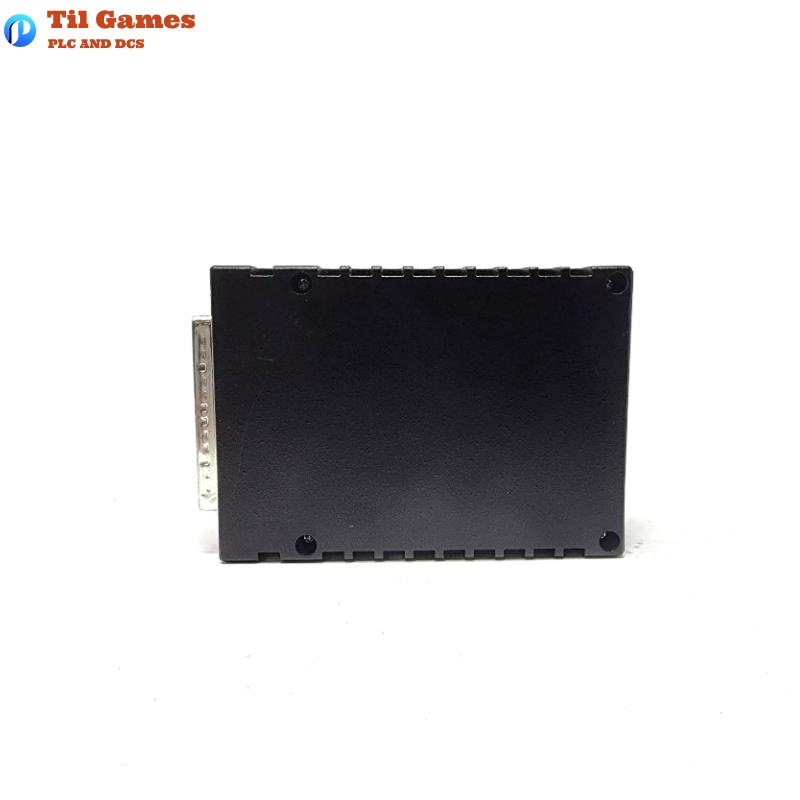

Technical Specifications
| Parameter | Description |
|---|---|

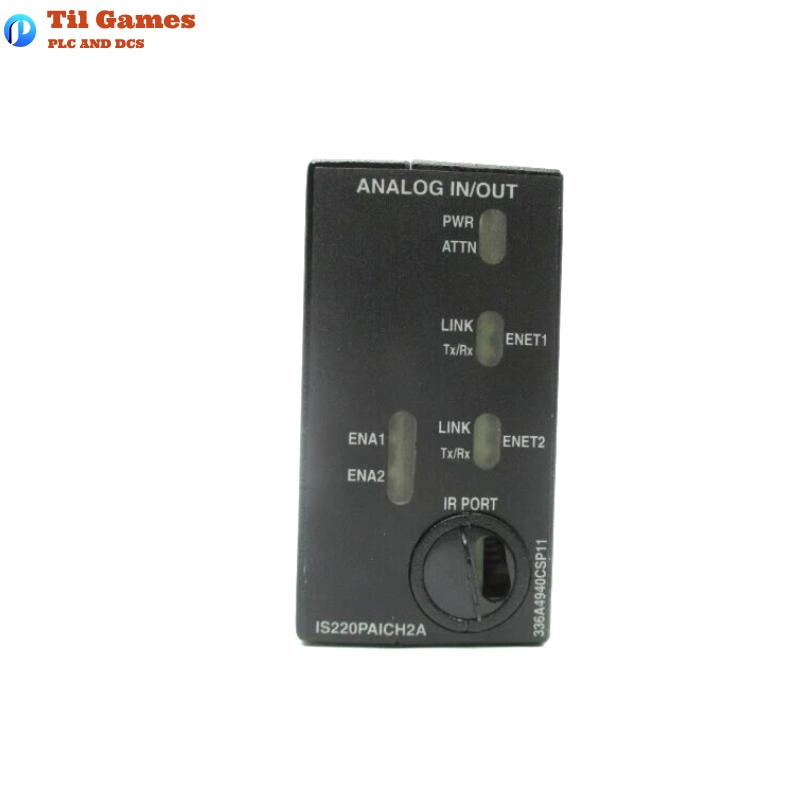

| Model Number | IS220PAICH2A |
| Series | Mark VIe |
| Manufacturer | General Electric (GE) |
| Function | Analog I/O Module |
| Analog Inputs | 10 total (8 configurable for 5 V / 10 V / 4-20 mA, 2 for 1 mA or 4-20 mA) |
| Analog Outputs | 2 channels (0–20 mA, Output 1 supports 0–200 mA with daughterboard) |
| Input Configuration | Voltage or current selectable |
| Output Type | Current loop (0–20 mA standard, 0–200 mA optional) |

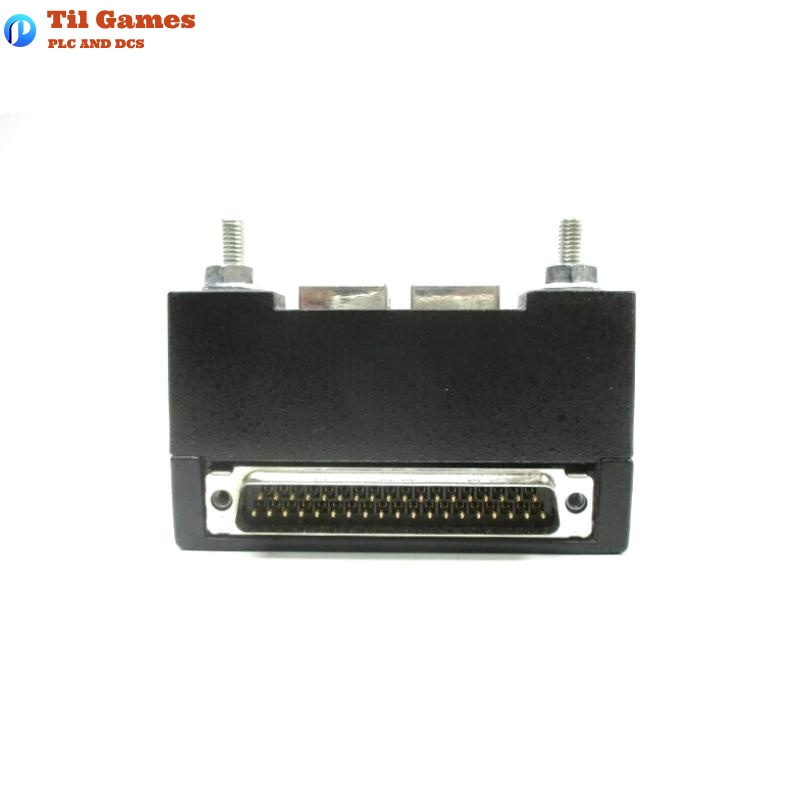

| Terminal Connection | DC-37 pin connector |
| Ethernet Ports | 2 × RJ-45 for dual network redundancy |
| Processor Board | BPPx processor board |
| Power Supply Connection | 3-pin connector |
| Status Indicators | LED diagnostics |
| Mounting | Directly onto terminal board with threaded studs |
| Configuration Tool | ToolboxST |
| Dimensions | 82.6 × 41.9 × 121 mm |
| Weight | 0.907 kg |
FAQ
FAQ
Q1: What types of analog inputs does the IS220PAICH2A module support?
A1: It supports 10 analog inputs—eight can be configured as 5 V, 10 V, or 4–20 mA, and two can be configured as 1 mA or 4–20 mA inputs.
Q2: How does the module communicate with the controller?
A2: It communicates via dual RJ-45 Ethernet ports, supporting redundant network configurations.
Q3: Does the module support 200 mA analog output?
A3: Yes, analog output 1 supports up to 200 mA with the onboard daughterboard hardware.
Q4: Is it necessary to power down the system before installation?
A4: No, the module features soft-start capability that safely manages current inrush during connection.
Q5: How is the module installed onto the terminal board?
A5: The module plugs directly into the DC-37 connector on the terminal board and is secured using threaded studs.
Q6: How is the IS220PAICH2A configured?
A6: Configuration is done using the GE ToolboxST software tool.
Q7: Is the module compatible with triple modular redundancy (TMR) systems?
A7: Yes, when used with a TMR-capable terminal board, it can operate in simplex or TMR modes.
Q8: What is the difference between PAICH2 and PAICH2A?
A8: PAICH2A adds hardware support for 0–200 mA output on analog output 1, making it an enhanced version of PAICH2.
