Technical Specifications
| Parameter | Description |
|---|---|

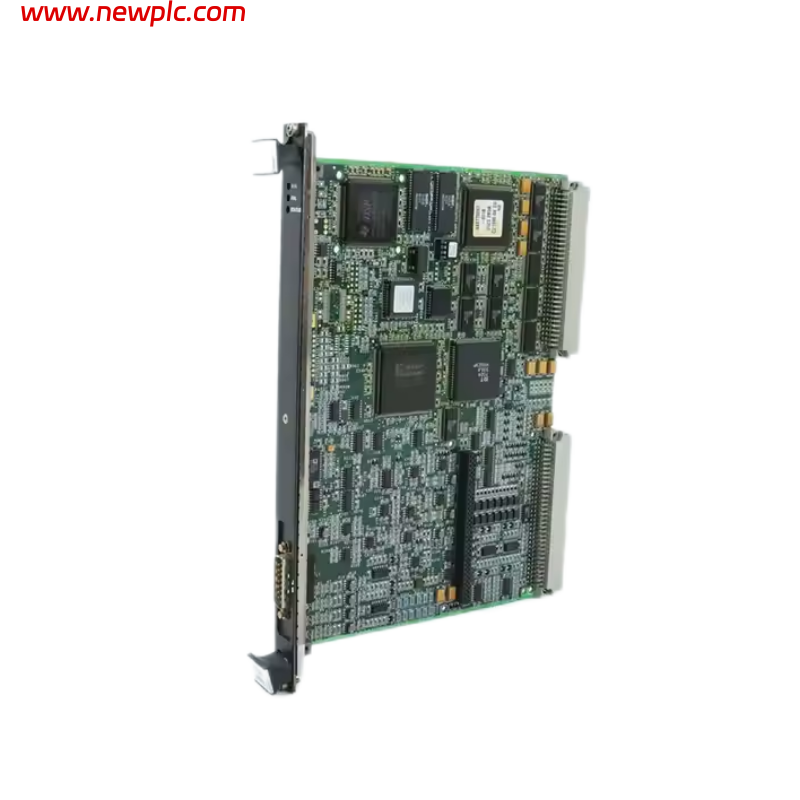

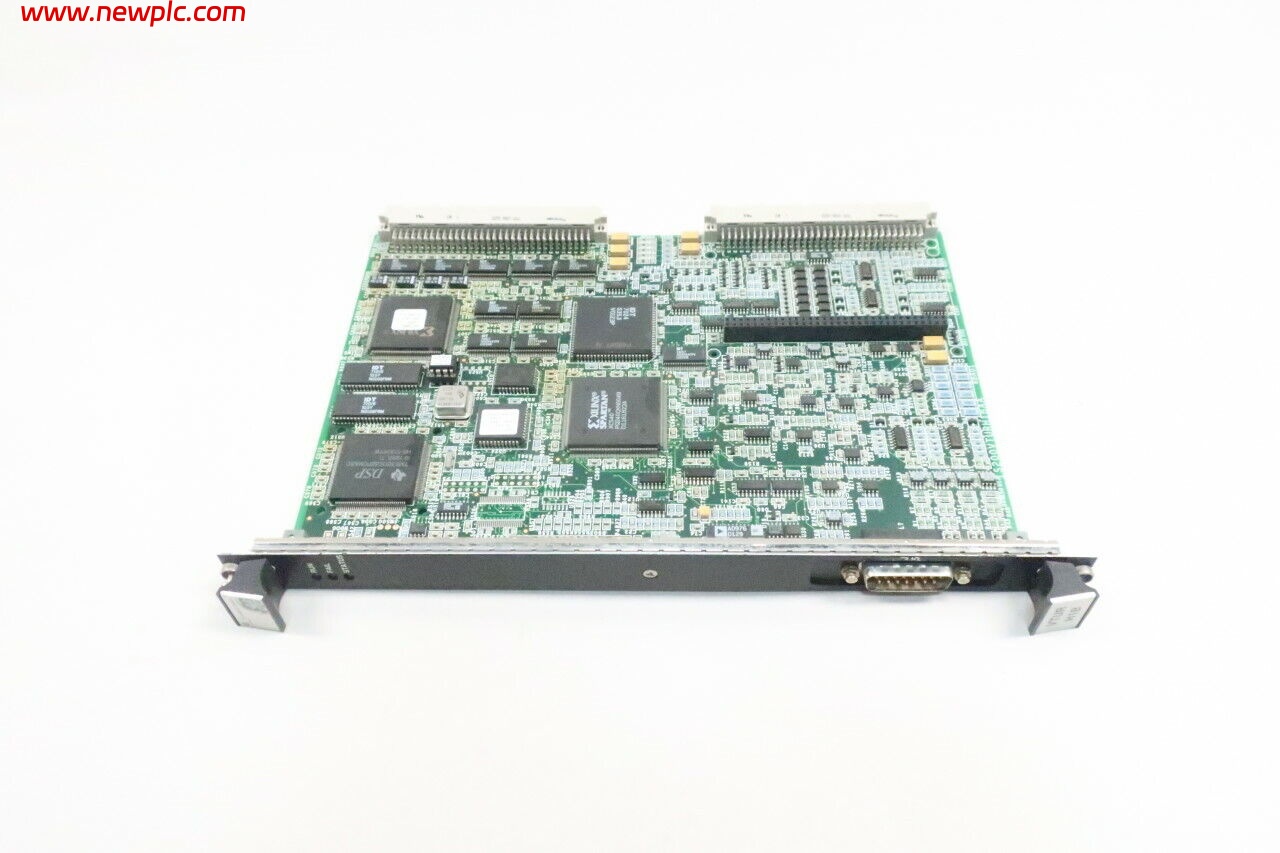

| Product Model | IS200VTURH1BAA |
| Manufacturer | General Electric (GE) |
| Product Type | Turbine Protection / Trip Control Card |
| Series / System Compatibility | GE Mark VI / Mark VIe Speedtronic turbine control system |
| Functional Role | Primary turbine protection and emergency trip logic processing module |
| Speed Input Range | 2 Hz – 20 kHz (for magnetic speed pickup signals) |
| Speed Measurement Accuracy | ±0.05 % of reading |
| Minimum Detectable Speed | ~2 RPM (27 mV input sensitivity) |
| Trip Solenoid Outputs | 3 (simplex) or up to 9 (TMR with redundant relays) |
| Flame Detector Support | Up to 8 flame detector inputs (gas turbine applications) |
| Shaft Monitoring | Induced shaft voltage/current monitoring support |
| Operating Temperature | Approx. 0 °C to +60 °C |
| Relative Humidity | 5 %–95 % (non‑condensing) – typical industrial tolerance |
| Protection / Coating | Conformal coating for industrial environments – typical Mark VI spec |
| Backplane Interface | VME rack slot mount |
| Front Panel Indicators | RUN / FAIL / STATUS LEDs |
| Connector | D‑shell front connector |
| Dimensions | Approx. 2.1 × 18.6 × 26.1 cm |
| Weight | Approx. 0.3 kg |
FAQ
FAQ
Q1. What is the IS200VTURH1BAA?
It is a primary turbine protection and trip control card used in GE Mark VI/Mark VIe Speedtronic control systems.
Q2. What protection functions does this board support?
It supports overspeed detection, flame detector processing, shaft voltage/current monitoring, and emergency trip output.
Q3. What speed input range can it process?
It accepts turbine speed pickup signals from ~2 Hz up to ~20 kHz.
Q4. How accurate is turbine speed measurement?
Speed measurements are accurate to approximately ±0.05 % of the measured value.
Q5. How many trip solenoids can it drive?
The board provides 3 trip solenoid outputs in simplex mode and up to 9 in TMR dual/voting configurations.
Q6. Does it support flame or combustion monitoring?
Yes, it supports up to 8 flame detector channels for gas turbine applications.
Q7. What are the physical size and weight?
The board measures about 2.1 × 18.6 × 26.1 cm and weighs around 0.3 kg.
Q8. What happens if this board fails?
Failure can compromise turbine overspeed protection and emergency trip logic, potentially leading to unsafe turbine operation or delayed shutdown.
