Technical Specifications
| Parameter | Specification |
|---|---|

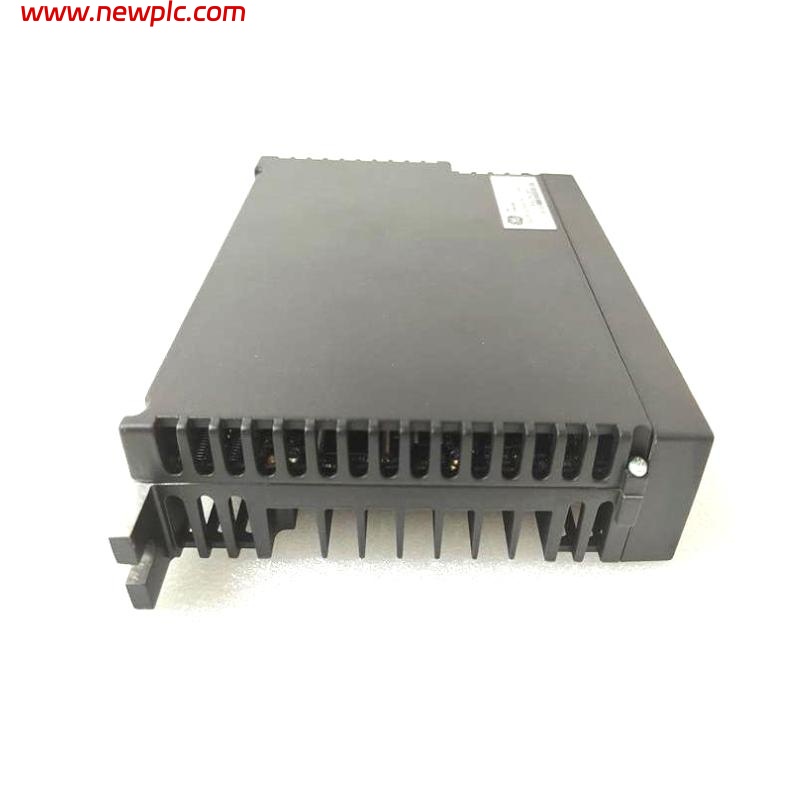

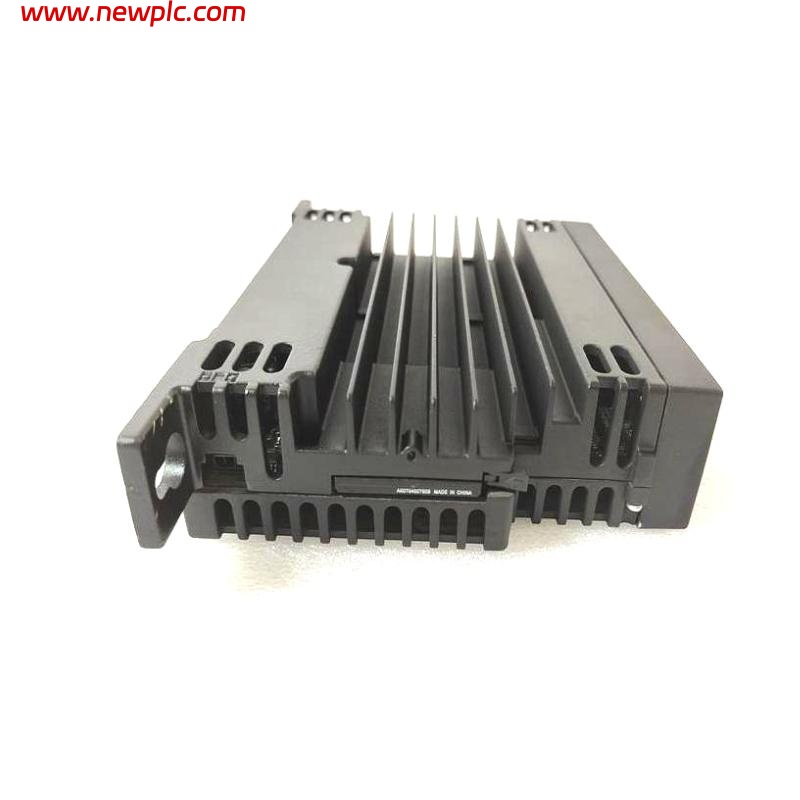

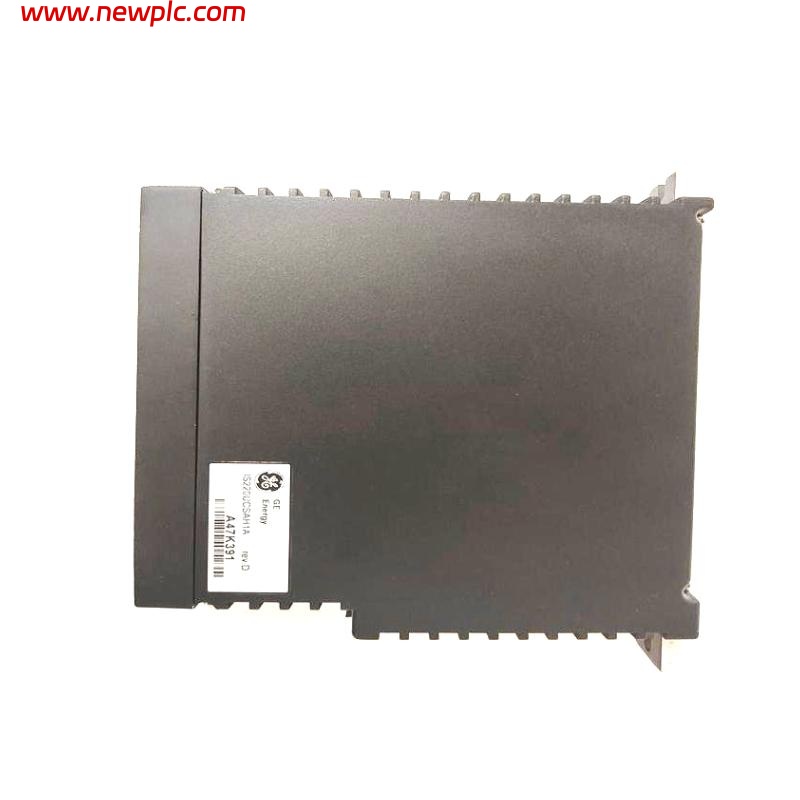

| Product Model | GE IS420ESWBH2A Mark VIe IONet Switch |
| Copper Ports | 16 ports, 10/100Base-TX copper, RJ-45 |
| Fiber Ports | 2 ports, 100Base-FX, multi-mode fiber, LC-type connection |
| Standards Compliance | IEEE 802.3, 802.3u, and 802.3x |
| Duplex Mode | Full/Half duplex auto-negotiation |
| Uplink Support | 100 Mbps FX uplink port |
| MAC Addresses | Supports 4K MAC addresses |
| Buffer Size | Minimum 256 KB |
| Auto-Sensing | HP-MDIX Auto sensing |
| Link/Activity Indicators | LED indicators per port (2-color) for link, activity, duplex, speed |
| Power LEDs | LED for power status |
| Power Requirements | 24/28 V DC, 1 A max |
| Power Supply Redundancy | Dual independent inputs (Diode-OR’d) via TB1 and TB2 |
| Power Connector | Phoenix® contact (MC 1.5/S-STF-3.81), quantity: 2 |
| Cable Type | Cat 5e UTP with RJ-45 connectors (8P8C) |
| Cooling Method | Convection cooled |
| Mounting Method | DIN-rail mounted (requires separate mounting clip) |
| Hazardous Location Rating | Class 1, Div 2 / Class 2, Zone 2 / ATEX |
| G3 Compliance | Yes |
| Ambient Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Dimensions (H x W x D) | 188 x 86 x 56 mm |
| Weight | 0.907 kg |
| Replacement Part Number | IS420ESWBH2A |
| Safety Rated | Non-interfering |
FAQ
FAQ
Q1: What type of network does the IS420ESWBH2A support?
A1: It supports 10/100Base-TX copper Ethernet and 100Base-FX fiber connections for real-time industrial control.
Q2: How many ports are available on the IS420ESWBH2A switch?
A2: It provides 16 copper Ethernet ports and 2 multi-mode fiber optic ports.
Q3: Is the IS420ESWBH2A suitable for use in hazardous environments?
A3: Yes, it is certified for Class 1, Div 2 / Class 2, Zone 2, and ATEX environments.
Q4: Does the switch support redundant power inputs?
A4: Yes, it has two independently powered inputs (TB1 and TB2) that are Diode-OR’d for redundancy.
Q5: Can the switch be mounted on a DIN rail?
A5: Yes, it is DIN-rail mountable using a separately purchased GE-qualified mounting clip.
Q6: What type of fiber connection does the IS420ESWBH2A use?
A6: It uses LC-type connectors for 100Base-FX multi-mode fiber ports.
Q7: What is the cooling mechanism of the switch?
A7: The switch is convection cooled, requiring no fans.
Q8: Is the IS420ESWBH2A switch considered a safety-rated device?
A8: No, it is classified as non-interfering and is not safety-rated per IEC 61508.
