Technical Specifications
| Parameter | Specification |
|---|---|

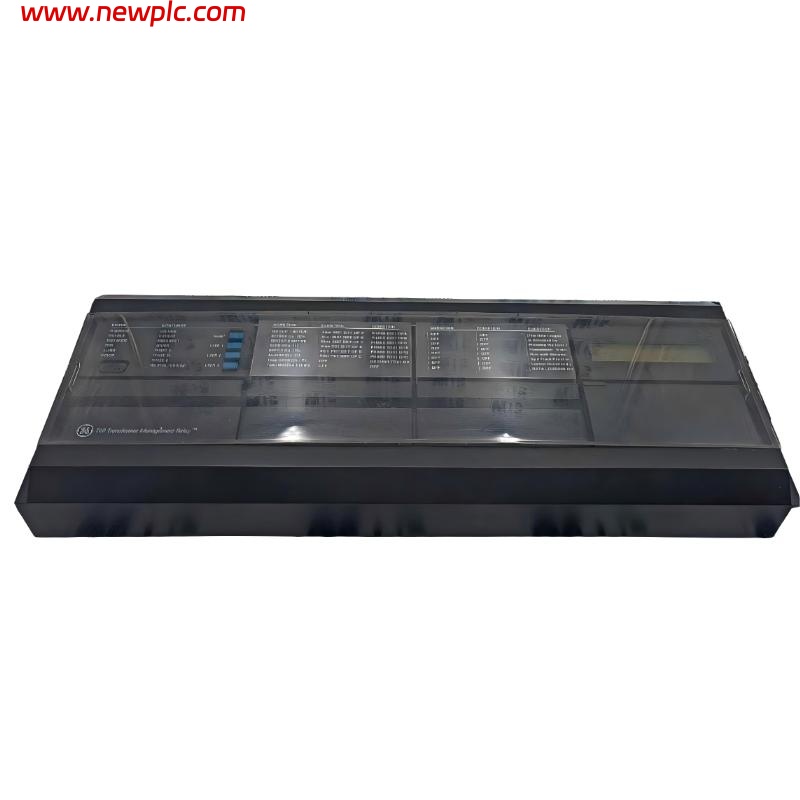

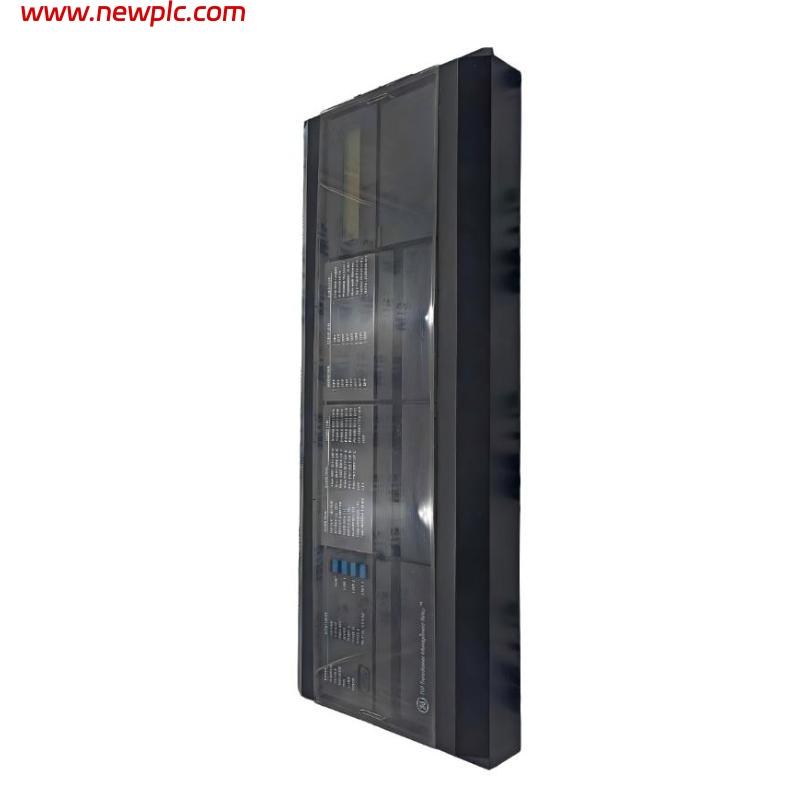

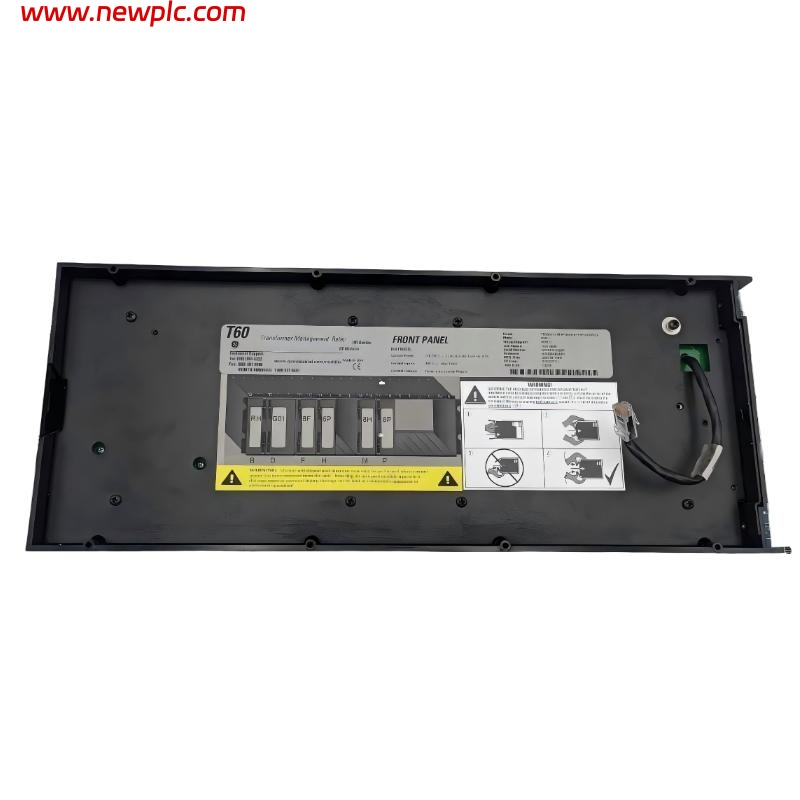

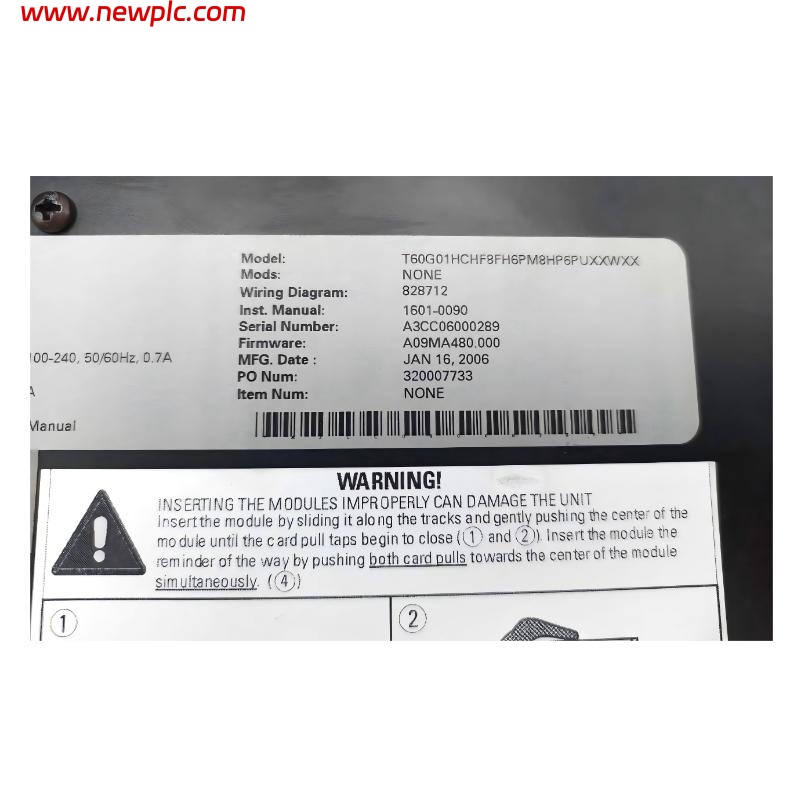

| Model | GE T60G01HCHF8FH6PM8HP6PUXXWXX |
| Product Type | Transformer Management Relay Front Panel |
| Series | GE Multilin T60 |
| Function | Local interface for transformer relay monitoring and operation |
| Display Type | Graphical LCD |
| Control Keys | Membrane function keys |
| Indicators | Programmable LED indicators |
| Mounting Method | Panel-mounted |
| Front Access | Yes |
| Interface Type | Internal relay interface |
| Housing Material | Industrial polymer |
| Operating Environment | Substation / control panel environment |
| Dimensions (W × H × D) | 260 × 200 × 35 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What is the role of this front panel in the T60 relay?
A1: It provides local access to configuration, real-time data, event logs, and status indications.
Q2: Can relay settings be modified using only the front panel?
A2: Yes, authorized users can modify parameters directly through the panel interface.
Q3: Does the panel store logs internally?
A3: No, all records are stored in the relay; the panel functions as an access terminal.
Q4: Is the display visible in bright control rooms?
A4: Yes, it uses a high-contrast LCD suitable for substation environments.
Q5: What happens if the front panel fails?
A5: The relay continues operating normally; only local interaction is affected.
Q6: Are alarm states shown directly on the panel?
A6: Yes, active alarms and trip events are indicated visually.
Q7: Does the panel support firmware updates?
A7: Firmware updates are performed via the relay system, not the panel itself.
Q8: Can the front panel be replaced independently?
A8: Yes, it can be replaced without affecting relay configuration or protection logic.
