Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |

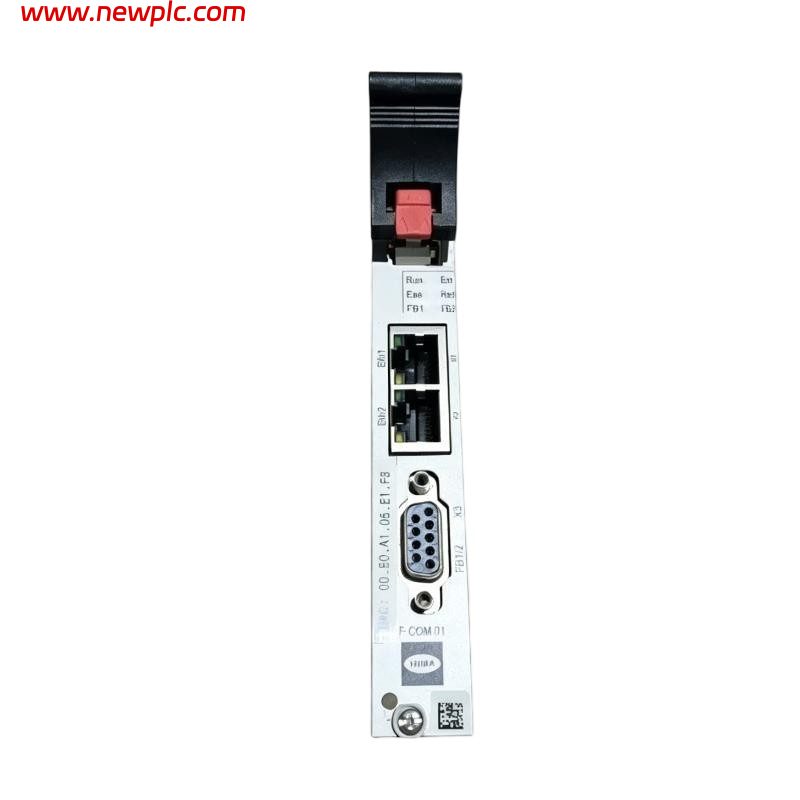

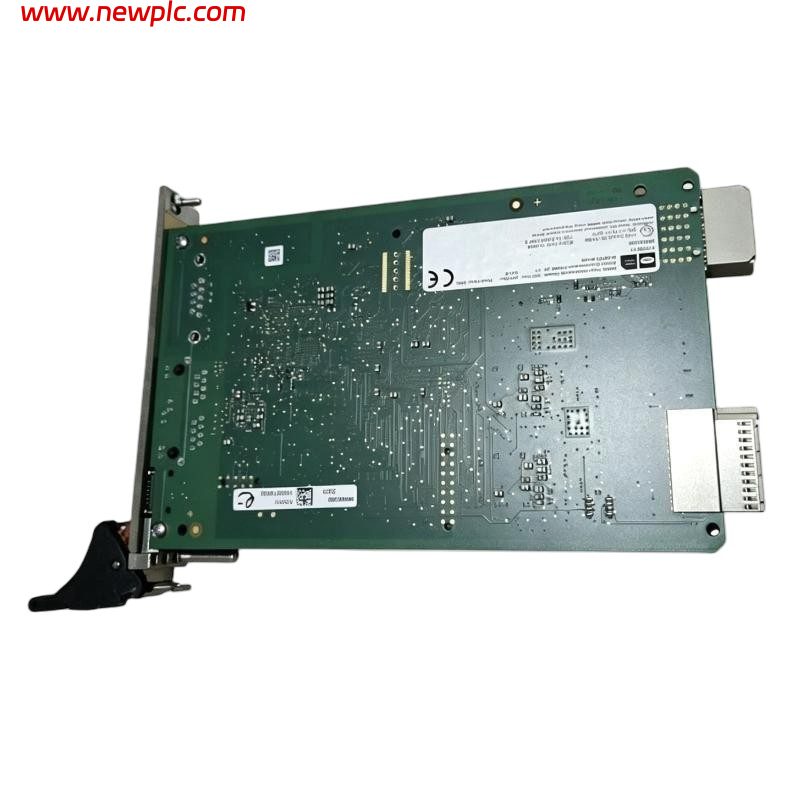

| Model | F-COM 01 |

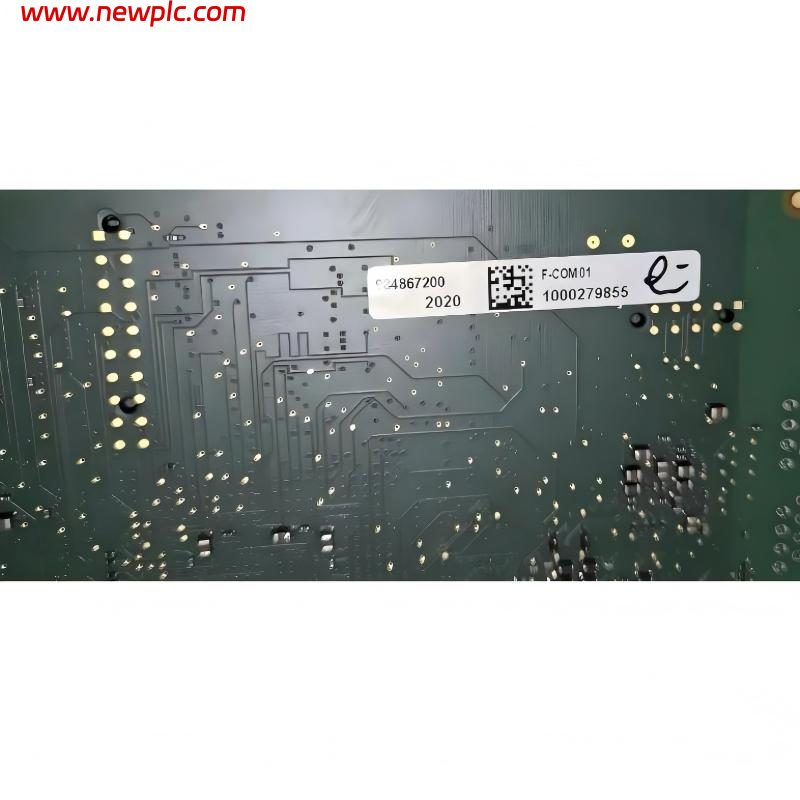

| Part Number | 984867200 |
| Product Type | Communication Module |
| System | HIMA HIQuad X |
| Main Function | Ethernet, fieldbus and serial communication |
| Ethernet Interfaces | 2 × RJ-45 |
| Serial Interface | 1 × 9-pin D-Sub |
| Serial Communication | RS-232 / RS-485 |
| Supported Protocols | SafeEthernet, HIPRO-S V2, Modbus TCP, Modbus RTU, Profibus DP Slave, SNTP |
| Communication | Safety and standard industrial protocols |
| System Bus | Sys A / Sys B |
| Supply Voltage | 24 VDC |
| Installation | HIQuad X base rack |
| Safety Level | SIL 3 |
| Protection Class | IP20 |
| Operating Temperature | 0 to +60 °C |
| Dimensions (L × W × H) | Approx. 230 × 29 × 310 mm |
| Approx. Net Weight | 1.0 kg |
FAQ
FAQ
Q1: What is HIMA F-COM 01?
A: It is a communication module for the HIMA HIQuad X safety automation system.
Q2: What is the part number?
A: The part number is 984867200.
Q3: How many Ethernet ports does it have?
A: It has 2 RJ-45 Ethernet ports.
Q4: Does it have a serial interface?
A: Yes. It has one 9-pin D-Sub interface, supporting serial communication such as RS-232/RS-485.
Q5: Which protocols are supported?
A: Depending on the configuration and licensing, it supports SafeEthernet, HIPRO-S V2, Modbus TCP, Modbus RTU, Profibus DP Slave and SNTP.
Q6: Which HIMA system does it belong to?
A: It belongs to the HIQuad X platform. It should not be confused with the X-COM 01, which is a HIMax communication module.
Q7: What are the dimensions and weight?
A: Approximately 230 × 29 × 310 mm (L × W × H) and 1.0 kg.
Q8: Is 984867200 the same as F-COM 01?
A: Yes. F-COM 01 = 984867200. HIMA’s vulnerability advisory also identifies 984867200 specifically as F-COM 01.
