Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | H7506 |
| Product Type | Bus Terminal |
| System | HIMA H41q / H51q |
| Main Function | Safety-related bus connection and termination |

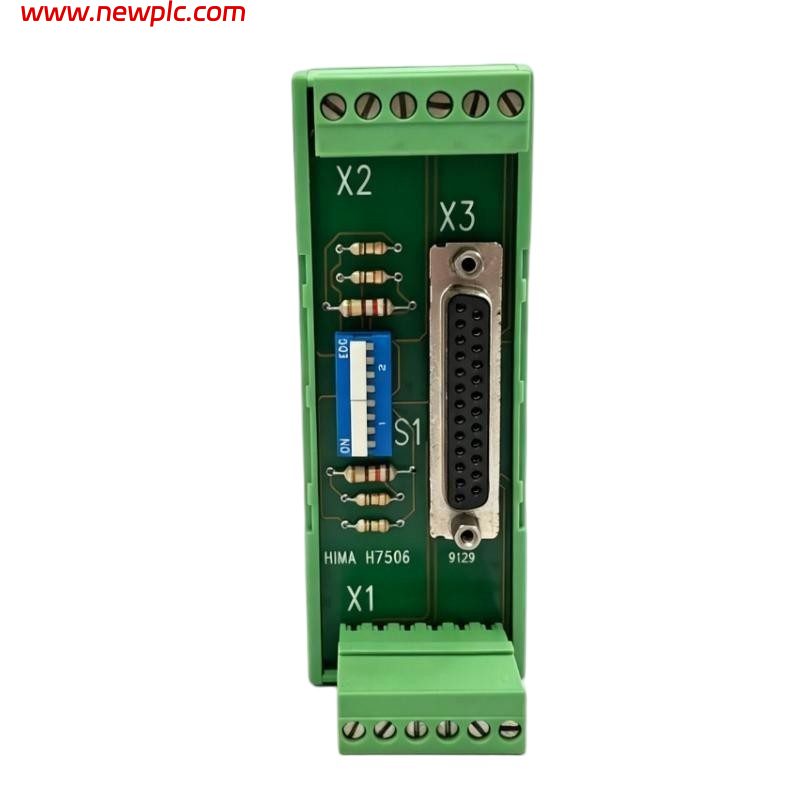

| PES Connection | 25-pole Mini-D socket |
| Compatible PES | Single-channel and redundant H41q / H51q |
| Data Cables | BV 7040 / BV 7046 |

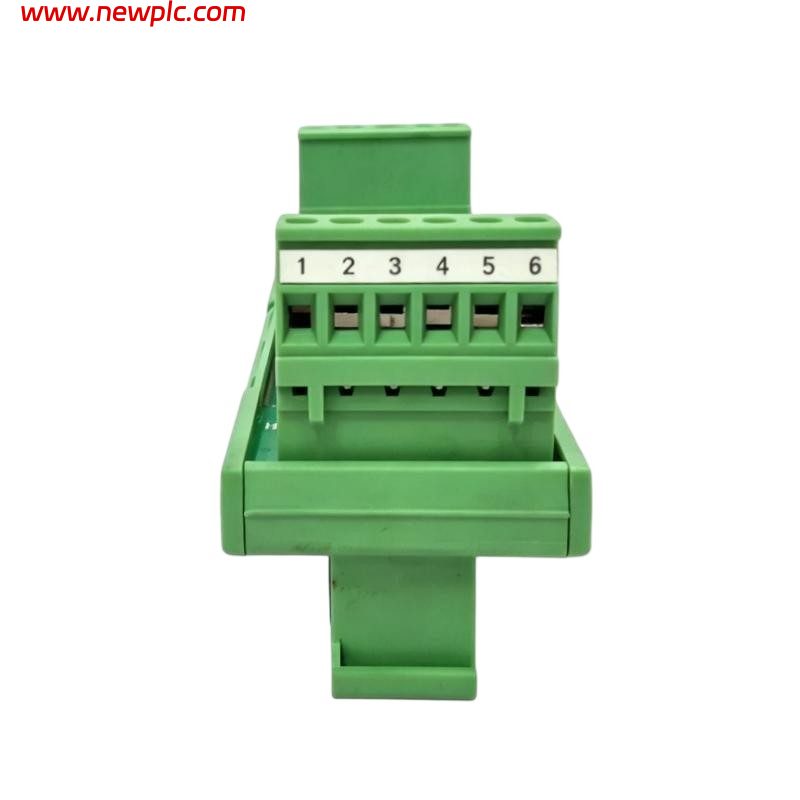

| Bus Connection | 2 × 6-pole plug terminals |
| Bus Type | 2-wire bus |
| Bus Termination | 2 × switchable terminating resistors |
| Maximum Transmission Distance | 1,200 m with 0.25 mm² cable / 2,400 m with 0.5 mm² cable |
| Loop Resistance | 180 Ω |

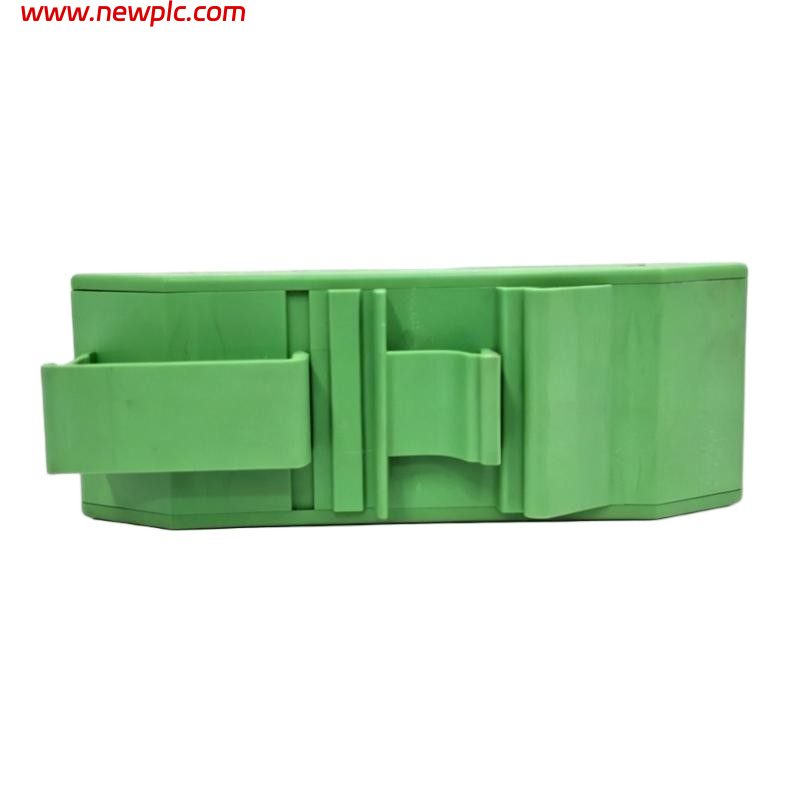

| Mounting | DIN rail |
| Protection Class | IP20 |
| Dimensions (L × W × H) | 127 × 51 × 51 mm |
| Approx. Net Weight | 0.5 kg |
FAQ
FAQ
Q1: What is HIMA H7506?
A: It is a DIN-rail bus terminal used for safety-related communication in HIMA H41q/H51q systems.
Q2: What is the main function of H7506?
A: It provides the physical connection between the HIMA PES/controller and the 2-wire bus, including bus termination.
Q3: What PES systems are compatible?
A: It supports single-channel and redundant H41q/H51q PES through the 25-pole Mini-D connector.
Q4: Which data cables are used?
A: The specified data cables are BV 7040 and BV 7046.
Q5: What is the maximum transmission distance?
A: Up to 1,200 m with 0.25 mm² wiring or 2,400 m with 0.5 mm² wiring.
Q6: Does H7506 have bus termination?
A: Yes. It has two switches for activating the bus terminating resistors at the ends of the 2-wire bus.
Q7: What are the dimensions and weight?
A: Approximately 127 × 51 × 51 mm (L × W × H) and 0.5 kg.
Q8: Is H7506 an I/O module?
A: No. It is a bus terminal/interface component, not a digital or analog I/O module.
