Technical Specifications
| Parameter | Specification |
|---|---|

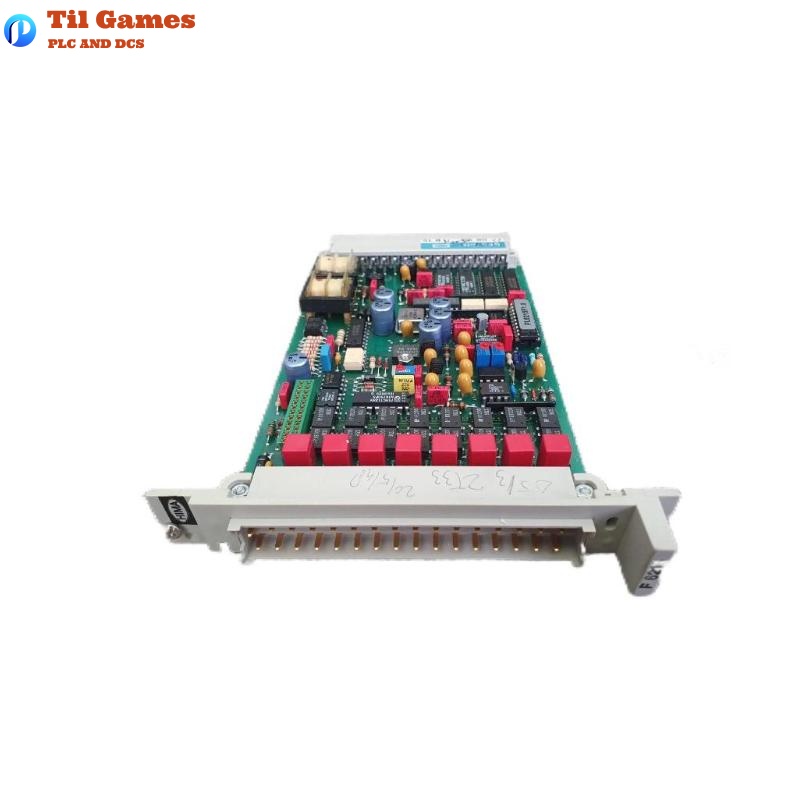

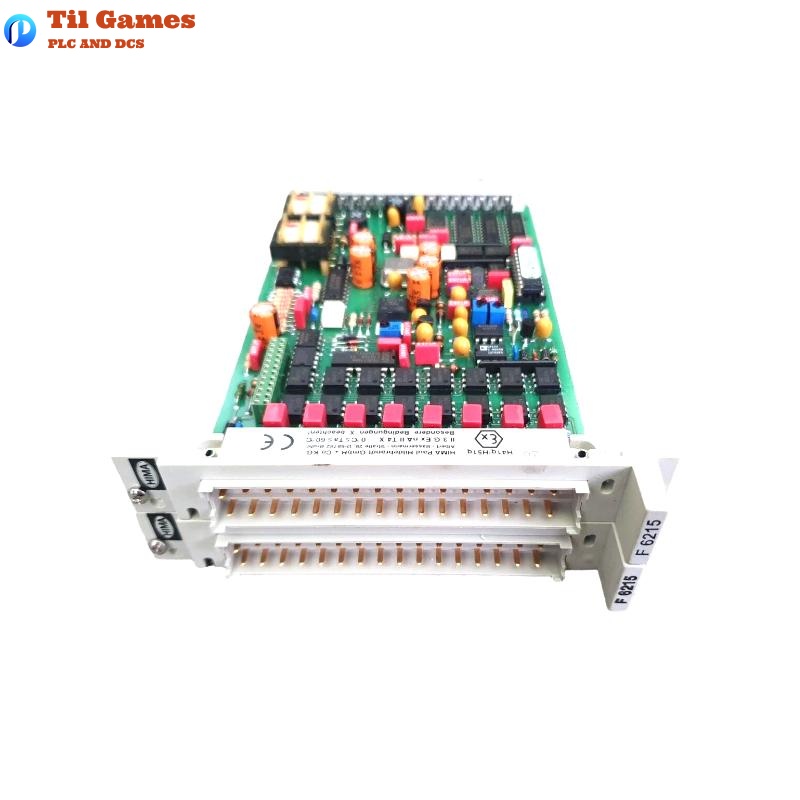

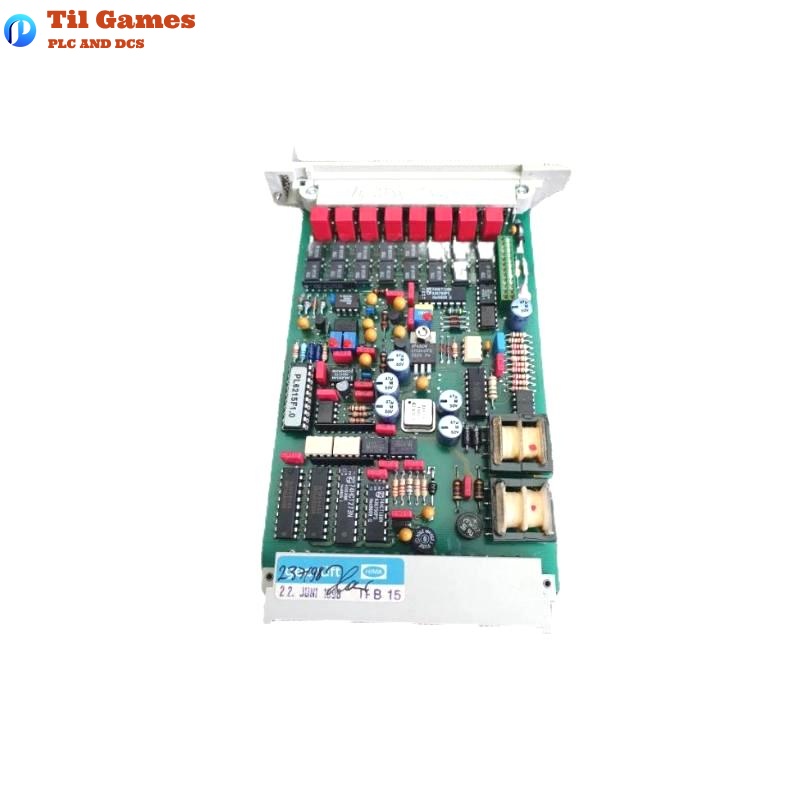

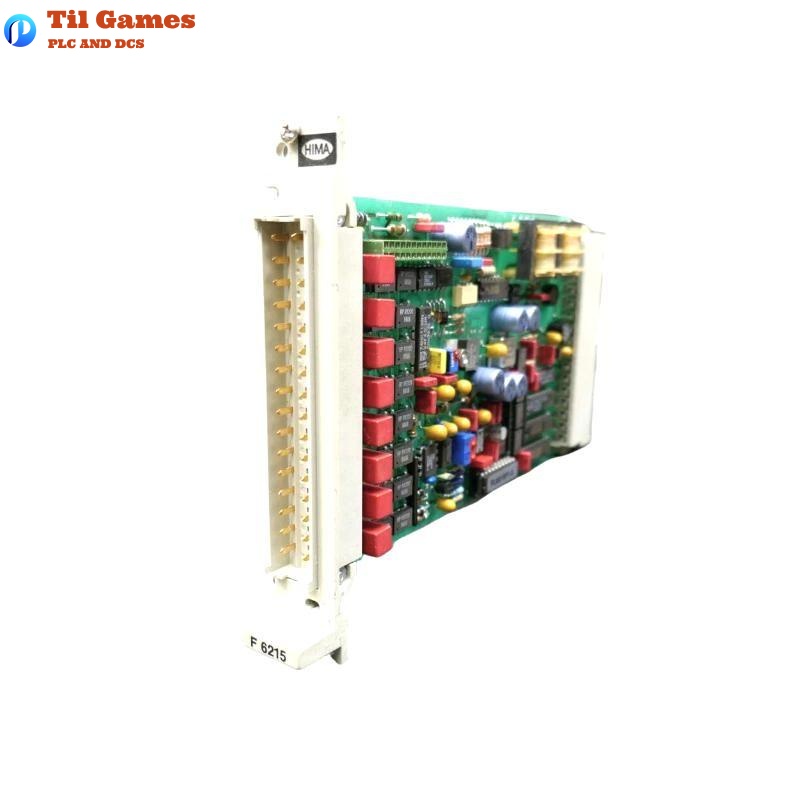

| Module Type | 8-fold Analog Input Module |
| Input Types | Voltage (0…1 V, 0…5 V, 0…10 V), Pt100 (2-, 3-, 4-wire), Current (0/4…20 mA) |
| Input Voltage Range | 0 to 1.06 V (approx. 6% overflow) |
| Digital Value Representation | 0 mV = 0, 1 V = 3840 |
| Input Resistance | ≥ 1 MΩ |
| Current Input Resistor | 50 Ω, 0.05%, 0.125 W, Temp. coefficient < 10 ppm/K |
| PT100 Measurement Current (Ik) | 2.5 mA |
| Resolution | 12-bit |
| Input Filter Time Constant | Approx. 2.2 ms |
| Conversion Time (8 Channels) | Max. 4 ms |
| Basic Error (at 25 °C) | ±0.1% |
| Operating Error (0…60 °C) | ±0.3% |
| Electrical Isolation | 200 V to Analog GND, galvanic isolation between channels |
| Power Supply Requirements | 5 V DC @ 100 mA, 24 V DC @ 140 mA |
| Space Requirement | 4 TE |
| Dimensions (W x H x D) | 151 × 77 × 113 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What types of input signals does the F6215 module support?
A1: The F6215 supports voltage (0–1 V, 0–5 V, 0–10 V), current (0/4–20 mA), and Pt100 temperature inputs.
Q2: Does the F6215 provide isolation between channels?
A2: Yes, the module offers galvanic isolation between all input channels and also between plant-side and internal electronics.
Q3: What is the resolution of the analog-to-digital conversion?
A3: The resolution of the F6215 module is 12 bits.
Q4: How fast can all 8 channels be converted?
A4: The maximum conversion time for all 8 channels is 4 milliseconds.
Q5: What is the basic measurement accuracy at room temperature?
A5: The basic error at 25 °C is ±0.1%.
Q6: Is the F6215 suitable for use with 3-wire or 4-wire Pt100 configurations?
A6: Yes, the F6215 supports 2-, 3-, and 4-wire Pt100 connections.
Q7: What precautions should be taken when using potentiometers with voltage inputs?
A7: Potentiometers must have <1% tolerance or the user program must compensate via calibration for measurement accuracy.
Q8: What are the dimensions and weight of the F6215 module?
A8: The module measures 151 × 77 × 113 mm and weighs 0.7 kg.
