Technical Specifications
| Parameter | Description |
|---|---|

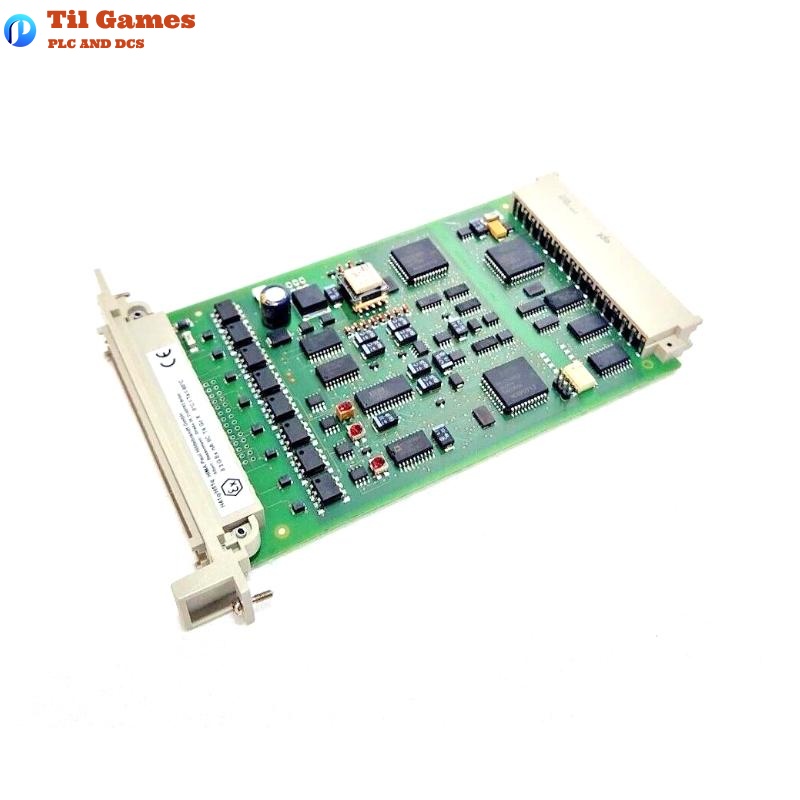

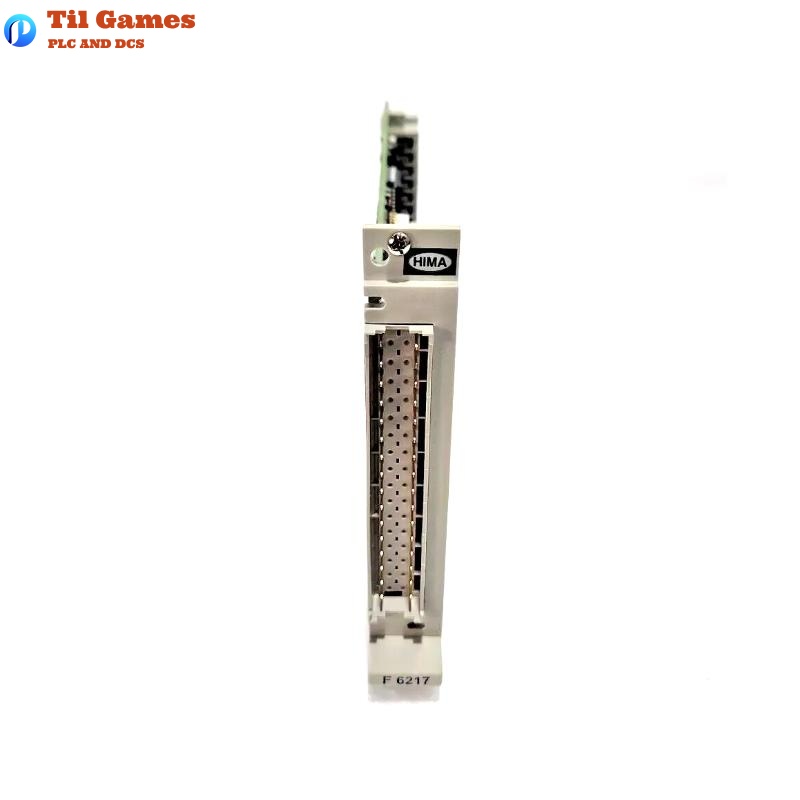

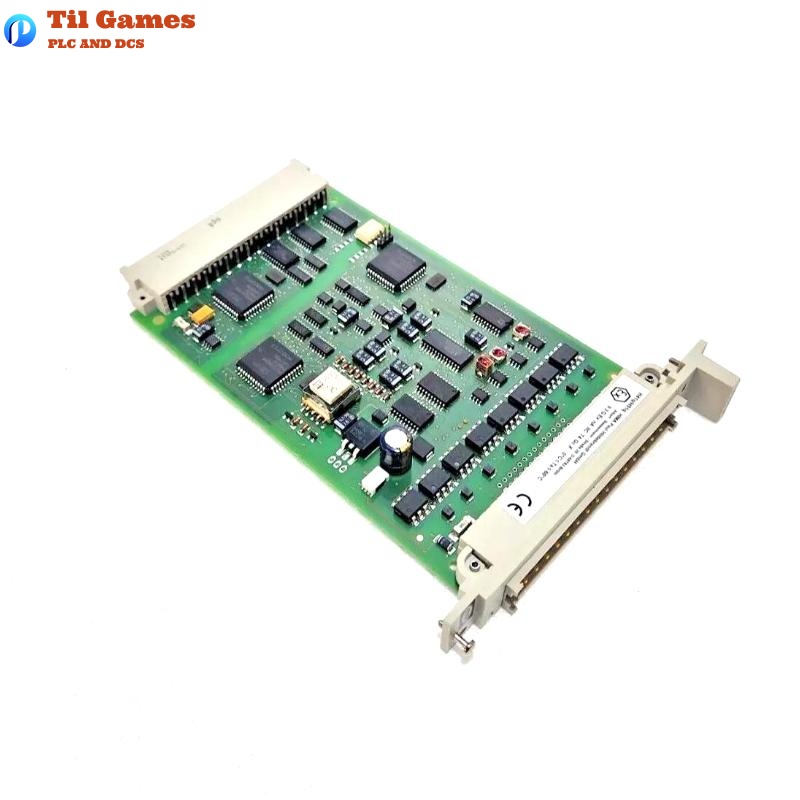

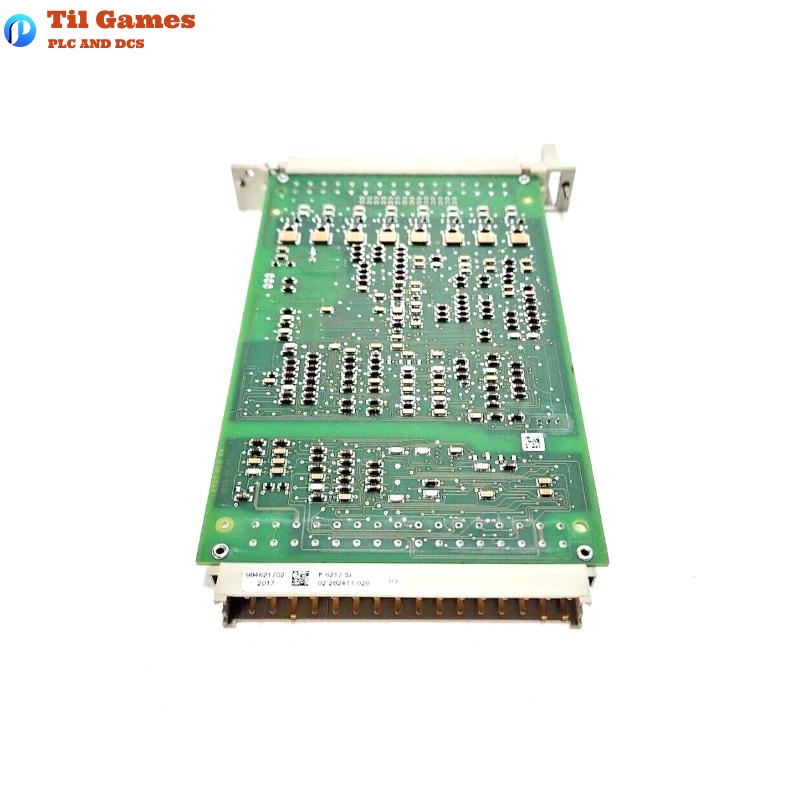

| Product Type | 8-Channel Analog Input Module (安全相关，符合 IEC 61508，SIL 3) |
| Input Types | Current: 0/4…20 mA；Voltage: 0…5 V / 0…10 V |
| Max Input Voltage | 7.5 V |
| Input Current Range | 0…22 mA (Shunt), Max. 30 mA |
| Input Voltage Range | 0…5.5 V |
| Resolution | 12-bit (4095 steps) |
| Measurand Update Rate | 50 ms |
| Safety Time | < 450 ms |
| Input Resistance | 100 kΩ |
| Time Constant of Input Filter | Approx. 10 ms |
| Basic Error (at 25°C) | 0.1% |
| Operating Error (0…60°C) | 0.3% |
| Safety Error Limit | 1% |
| Electrical Strength | 200 V against GND |
| Operating Voltage | 5 VDC / 80 mA, 24 VDC / 50 mA |
| Space Requirement | 4 SU |
| Redundancy | Redundant internal processor system |
| Dimensions | 120 x 180 x 40 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What types of analog inputs are supported by the F6217 module?
A1: It supports current inputs (0/4–20 mA) and voltage inputs (0–5 V or 0–10 V).
Q2: What is the resolution of the F6217 module?
A2: The resolution is 12-bit, allowing for a maximum digital value of 4095 per channel.
Q3: Does the module support redundancy?
A3: Yes, it includes an internal redundant processor system for safety-related functions.
Q4: What are the maximum input voltage and current per channel?
A4: Maximum input voltage is 7.5 V, and maximum current is 30 mA.
Q5: What does the safety time mean and what is its value?
A5: Safety time is less than 450 ms, indicating the maximum time to react after fault detection.
Q6: Is shielded cabling recommended for this module?
A6: Yes, shielded cables are recommended to improve noise immunity.
Q7: Does the module feature self-testing capabilities?
A7: Yes, it performs internal self-tests on A/D converters, filters, and I/O communication.
Q8: Is maintenance required for the module?
A8: No maintenance is needed; in case of failure, the module must be replaced.
