Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |

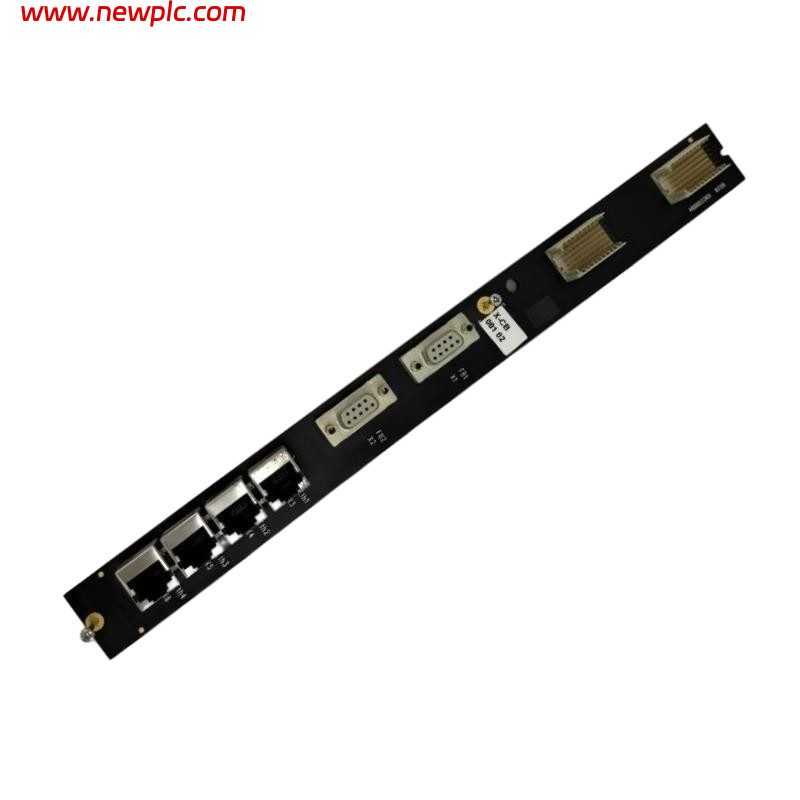

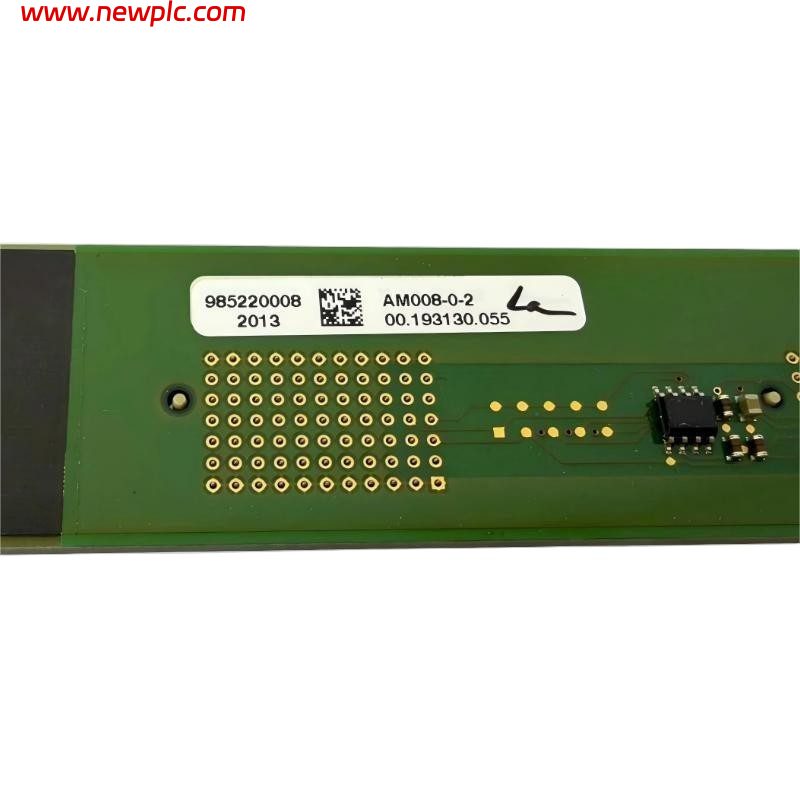

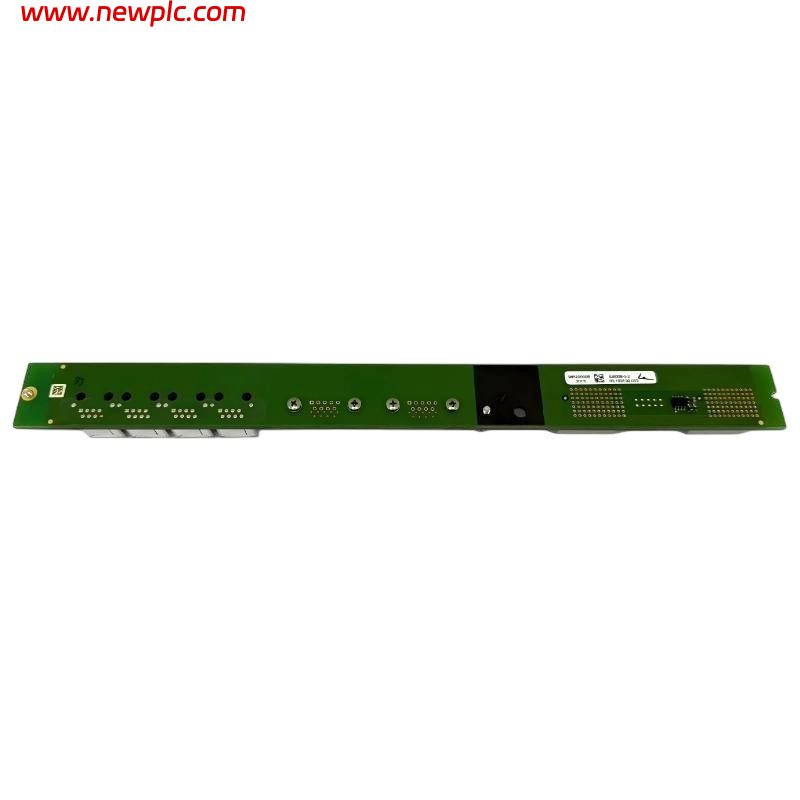

| Model | X-CB 001 02 |
| Part Number | 985020008 |
| Product Type | Connector Board |
| System | HIMA HIMax |
| Application | X-COM 01 communication module |
| Main Function | Provides Ethernet and fieldbus connections between the X-COM 01 and external systems |
| Ethernet Interfaces | 4 × Ethernet |
| Fieldbus Interfaces | 2 × Fieldbus |
| Ethernet Connectors | RJ-45 |
| Fieldbus Connectors | D-Sub |
| Installation | HIMax base plate |
| Compatible Module | X-COM 01 |
| Protection Class | IP20 |
| Dimensions (L × W × H) | Approx. 230 × 29 × 310 mm |
| Approx. Net Weight | 0.3–0.5 kg |
FAQ
FAQ
Q1: What is HIMA X-CB 001 02?
A: It is a HIMax connector board specifically designed to work with the X-COM 01 communication module.
Q2: What is the part number?
A: The part number is 985020008.
Q3: What is the main function?
A: It provides the physical connection between the X-COM 01 communication module and external Ethernet/fieldbus networks.
Q4: How many Ethernet ports does it have?
A: It provides 4 Ethernet interfaces: Eth1, Eth2, Eth3 and Eth4.
Q5: How many fieldbus interfaces are available?
A: There are 2 fieldbus interfaces, FB1 and FB2. Their actual protocol depends on the fieldbus submodules installed in the X-COM 01.
Q6: Can X-CB 001 02 be used independently?
A: It is intended to form a functional unit with the X-COM 01 and is not a standalone communication module.
Q7: What are the dimensions and weight?
A: The HIMax module format is approximately 230 × 29 × 310 mm (L × W × H). The exact net weight of the connector board alone is not clearly specified in the available documentation; 0.3–0.5 kg is a practical reference estimate.
Q8: Is X-CB 001 02 the same as X-CB 001 01?
A: No. They are different connector-board versions. X-CB 001 02 is specifically associated with the X-COM 01 communication module, while X-CB 001 01 is used for a different HIMax configuration.
