Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |

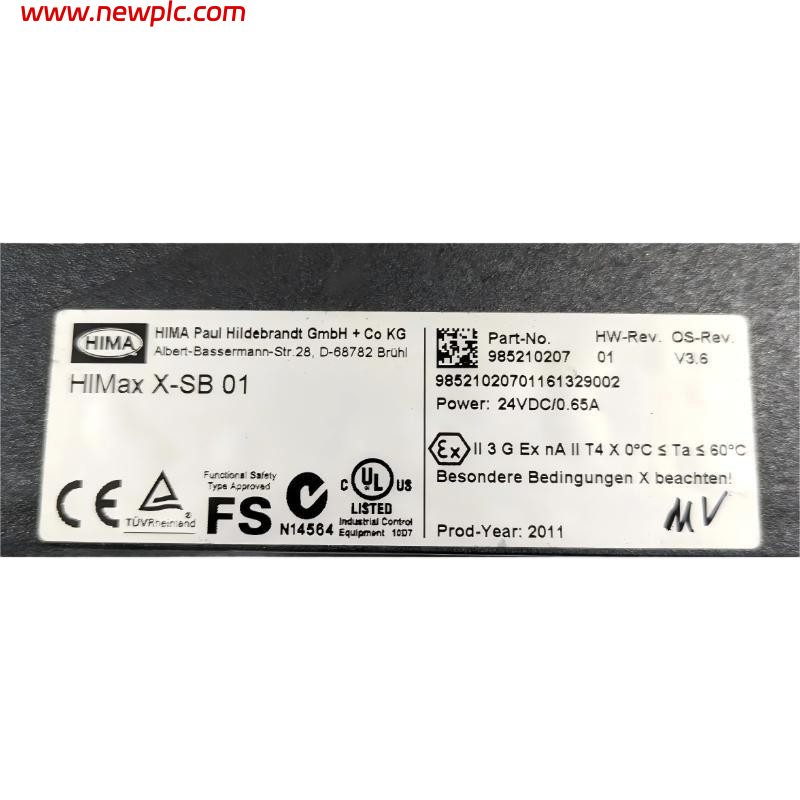

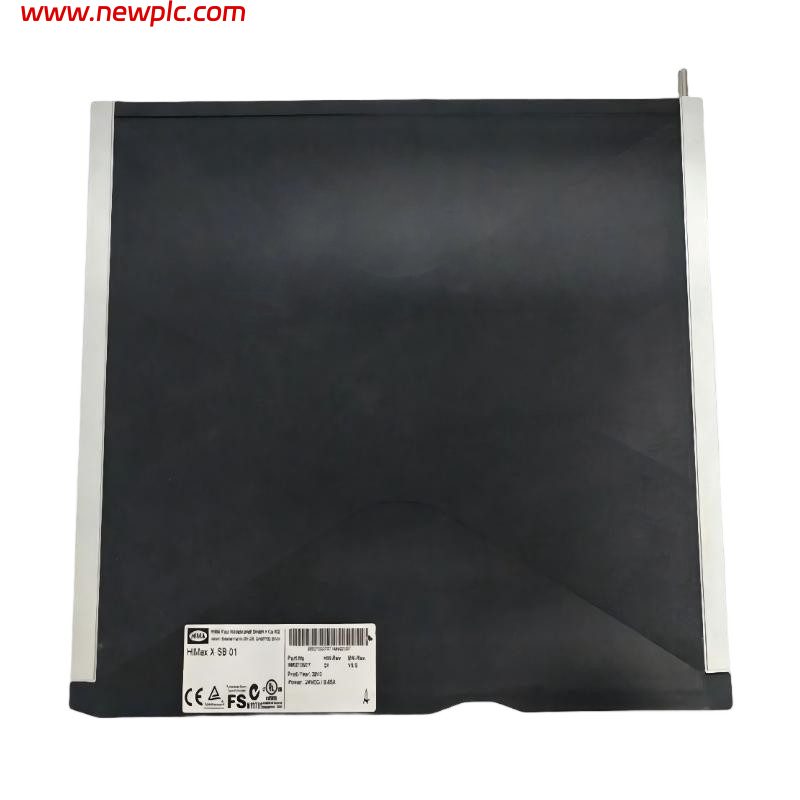

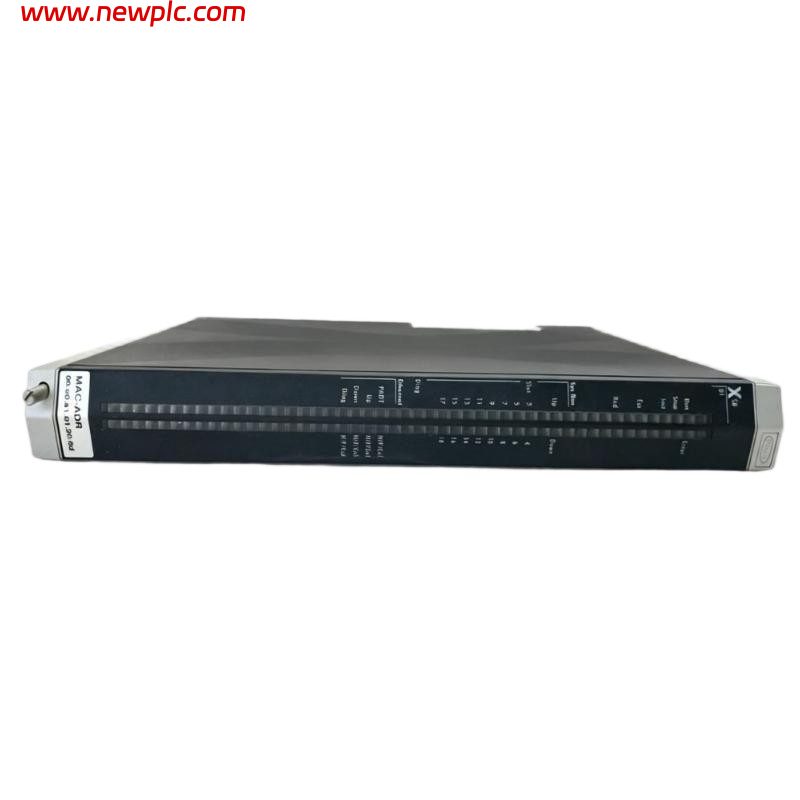

| Model | X-SB 01 |
| Part Number | 985210207 |
| Product Type | System Bus Module |
| System | HIMA HIMax |
| Main Function | System bus communication and module interconnection |
| Bus Architecture | Single or redundant dual-system-bus operation |
| Power Supply | 24 VDC |
| Max. Current Consumption | 0.65 A |
| Installation Position | HIMax base plate Slot 1 / Slot 2 |
| Communication | Internal HIMax system bus |
| Protection Class | IP20 |
| Safety Level | SIL 3 |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Dimensions (L × W × H) | 230 × 29.2 × 310 mm |
| Approx. Net Weight | 1.2 kg |
| Country of Origin | Germany |
FAQ
FAQ
Q1: What is HIMA X-SB 01?
A: It is the System Bus Module used in the HIMA HIMax safety automation system.
Q2: What is the part number?
A: The part number is 985210207.
Q3: What is the main function of X-SB 01?
A: It establishes the internal system-bus connection between HIMax modules and manages communication within the safety controller system.
Q4: Where is X-SB 01 installed?
A: It can only be installed in Slot 1 or Slot 2 of the HIMax base plate.
Q5: Does it support redundant operation?
A: Yes. Two X-SB 01 modules can provide redundant dual-system-bus operation, improving system availability.
Q6: What is the power supply?
A: 24 VDC, with maximum current consumption of approximately 0.65 A.
Q7: What are the dimensions and weight?
A: Approximately 230 × 29.2 × 310 mm (L × W × H) and 1.2 kg.
Q8: Is X-SB 01 an I/O module?
A: No. It is a system bus module, responsible for the internal communication infrastructure of the HIMax system rather than direct field signal acquisition or output.
