Technical Specifications
| Parameter | Specification |
|---|---|

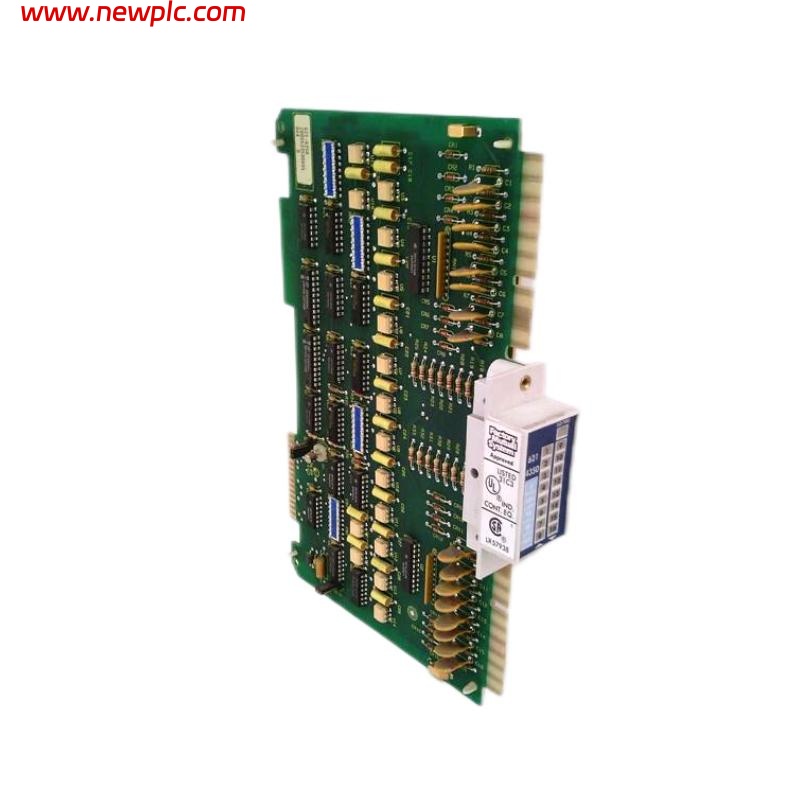

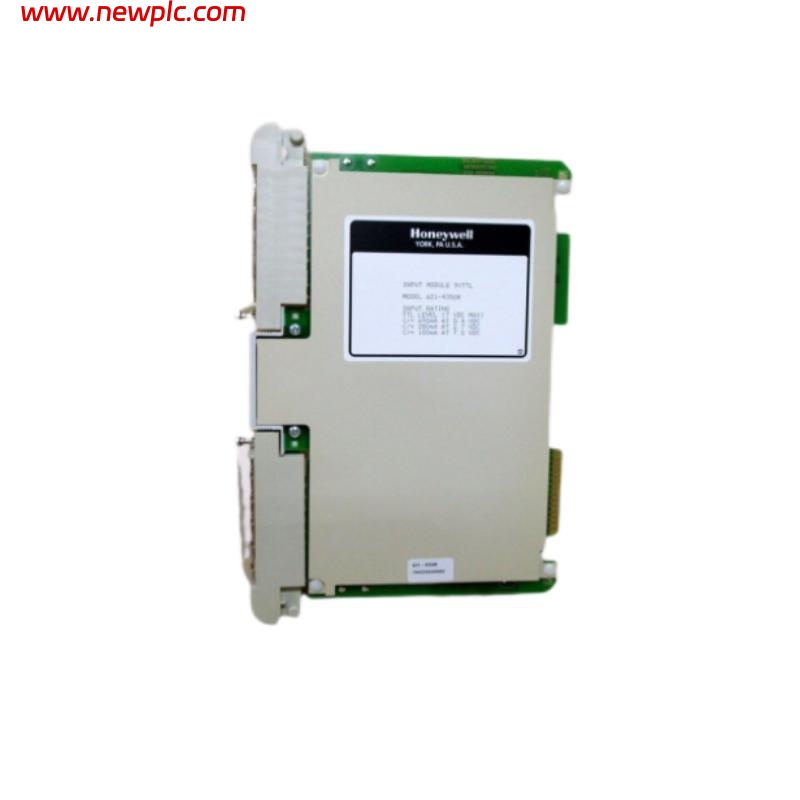

| Model | Honeywell 621-4350 Input Module |
| Input Type | Analog Input / Digital Input (configurable) |
| Input Channels | 8 channels |
| Input Range | 0–20 mA / 4–20 mA / 0–10 V (selectable) |
| Resolution | 12-bit to 16-bit (depending on configuration) |
| Accuracy | ±0.1% of full scale |
| Response Time | < 10 ms |
| Power Supply | 24 VDC nominal |
| Power Consumption | 3.5 W typical |
| Isolation | 1500 V RMS channel-to-bus isolation |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (mm) | 118 x 47 x 94 mm |
| Weight (kg) | 0.25 kg |
| Mounting | DIN rail / Rack mount |
| Communication Bus | Honeywell proprietary I/O bus |
FAQ
FAQ
Q1: What type of signals can the 621-4350 Input Module process?
A1: It can process both analog (0–20 mA, 4–20 mA, 0–10 V) and digital input signals, depending on the configuration.
Q2: How many input channels does the module support?
A2: It supports up to 8 independent input channels.
Q3: What is the resolution capability of this module?
A3: The module provides between 12-bit and 16-bit resolution depending on the input configuration.
Q4: Is the module electrically isolated?
A4: Yes, it has 1500 V RMS isolation between input channels and the communication bus.
Q5: What is the typical response time for input updates?
A5: The response time is typically less than 10 milliseconds.
Q6: What environments is the module designed to operate in?
A6: It operates reliably between 0 °C and +60 °C and can be stored between -40 °C and +85 °C with 5–95% non-condensing humidity.
Q7: How is the module powered?
A7: The module uses a nominal 24 VDC power supply with a typical consumption of 3.5 W.
Q8: What mounting options are available?
A8: The module can be mounted on a DIN rail or integrated into a rack system.
