Technical Specifications
| Parameter | Description |
|---|---|

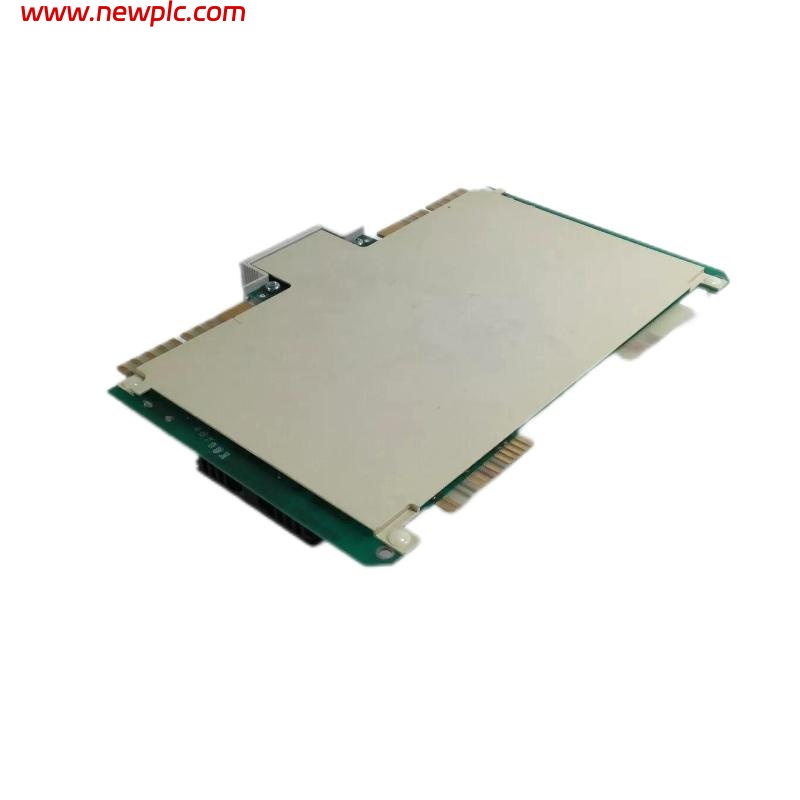

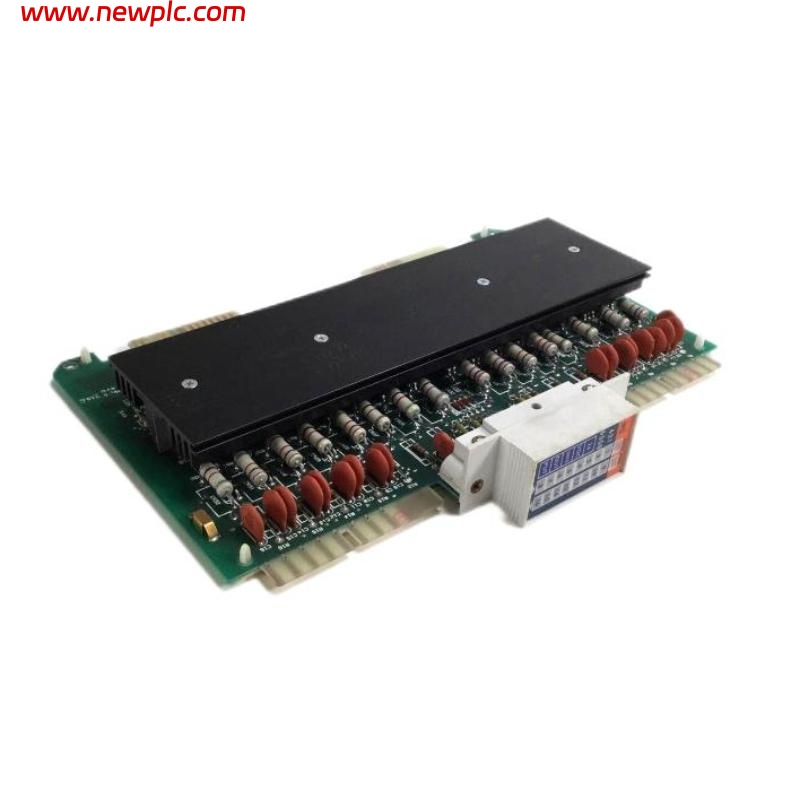

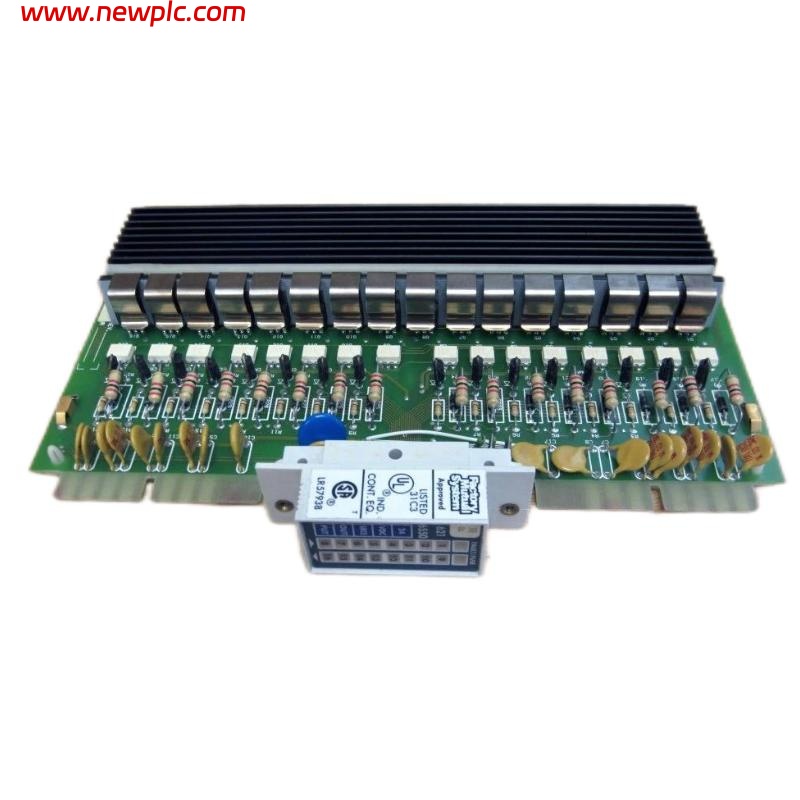

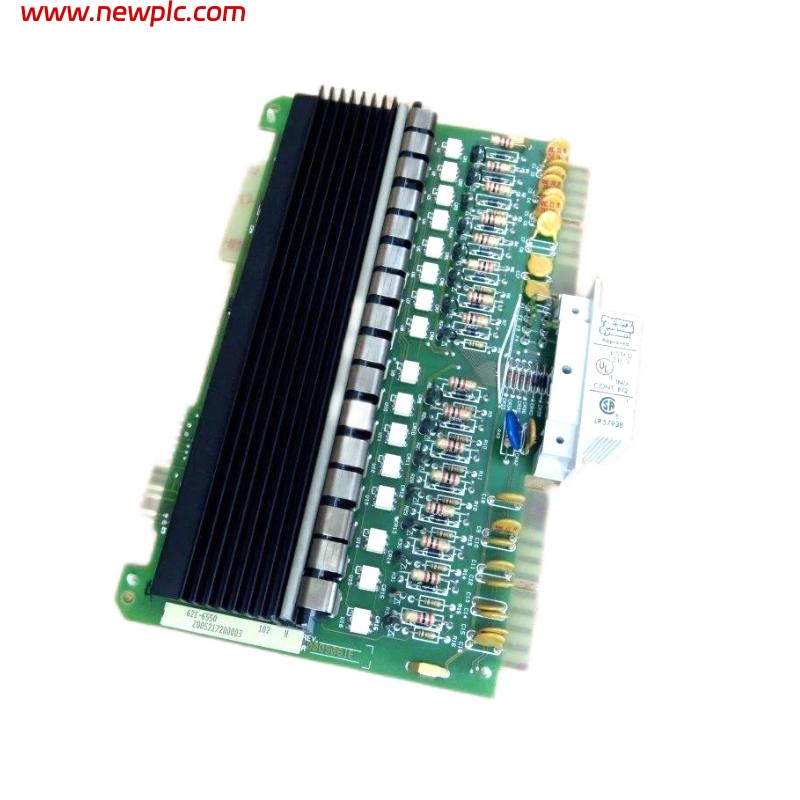

| Model | Honeywell 621-6550 Digital Output Module |
| Type | Digital Output Module |
| Channels | 16 channels |
| Output Type | Current Sourcing |
| Output Voltage | 24 VDC (nominal) |
| Max Output Current | 0.5 A per channel |
| Isolation Voltage | 1500 VDC |
| Response Time | < 1 ms |
| Operating Temp | 0 to 60 ℃ |
| Dimensions | 158 x 98 x 30 mm |
| Weight | 0.66 kg |
| Mounting | Rack-mounted (slot installation) |
| Interface Type | Terminal block connection |
| Power Supply | 5 VDC (logic), 24 VDC (load) |
FAQ
FAQ
Q1: How many digital output channels does the module support?
A1: It supports 16 independent digital output channels.
Q2: What is the maximum current per output channel?
A2: Each channel can handle up to 0.5 A.
Q3: What is the output voltage of the module?
A3: The nominal output voltage is 24 VDC.
Q4: Does the module provide channel-to-channel isolation?
A4: Yes, it offers 1500 VDC isolation protection.
Q5: What is the response time of the outputs?
A5: The response time is less than 1 millisecond.
Q6: How is the module installed?
A6: It is installed using a rack slot mounting method.
Q7: What power supply does the module require?
A7: It requires 5 VDC for logic and 24 VDC for the load.
Q8: What is the operating temperature range?
A8: The module operates reliably between 0 and 60 ℃.
