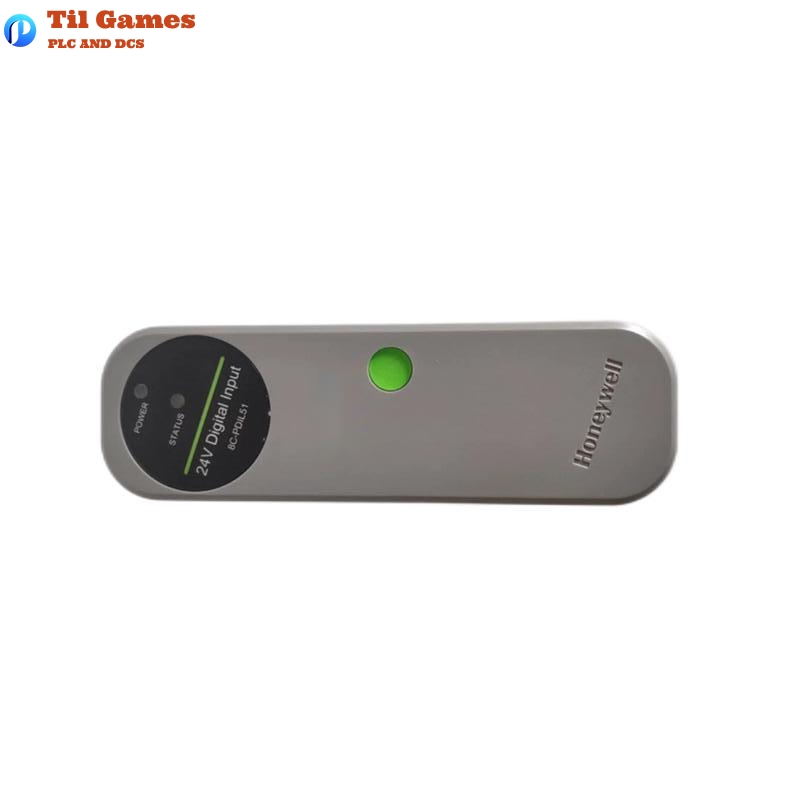

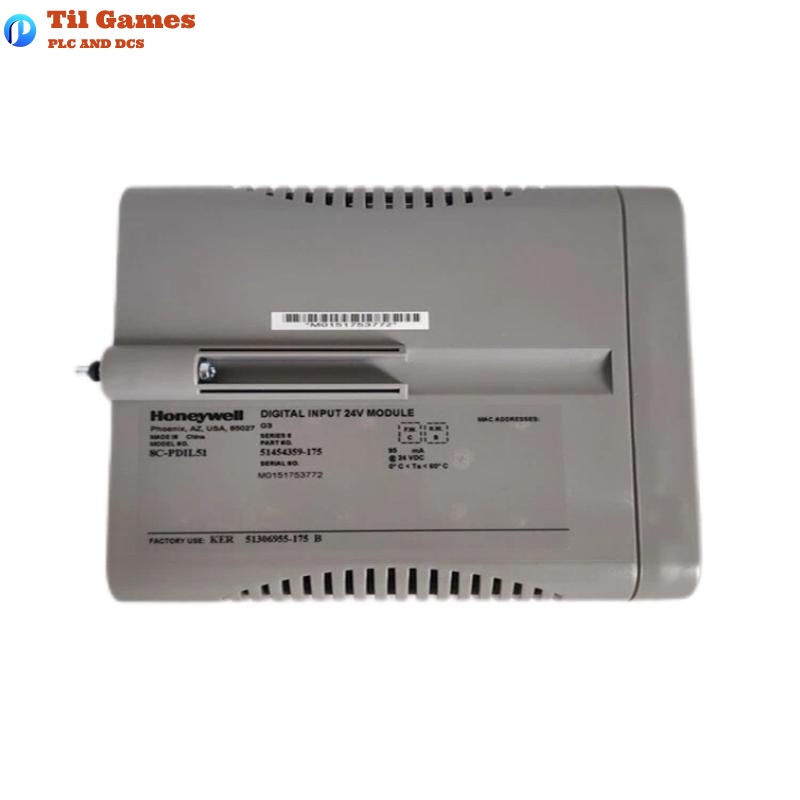

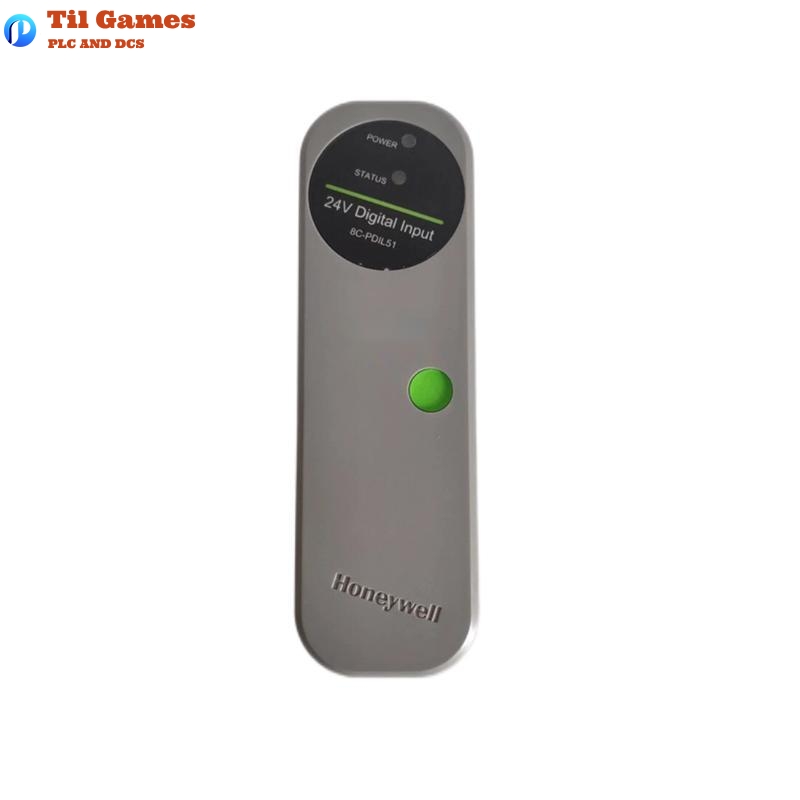

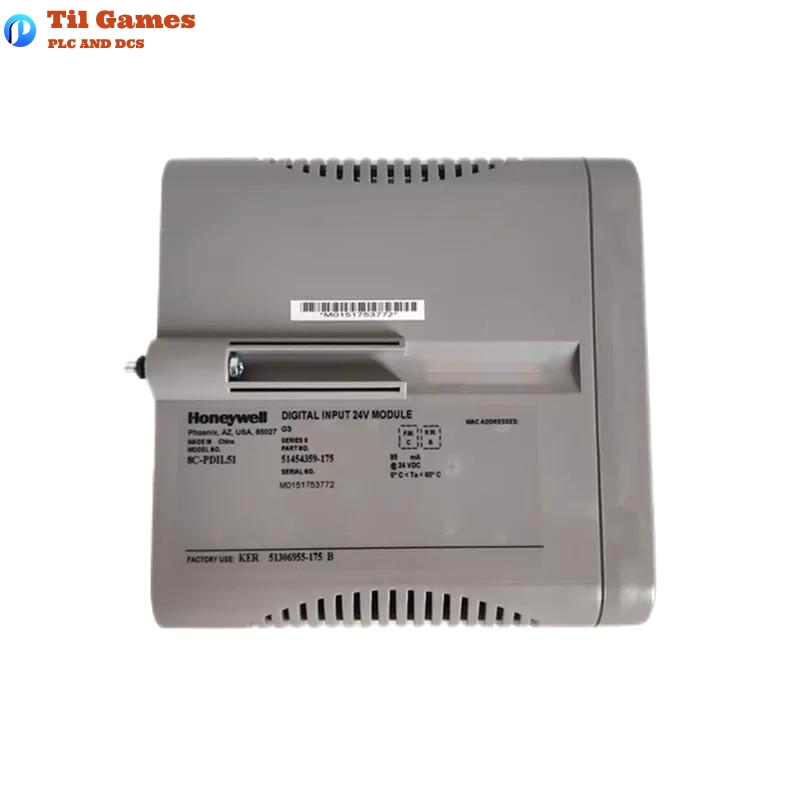

Honeywell 8C-PDIL51 51454359-175 Digital Input Module

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range for the 8C-PDIL51 module?
A1: The module accepts 18 to 30 VDC input signals.

Q2: How many input channels does this module support?
A2: It supports 32 digital input channels.

Q3: Does the 8C-PDIL51 module support open wire detection?
A3: No, this module does not support open wire detection.

Q4: What type of isolation is used in this module?
A4: Optical isolation with 1000 VAC RMS protection.

Q5: What are the ON and OFF state thresholds for voltage and current?
A5: ON state: ≥13 VDC or ≥3 mA; OFF state: ≤5 VDC or ≤1.2 mA.

Q6: Can the module operate with either internal or external field power?
A6: Yes, it supports both internal and external power supply configurations.

Q7: What is the input impedance of each channel?
A7: The input impedance per channel is 4.2 kΩ.

Q8: What is the module’s delay time across input filter and isolation?
A8: The delay is specified as 5 ms ± 20%.

51454359-175 8C-PDIL51 Digital Input Module Honeywell
