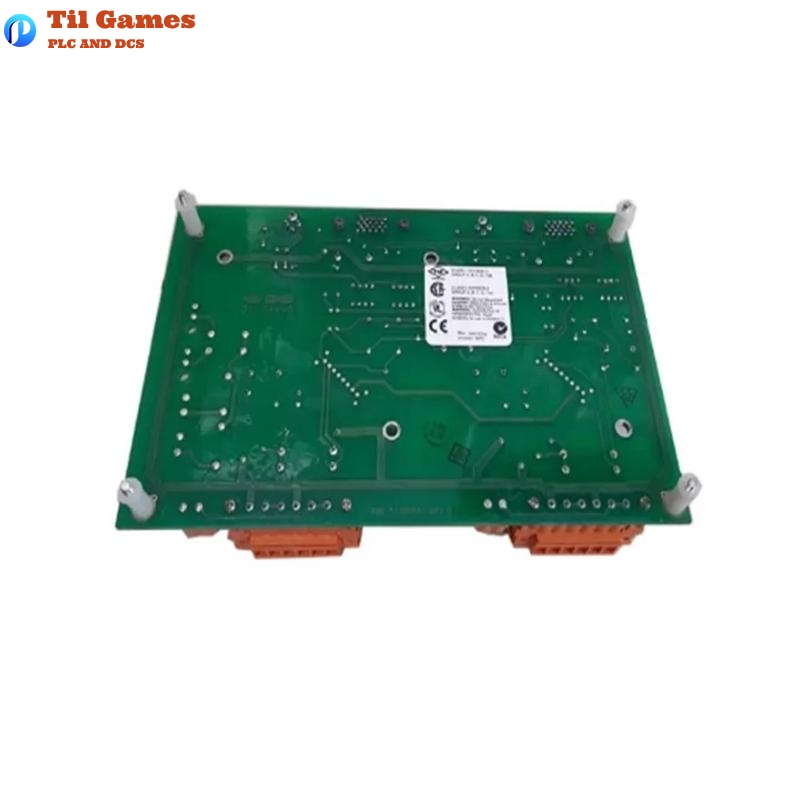

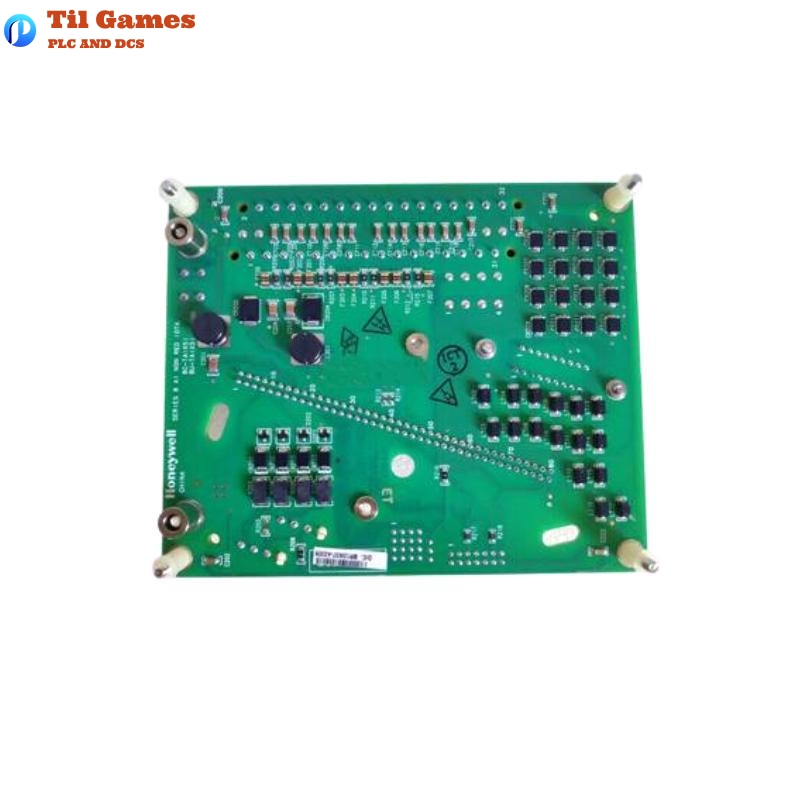

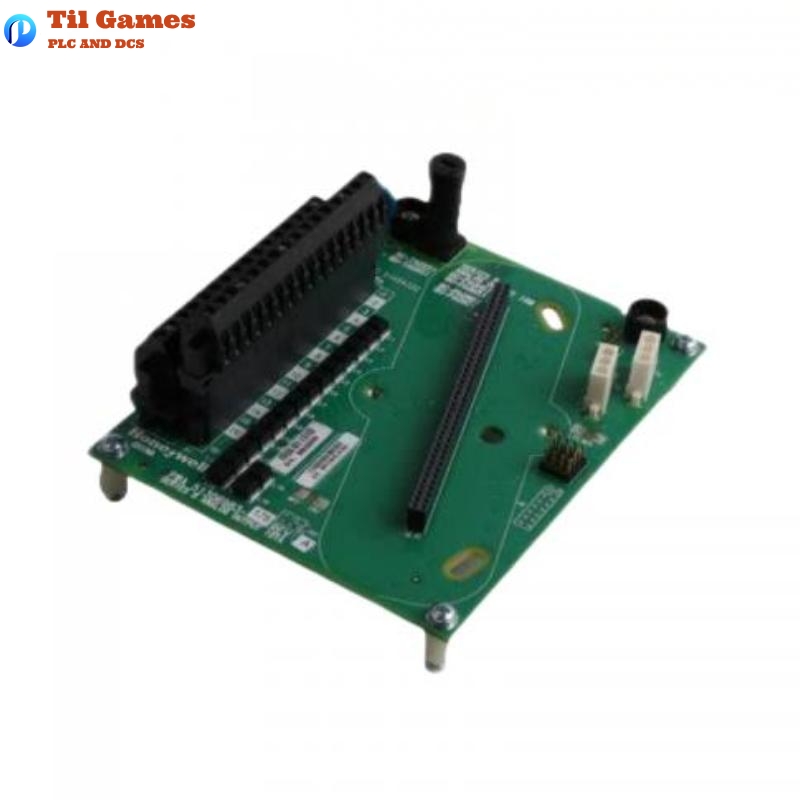

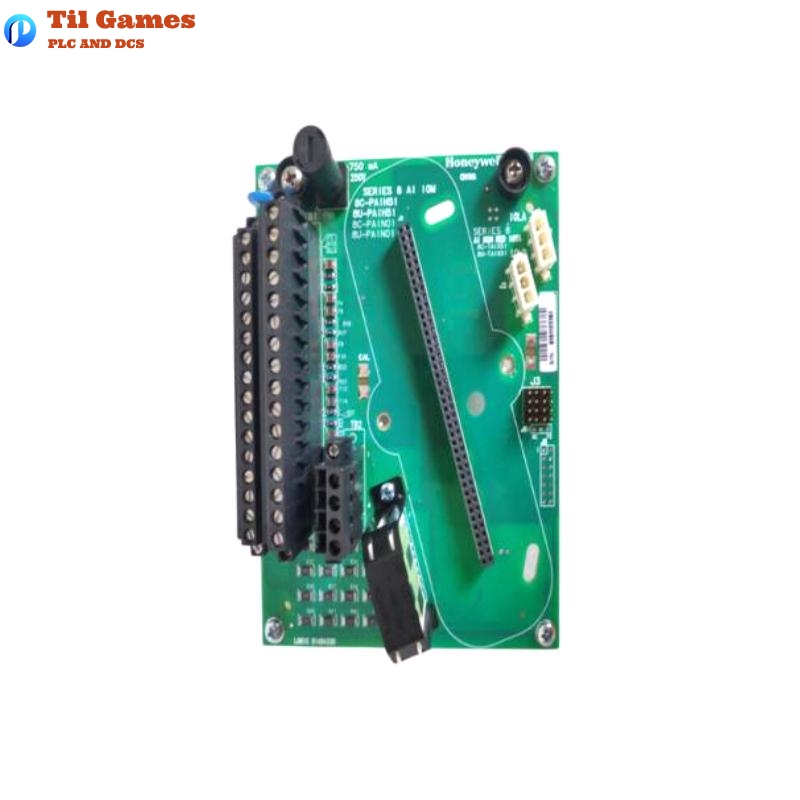

Honeywell 8C-TAOX51 51306983-175 Analog Output Module

FAQ – Honeywell 8C-TAOX51 Analog Output Module

Q1: What type of output signal does the 8C-TAOX51 support?
A1: It supports 4–20 mA current loop output per channel.

Q2: How many channels does the module provide?
A2: The module provides 16 analog output channels.

Q3: Is open-wire detection supported?
A3: Yes, it includes open-wire detection with channel soft failure indication.

Q4: Can the output behavior be configured upon failure?
A4: Yes, the FAILOPT setting allows each channel to either hold the last value or shed to a safe value.

Q5: What is the module’s response time?
A5: The output settles within 80 milliseconds to within 1% of the final value.

Q6: What is the resolution and accuracy of the output?
A6: The resolution is ±0.05% of full scale and calibrated accuracy is ±0.35% at 25°C.

Q7: Does it require an external power supply for field devices?
A7: No external user-supplied power is required for non-incendive output.

Q8: What is the physical size and weight of the 8C-TAOX51?
A8: Dimensions are 51 x 267 x 178 mm and it weighs 0.5 kg.

51306983-175 8C-TAOX51 Analog Output Module Honeywell
