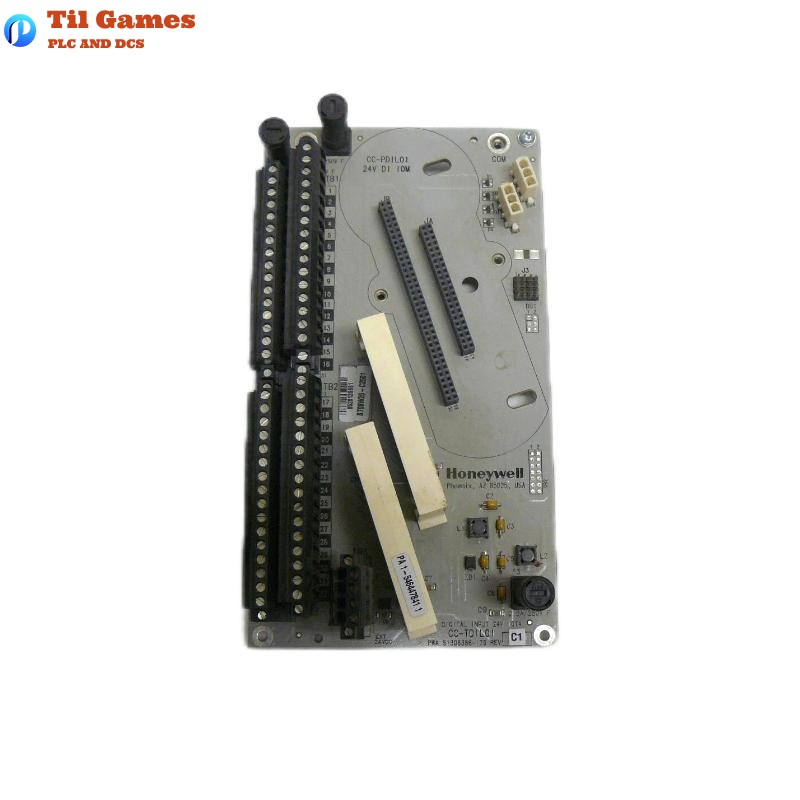

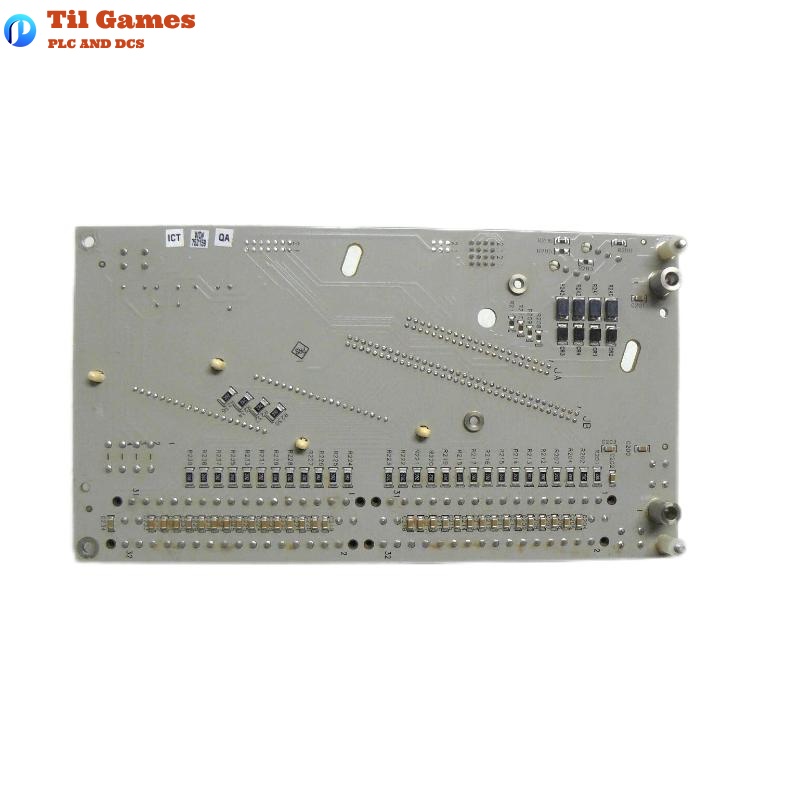

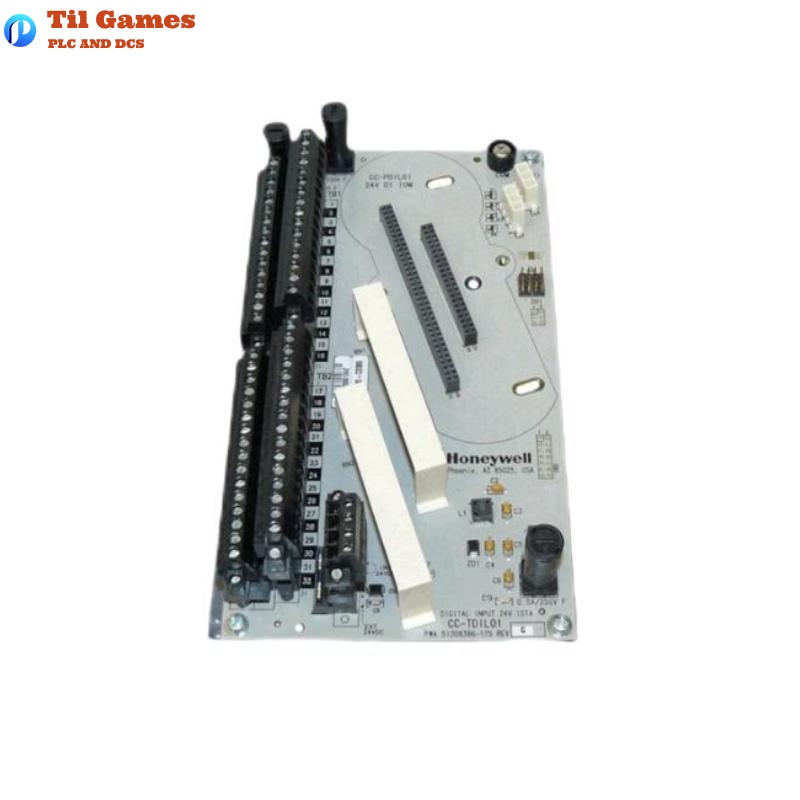

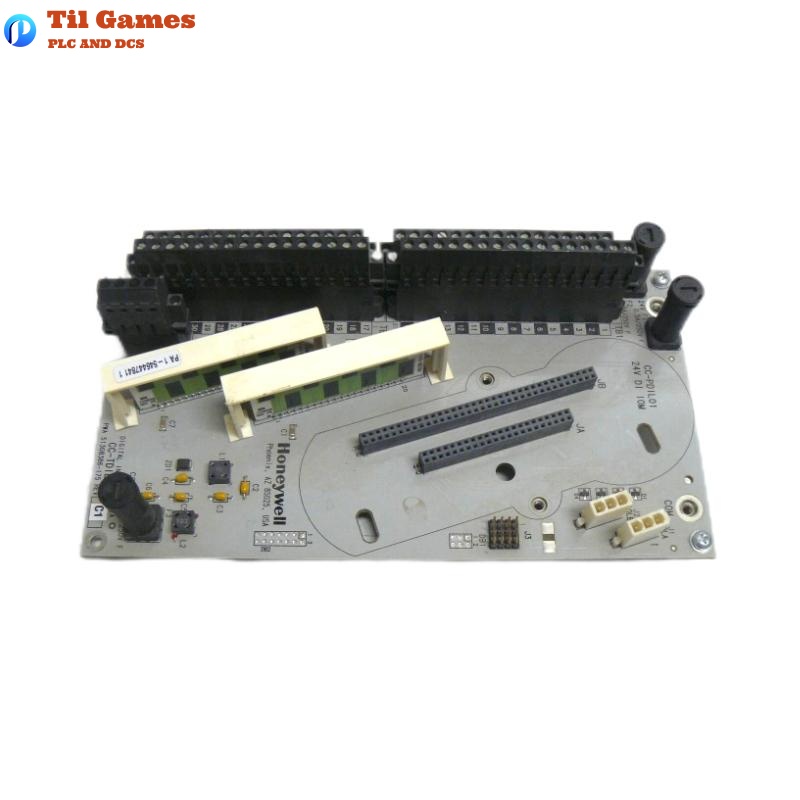

Honeywell 8C-TDIL01 51306856-175 Digital Input Module

Frequently Asked Questions (FAQ)

Q1: How many digital input channels does the 8C-TDIL01 module support?
A1: It supports 32 digital input channels.

Q2: What is the operating voltage range of this module?
A2: The input voltage range is from 18 VDC to 30 VDC.

Q3: Does the module provide electrical isolation?
A3: Yes, it features optical isolation rated at 1500 VAC RMS or ±1500 VDC.

Q4: Does this module support open wire detection?
A4: Yes, the 8C-TDIL01 supports open wire detection for fault diagnostics.

Q5: What is the minimum current required to detect an ON state?
A5: At least 3 mA is required for the input to be sensed as ON.

Q6: What is the input impedance per channel?
A6: The input impedance is 4.2 kΩ per channel.

Q7: Is redundancy supported by this module?
A7: Yes, it can be used with redundant IOTAs such as the CC-TDIL11.

Q8: What are the physical dimensions and weight of the module?
A8: The module measures 220 x 120 x 30 mm and weighs 0.55 kg.

51306856-175 8C-TDIL01 Digital Input Module Honeywell
