Technical Specifications
| Parameter | Specification |
|---|---|

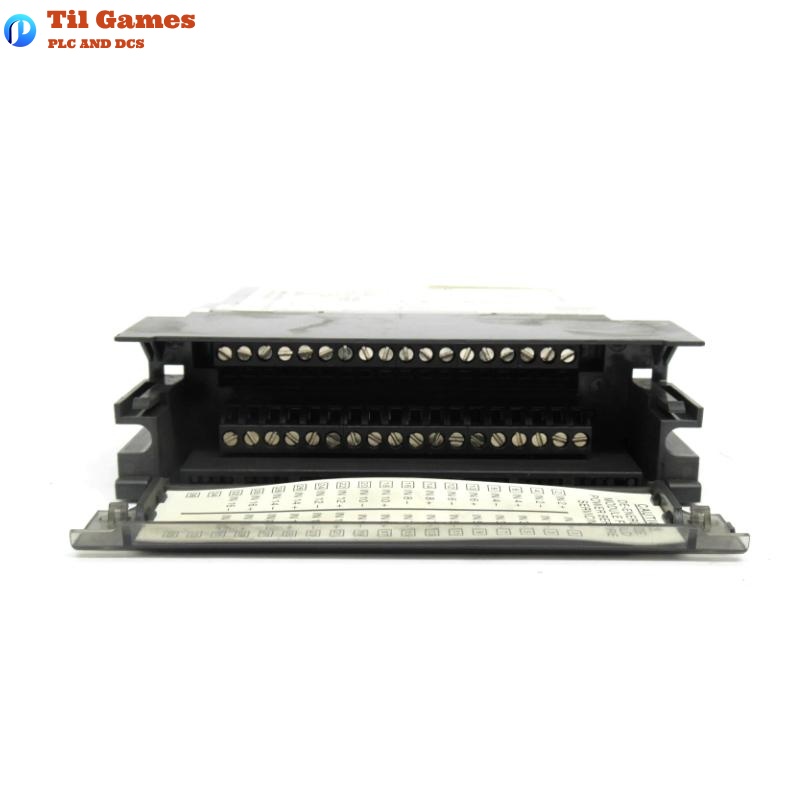

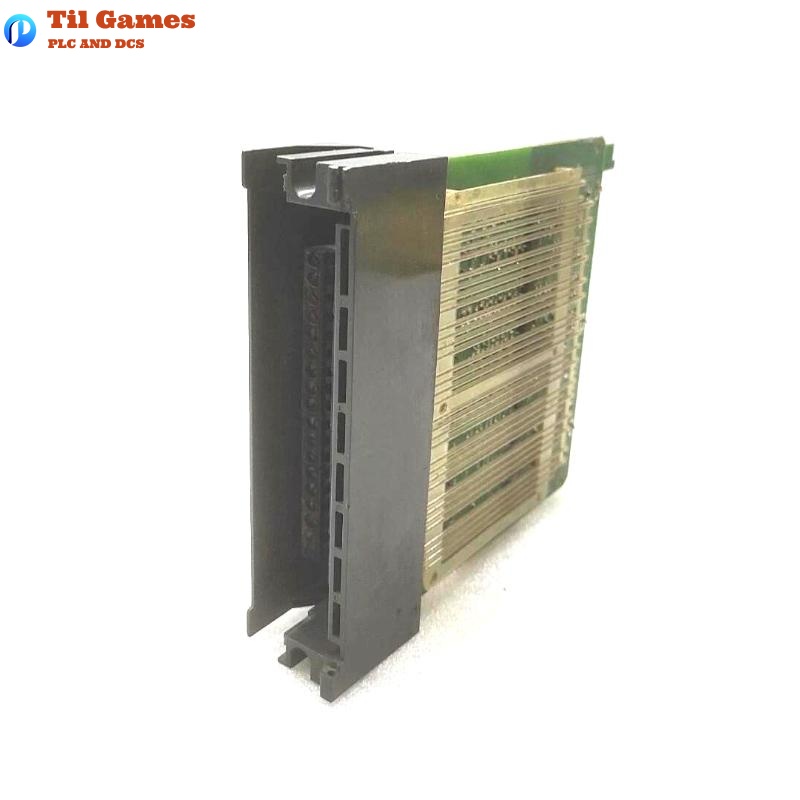

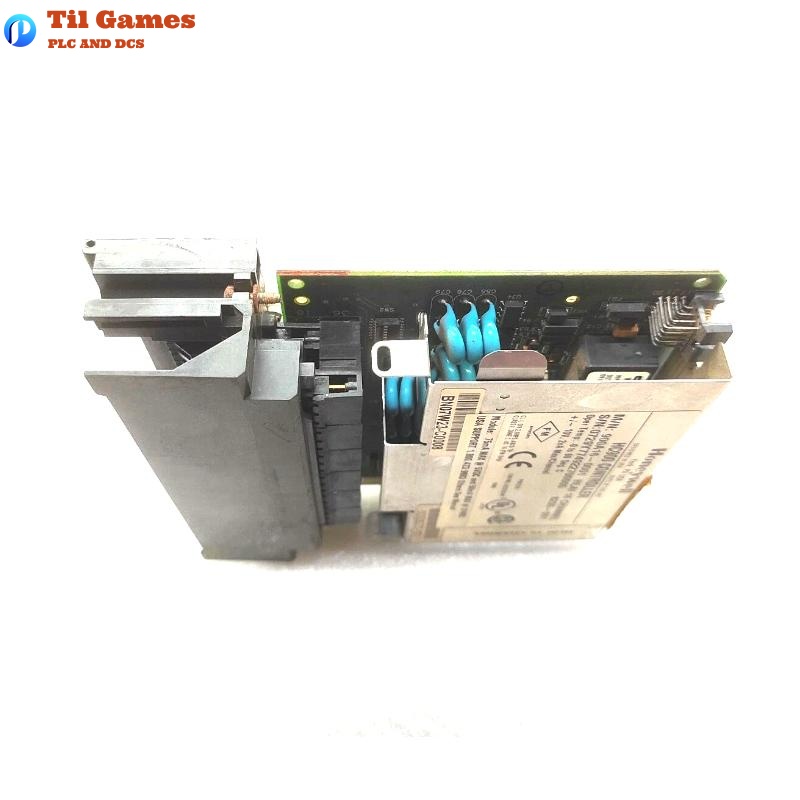

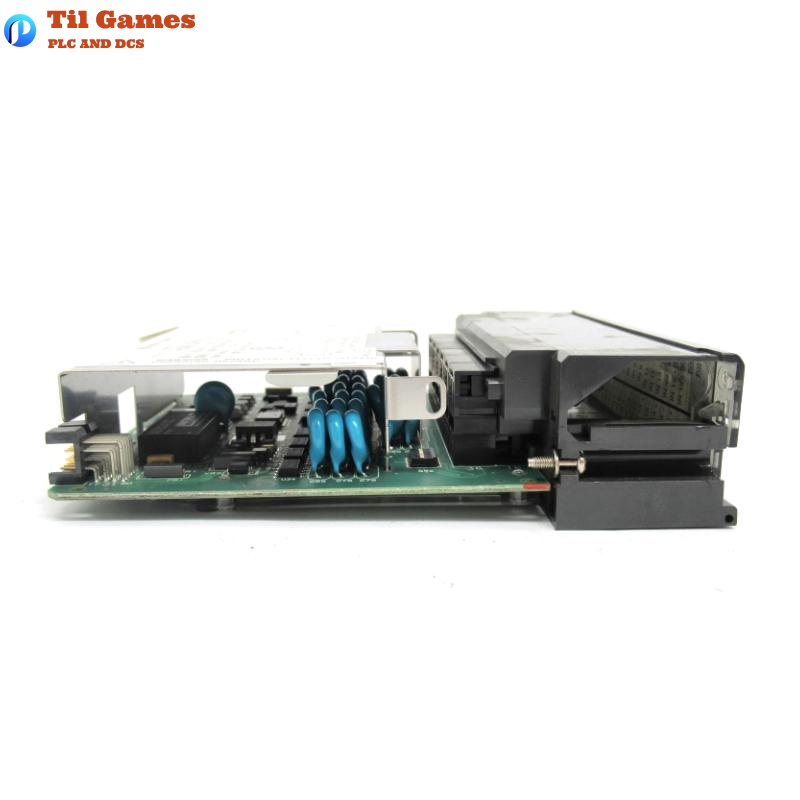

| Model | Honeywell 900A16-0106 High Level Analog Input Module |
| Input Channels | 16 isolated inputs |
| Input Types | Voltage (V), Current (mA) |
| Input Impedance | >1 MΩ (volts), 250 Ω (milliamps) |
| Galvanic Isolation | 400 VDC point-to-point, 1kVDC to logic |
| Signal Accuracy | ±0.1% of range (factory), ±0.05% (field calibration) |
| A/D Converter | 1 per module, 15-bit resolution |
| Update Rate | 100 ms |
| Calibration | Redundant factory calibration, individual channel calibration |
| Diagnostics | Factory/field calibration, power, configuration monitoring |
| Power Consumption | 5V @ 75mA max, 24V @ 50mA max |
| Dimensions (H x W x D) | 137 x 35.6 x 137.16 mm |
| Weight | 0.397 kg |
FAQ
FAQ
Q1: What type of signals does the 900A16-0106 module support?
A1: It supports voltage (V) and current (mA) signal inputs on each channel.
Q2: Is each channel electrically isolated?
A2: Yes, each input channel is galvanically isolated point-to-point and to the logic.
Q3: Can the module be field calibrated?
A3: Yes, individual channel field calibration is supported and stored in non-volatile memory.
Q4: What is the analog-to-digital conversion resolution?
A4: The module provides 15-bit resolution A/D conversion.
Q5: What is the update rate for input conversion?
A5: The update rate is 100 milliseconds per module.
Q6: Does the module have diagnostics capability?
A6: Yes, it includes diagnostics for factory calibration, field calibration, 24VDC supply, and configuration.
Q7: Is there a failsafe mode?
A7: Yes, each channel supports a user-defined failsafe value in case of communication loss.
Q8: What terminal block is required?
A8: A 36-position Euro style terminal block is required for connection.
