Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 900G32-0301 |

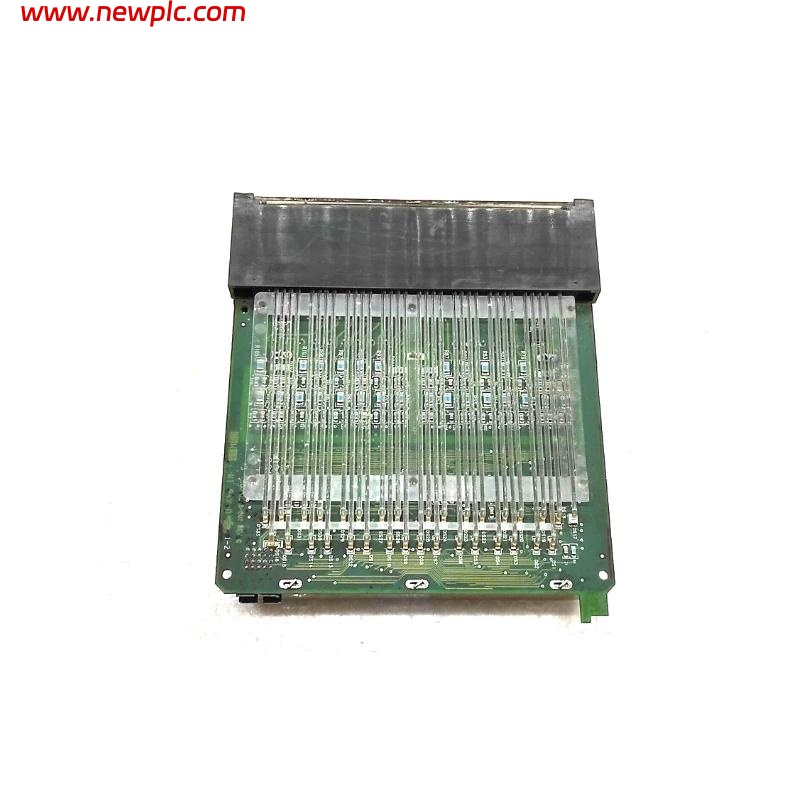

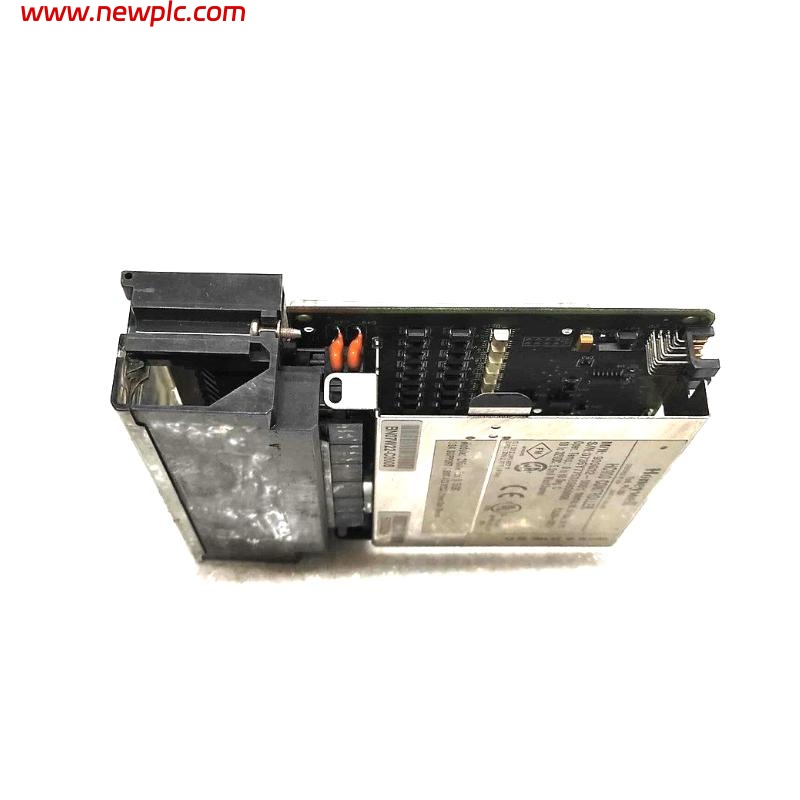

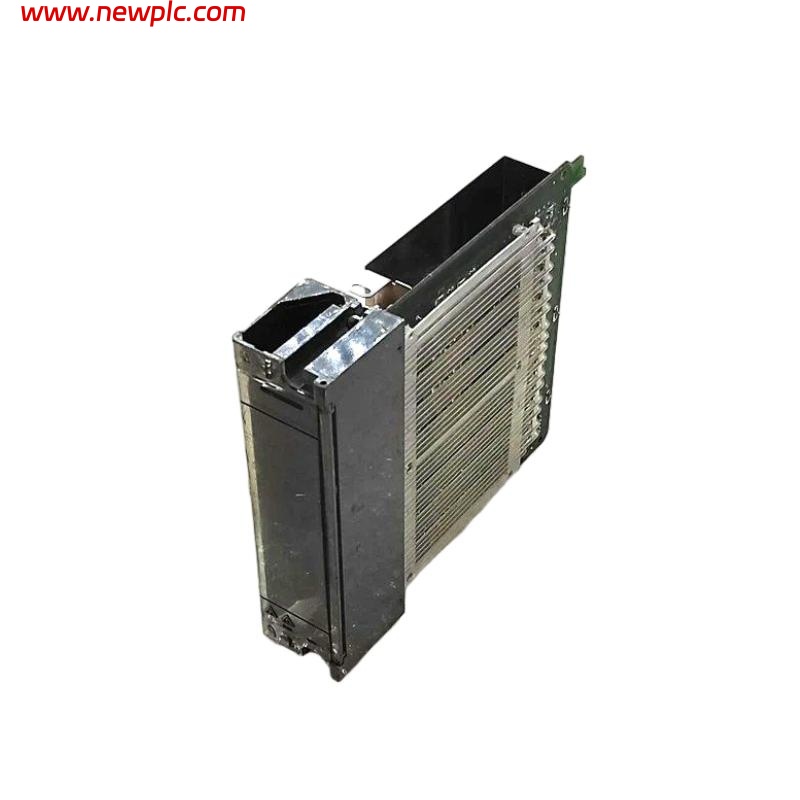

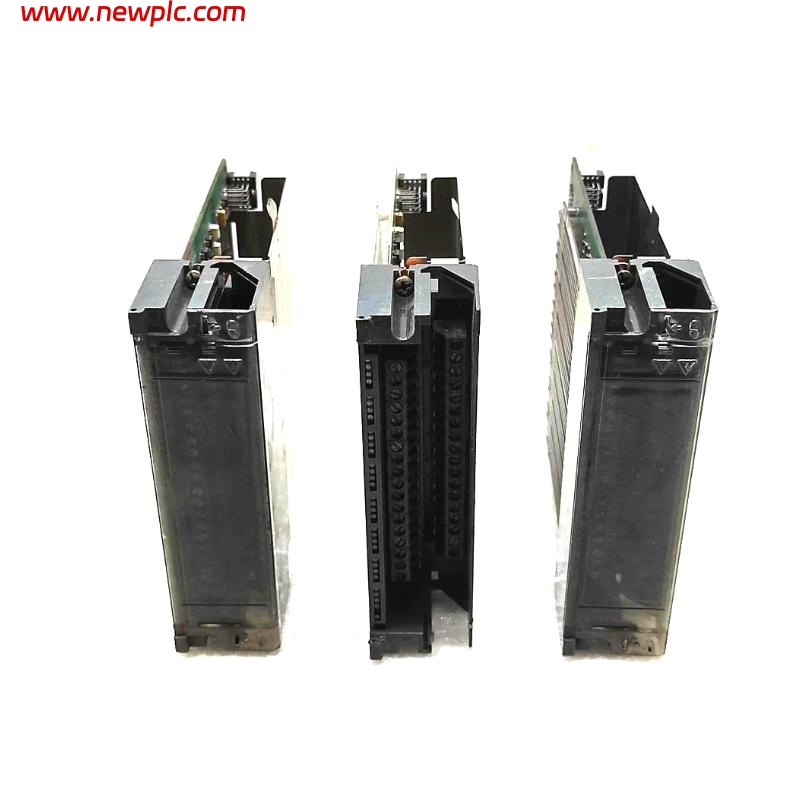

| Type | ControlEdge 900 Digital Input Module |
| Inputs per module | 32 (sinking) |
| Input Voltage Range | 10 VDC to 32 VDC |
| Peak Voltage | 32 VDC |
| Galvanic Isolation | 2 groups of 16 inputs (30 VDC max.) |
| ON Voltage Level | ≥ 9.5 VDC |
| OFF Voltage Level | ≤ 3.5 VDC |
| Input Impedance | 6.9 kΩ nominal |
| Input Current | 1.7 mA @ 12 VDC; 3.5 mA @ 24 VDC |
| Minimum ON Current | 1.0 mA |
| Maximum OFF Current | 0.7 mA |
| OFF to ON Response Time | ≤ 5 ms |
| ON to OFF Response Time | ≤ 5 ms |
| Power Supply Loading | 5V: 215 mA max; 24V: 0 mA |
| Dimensions (H x W x D) | 137 × 35.6 × 151.7 mm |
| Weight | 0.175 kg |
FAQ
FAQ
Q1: How many digital input channels does the module support?
A1: The module supports 32 sinking-type digital input channels, divided into two groups of 16.
Q2: What is the input voltage range?
A2: The input voltage range is 10 VDC to 32 VDC, with a peak voltage of 32 VDC.
Q3: How is the input channel isolation configured?
A3: The inputs are divided into two isolated groups of 16, isolated from each other and from the logic side up to 30 VDC.
Q4: What are the ON and OFF voltage thresholds?
A4: ON voltage is ≥9.5VDC; OFF voltage is ≤3.5VDC.
Q5: What is the response time?
A5: The maximum OFF-to-ON response time is 5 ms, and the maximum ON-to-OFF response time is also 5 ms.
Q6: What is the module’s power consumption?
A6: Power consumption is up to 215 mA at 5V, with no current drawn on the 24V side.
Q7: What are the dimensions and weight of the module?
A7: Dimensions are 137 × 35.6 × 151.7 mm, and the weight is 0.175 kg.
Q8: What are the input impedance and current characteristics?
A8: Input impedance is nominally 6.9 kΩ, with an input current of about 1.7 mA at 12VDC and 3.5 mA at 24VDC.
