Technical Specifications
| Parameter | Value |
|---|---|

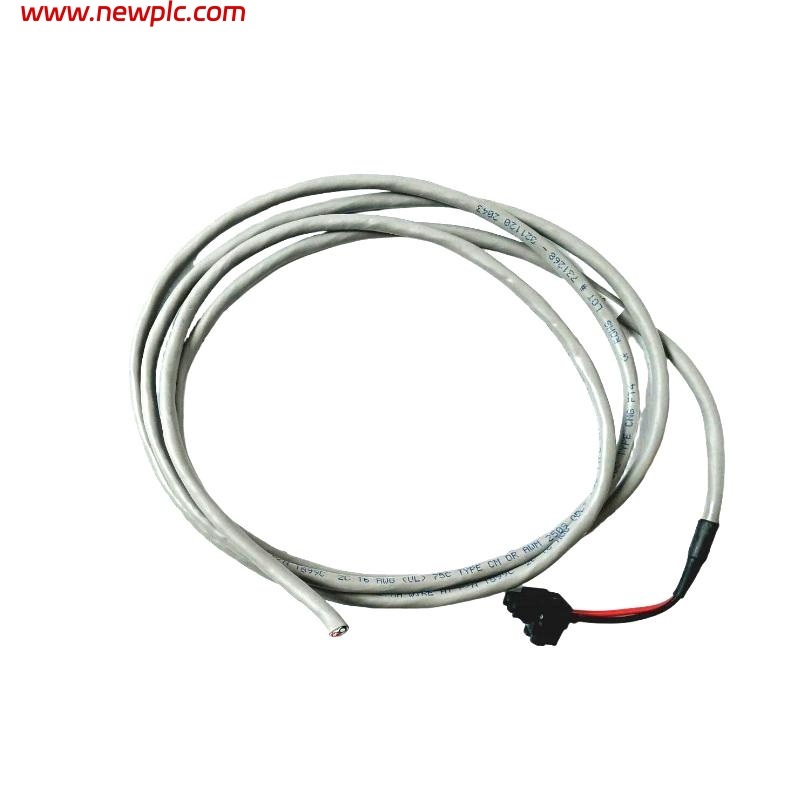

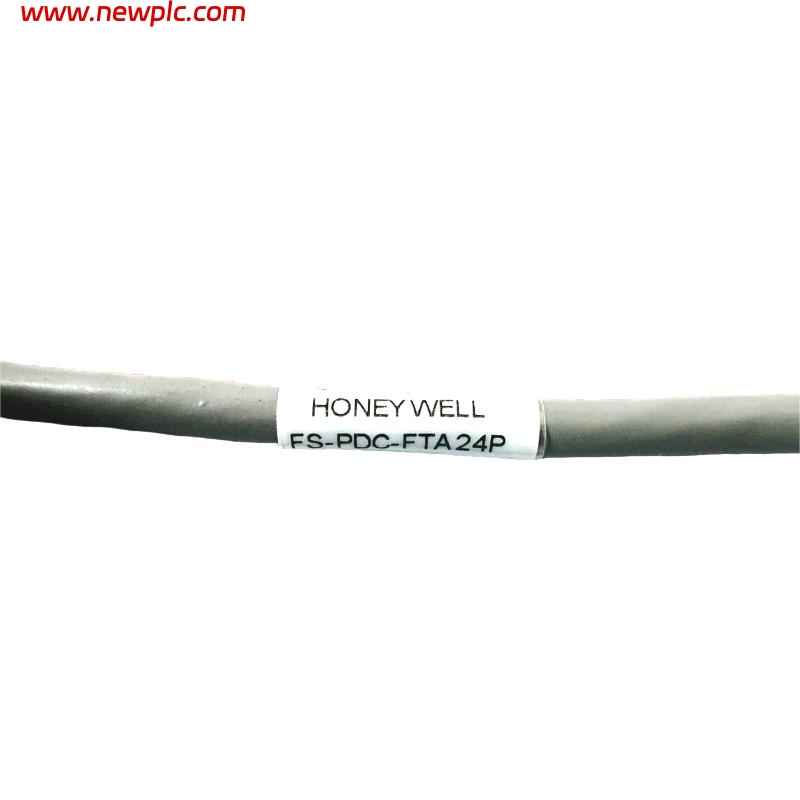

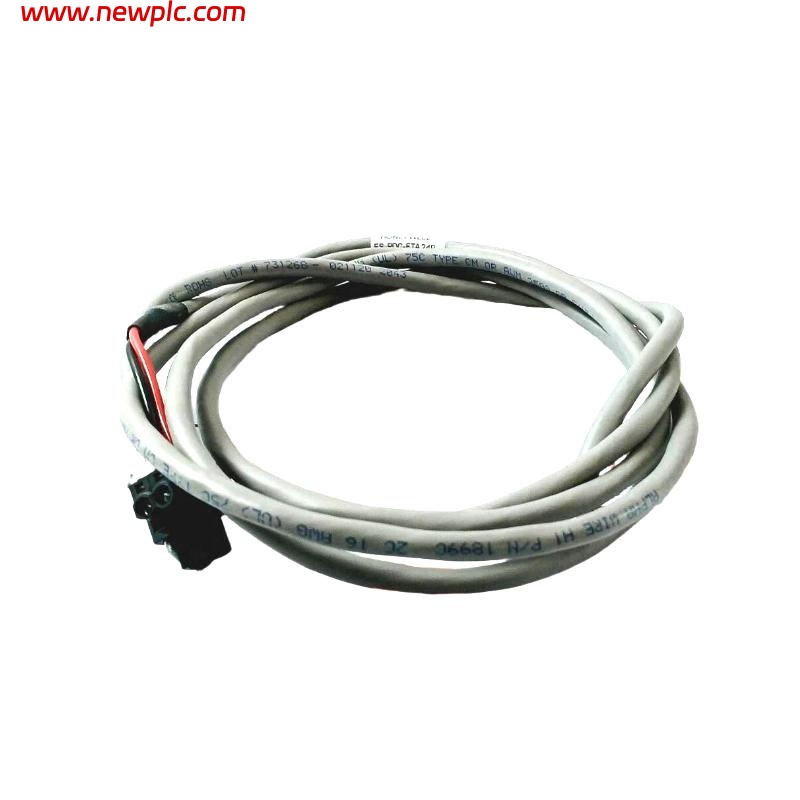

| Product Name | FS-PDC-FTA24 Power Distribution Cable |
| Cable Type | Power distribution cable for 24Vdc |
| Cable Length | 2 meters |

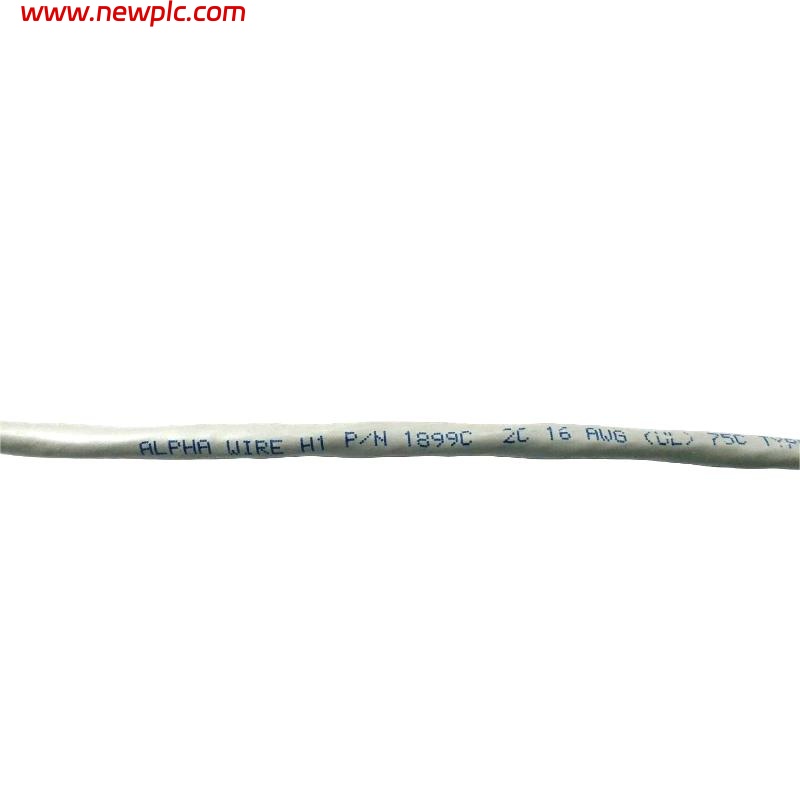

| Cable Type Specification | CC600 2 x 6mm² |
| Connector (Power Board Side) | Equipped (FC-PDB-0824 side) |
| Connector (Device Side) | None |
| Application | Connects FC-PDB-0824 board to 24Vdc devices (FTAs, fans) |
| Approval | UL, CSA, FM pending |
| Package Weight | 3 kg |
| Dimensions (Cable length) | 2 m (approx. 78.7 in) |
FAQ
FAQ
Q1: What is the primary application of the FS-PDC-FTA24 cable?
A1: It is used to transfer 24Vdc power from the FC-PDB-0824 distribution board to devices like FTAs and fan units within a cabinet.
Q2: What is the length of the FS-PDC-FTA24 cable?
A2: The standard length of this cable is 2 meters.
Q3: Is the FS-PDC-FTA24 cable pre-terminated at both ends?
A3: No, it comes with a connector on the FC-PDB-0824 side, while the device side has no connector.
Q4: What type of conductor does the FS-PDC-FTA24 use?
A4: The cable uses CC600 2 x 6mm² conductors.
Q5: What approvals does the FS-PDC-FTA24 have?
A5: The cable has UL and CSA approvals, and FM approval is pending.
Q6: How much does the FS-PDC-FTA24 weigh when packaged?
A6: The package weight is approximately 3 kilograms.
Q7: Can this cable be used for voltages other than 24Vdc?
A7: No, it is specifically designed and keyed for 24Vdc applications.
Q8: Does the cable include locking features for secure connection?
A8: Yes, the connector on the power board side is designed for secure attachment.
