Technical Specifications
| Parameter | Specification |
|---|---|

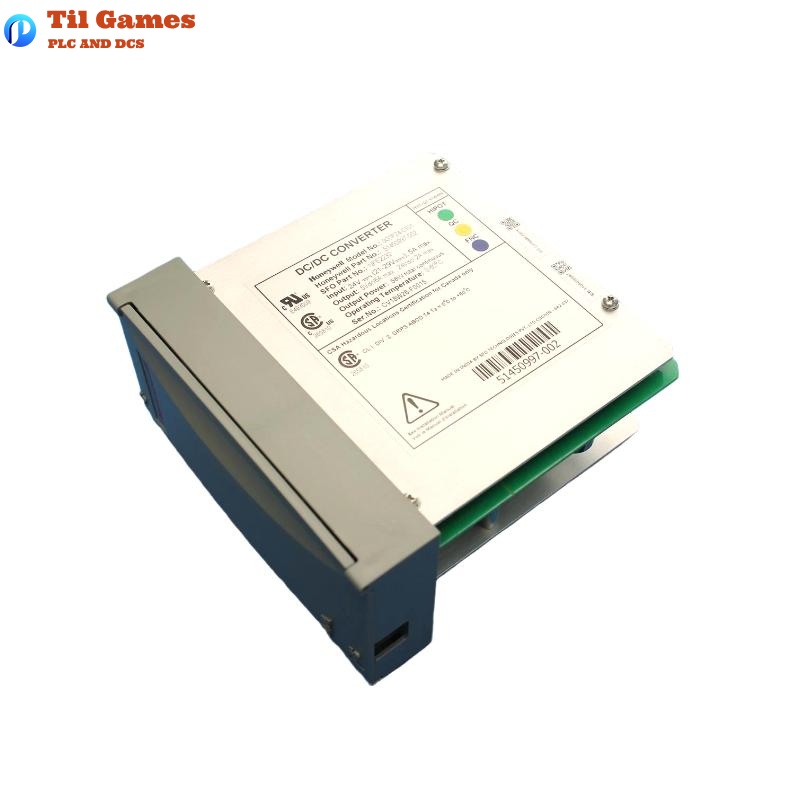

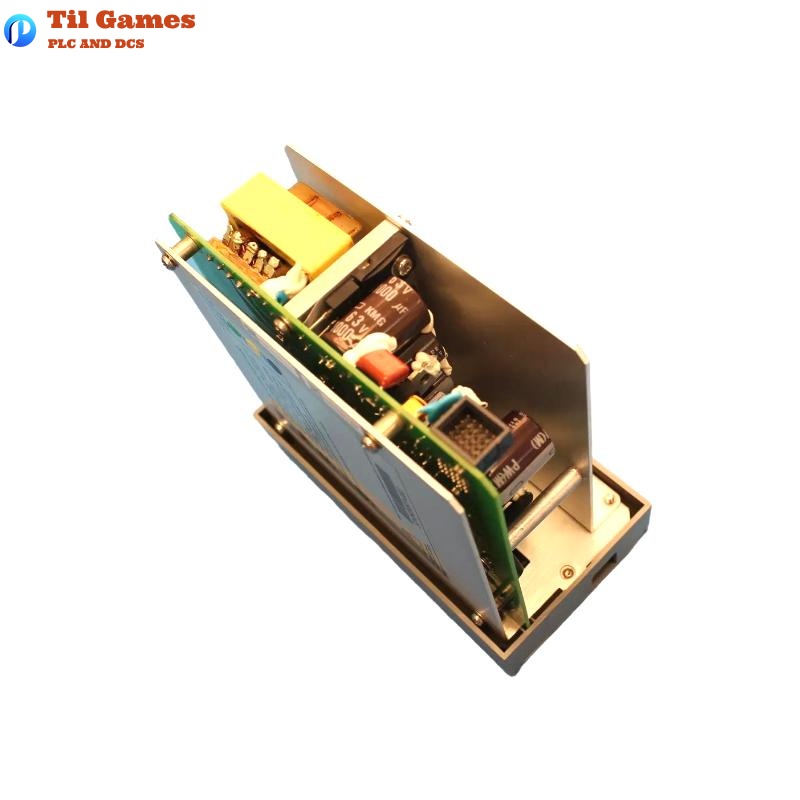

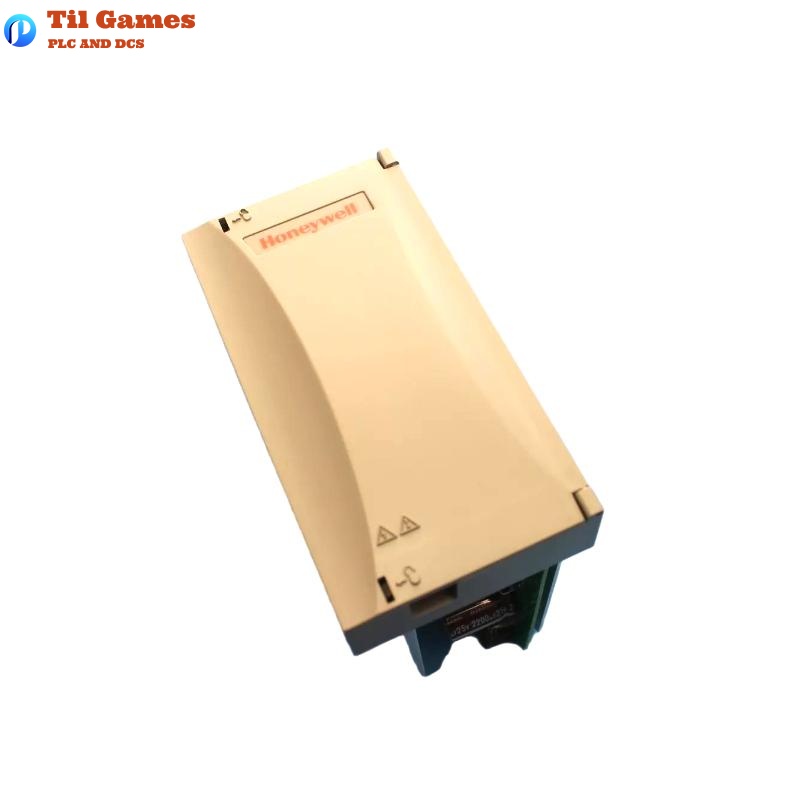

| Module Model | 900P24-0101 |
| Function | Power supply for controller and I/O rack |
| Input Voltage Range | 21 – 29 VDC |
| Inrush Current | 30A for 3 ms @ 29VDC |
| Output Voltage | 5VDC and 24VDC |
| Max Output Power | 60W |
| Wiring Terminals | Screw type, #12-22 AWG |
| Internal Protection | Non-replaceable internal fuse |
| Module Dimensions | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
| Mounting Method | Standard 35mm DIN rail |
| Status Indicators | None |
| Redundancy Support | Yes |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 10% to 90% (non-condensing) |
| Certifications | CE, UL, CSA, FM, ATEX |
| Environmental | RoHS compliant (except PSU) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating voltage range of the 900P24-0101 module?
A1: It operates within 21 to 29 VDC input range.
Q2: What output voltages are supplied by the module?
A2: It supplies 5VDC and 24VDC for controller and I/O modules.
Q3: Does this module support redundant power configurations?
A3: Yes, it supports redundant controller rack power configurations.
Q4: What is the output power capacity of this module?
A4: The output power capacity is 60W.
Q5: Does it include overcurrent protection?
A5: Yes, it features a non-replaceable internal fuse for fault current limitation.
Q6: How is the module installed?
A6: It mounts on a standard 35mm DIN rail inside a control cabinet.
Q7: Is this module suitable for harsh environments?
A7: The module lacks conformal coating and is not recommended for G3-level harsh environments.
Q8: What are the physical dimensions and weight of the module?
A8: It measures 137 x 72.6 x 151 mm and weighs 0.65 kg.
