Technical Specifications
| Parameter Category | Details |
|---|---|

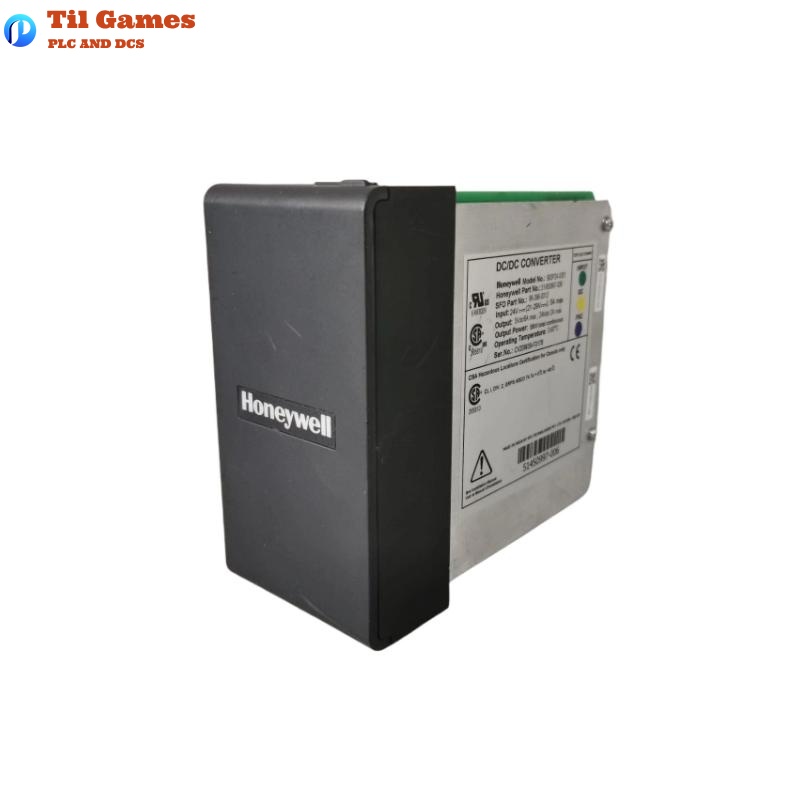

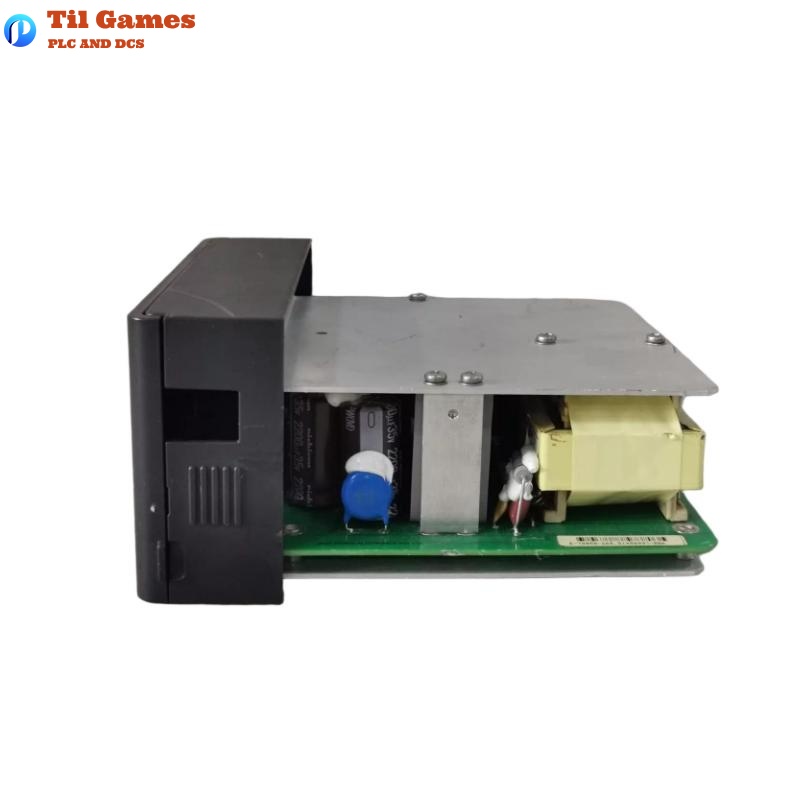

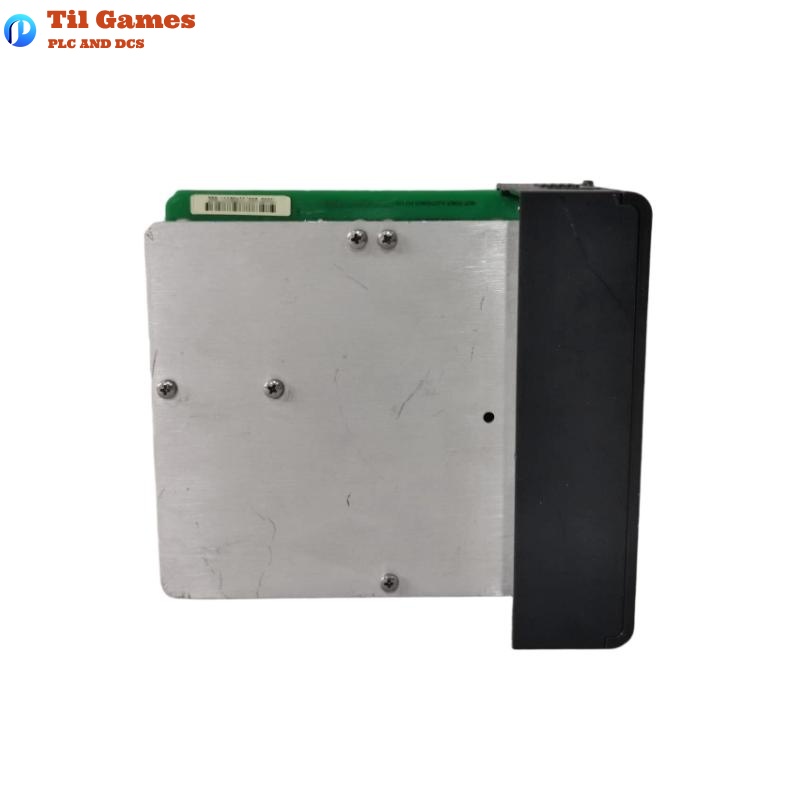

| Product Model | 900P24-0501 |
| Power Type | 24VDC Power Supply Module |
| Input Voltage Range | 21 to 29 VDC |
| Rated Input Power | 72.5W |
| Output Power | 60W |
| Inrush Current | 30A for 3ms at 29VDC |
| Fuse Type | Internal, non-replaceable |

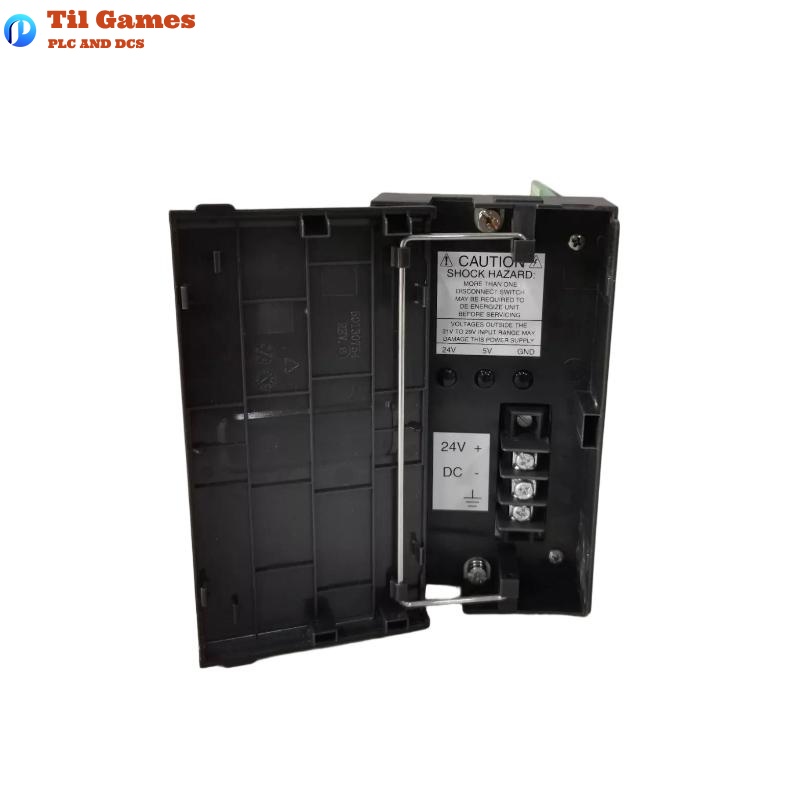

| Wiring Method | Screw-type terminals, #12-22 AWG wire |
| Cooling Method | Natural convection |
| Housing Material | Polyvinyl Chloride (PVC), UL94-V0 rated |
| Mounting Method | Standard 35mm DIN rail |
| Dimensions (H x W x D) | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
| Certifications | CE, UL, CSA, FM, ATEX |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10%–90% operating, 5%–95% storage, non-condensing |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input voltage range does the 900P24-0501 support?
A1: It supports 21 to 29 VDC input voltage.
Q2: What is the maximum output power of this module?
A2: The output power is rated at 60W.
Q3: Does the module have overcurrent protection?
A3: Yes, it includes an internal non-replaceable fuse.
Q4: What mounting method is used for this module?
A4: It mounts on a standard 35mm DIN rail.
Q5: Is it compatible with redundant controller racks?
A5: Yes, the 900P24-0501 is suitable for racks with redundant controllers.
Q6: What is the operating temperature range?
A6: 0°C to 60°C.
Q7: What are the dimensions and weight?
A7: 137 x 72.6 x 151 mm and 0.65 kg.
Q8: What safety and compliance certifications are supported?
A8: Certified to CE, UL, CSA, FM, and ATEX standards.
