Technical Specifications
| Parameter | Specification |
|---|---|

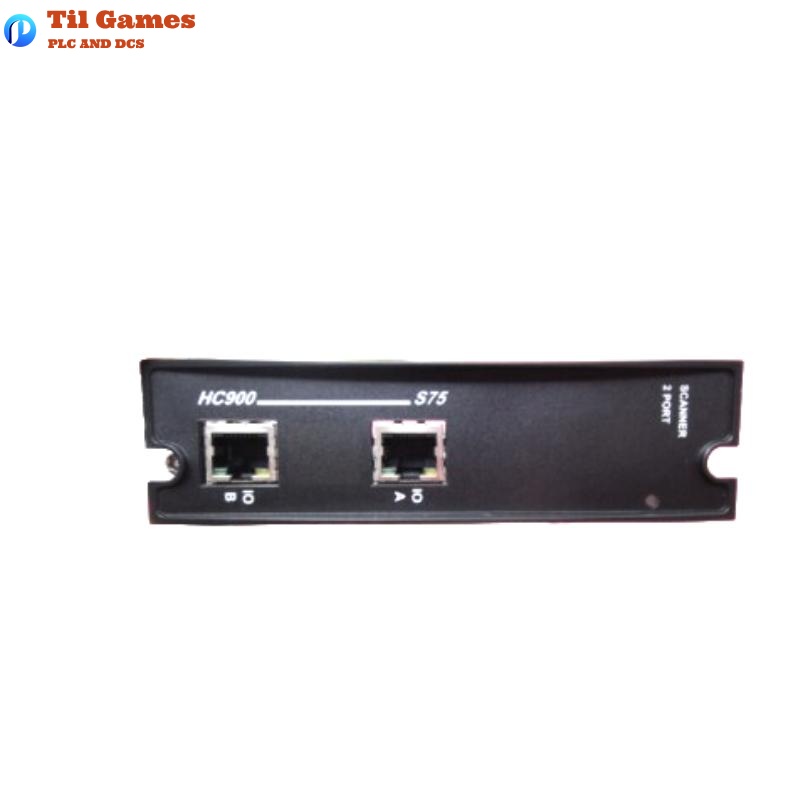

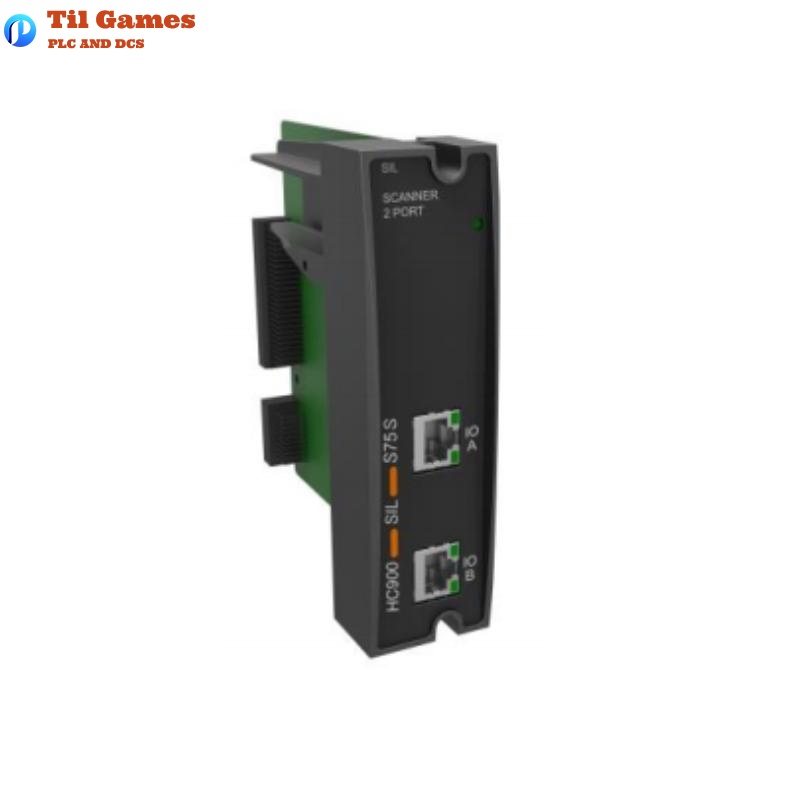

| Model | Honeywell 900S75-0460 ControlEdge HC900 Scanner |
| Type | Dual-port Scanner Module |
| Mounting | 35 mm DIN rail |
| LED Indicators | Green (OK), Red (Fault), Amber (Override) |
| Insert/Remove Under Power | Supported |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| Weight | 0.4 kg |
| Power Consumption | 5.0 W |
| Isolation | Galvanic Isolation from logic |
| Certifications | CE, UL, CSA, ATEX, FM approved |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Safety Classification | T4 temperature classification |
FAQ
FAQ
Q1: Does the 900S75-0460 module support hot-swapping under power?
A1: Yes, the module supports hot-swapping and can be inserted or removed without powering down the system.
Q2: What is the operating temperature range of the 900S75-0460?
A2: It operates within a temperature range of 0°C to 60°C, making it suitable for industrial environments.
Q3: Does the module have LED indicators for status?
A3: Yes, it features tri-color LEDs indicating operational status (green), faults (red), and forced mode (amber).
Q4: What happens if communication with the controller is lost?
A4: The module enters a failsafe state, outputting user-defined safe values.
Q5: What certifications does the module carry?
A5: It is certified with CE, UL, CSA, ATEX, and FM for global industrial compliance.
Q6: What mounting method is used for installation?
A6: It uses standard 35 mm DIN rail mounting, suitable for control cabinets.
Q7: What is the weight of the module?
A7: The module weighs 0.4 kg, making it lightweight and easy to handle during installation.
Q8: Is it suitable for redundant communication systems?
A8: Yes, the dual-port scanner design supports redundant architectures for increased system reliability.
