Technical Specifications
| Parameter | Description |
|---|---|

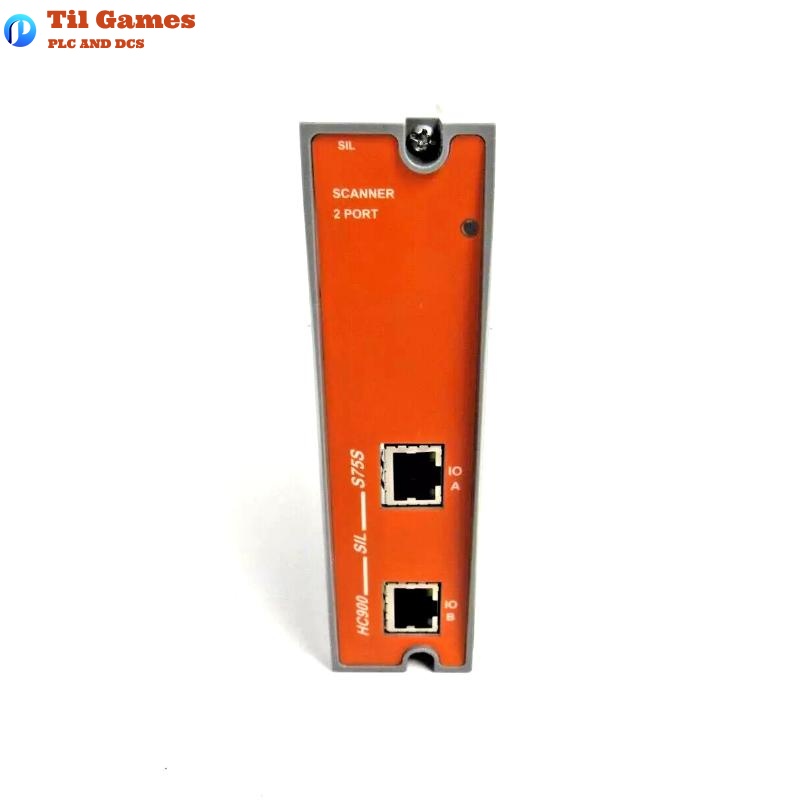

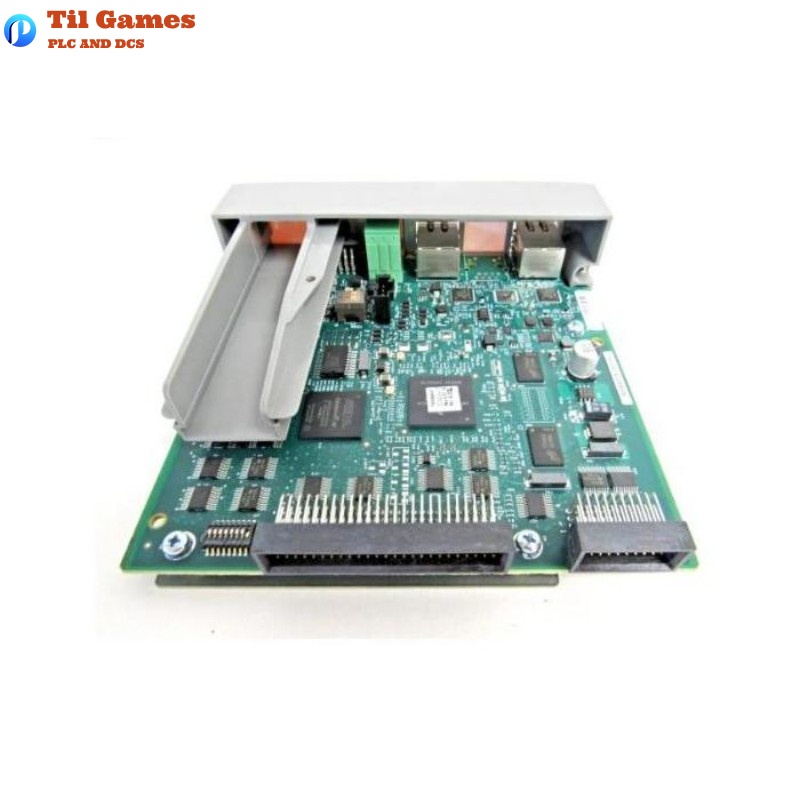

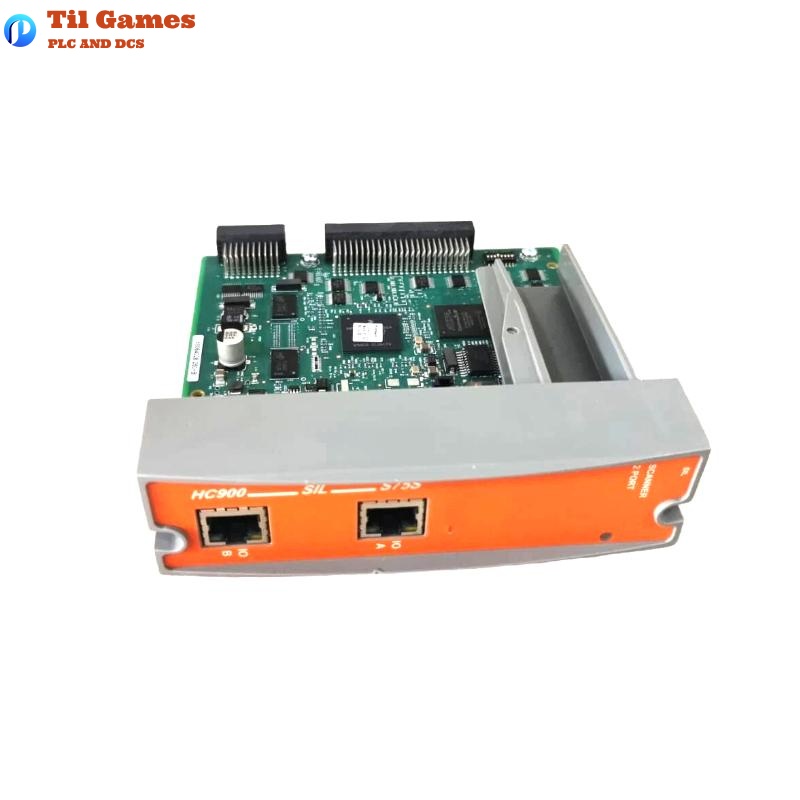

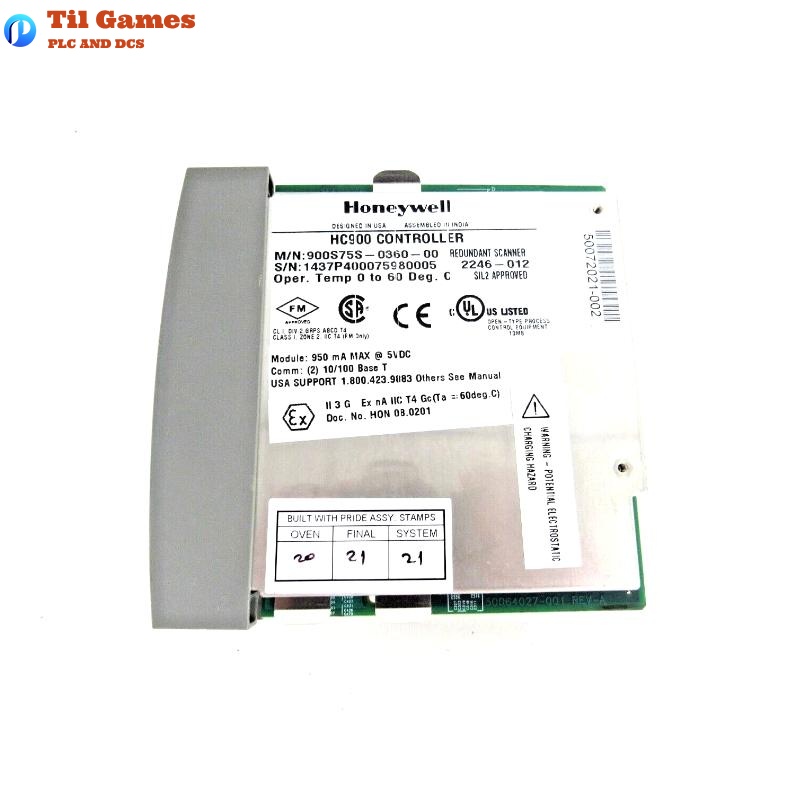

| Product Model | Honeywell 900S75S-0360-00 ControlEdge HC900 I/O Scanner |
| Module Type | Dual-port Ethernet I/O Scanner Module |
| Communication Interface | 2x Ethernet ports (10/100 Mbps) |
| Supported Protocols | Ethernet/IP, Modbus TCP |
| Hot Swap Support | Yes, module insert/removal under power |
| Diagnostic Features | Tri-color status LED (Green = OK, Red = Fault, Amber = Force) |
| Mounting | DIN rail mounting (35 mm standard rail) |
| Power Consumption | 5W (typical) |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| Weight | 0.4 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% non-condensing |
| Certifications | CE, UL, CSA, ATEX, FM |
| Isolation | Galvanically isolated from backplane and logic |
| Environmental Compliance | RoHS compliant |
FAQ
FAQ
Q1: Does the module support hot-swapping?
A1: Yes, the 900S75S-0360-00 supports hot-swapping, allowing maintenance or replacement without shutting down the system.
Q2: What communication protocols are supported?
A2: The module supports both Modbus TCP and Ethernet/IP protocols.
Q3: How is the module mounted?
A3: It mounts to a standard 35mm DIN rail, suitable for installation in industrial control enclosures.
Q4: Does the module include status indicators?
A4: Yes, a tri-color LED on the front panel indicates operational status: Green (OK), Red (Fault), Amber (Forced).
Q5: What certifications does it carry?
A5: The module is certified with CE, UL, CSA, ATEX, and FM for use in industrial environments.
Q6: Does this module support redundant network connections?
A6: Yes, this dual-port model allows for redundant Ethernet connections, enhancing reliability.
Q7: What is the operating temperature range?
A7: Operating range is from 0°C to 60°C, and storage range is from -40°C to 70°C.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 137 × 38.1 × 137.16 mm and weighs 0.4 kg.
