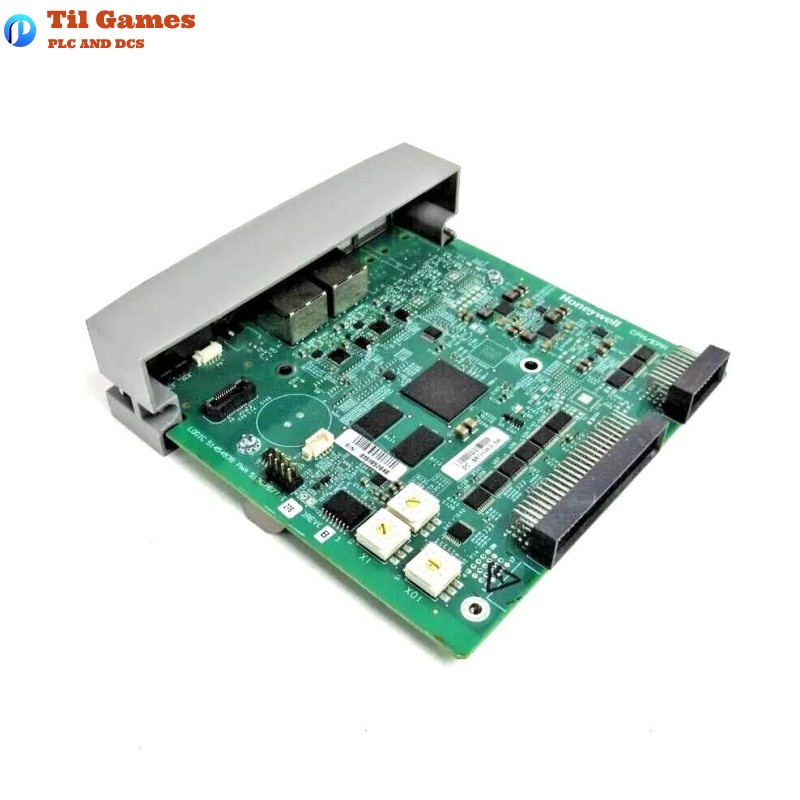

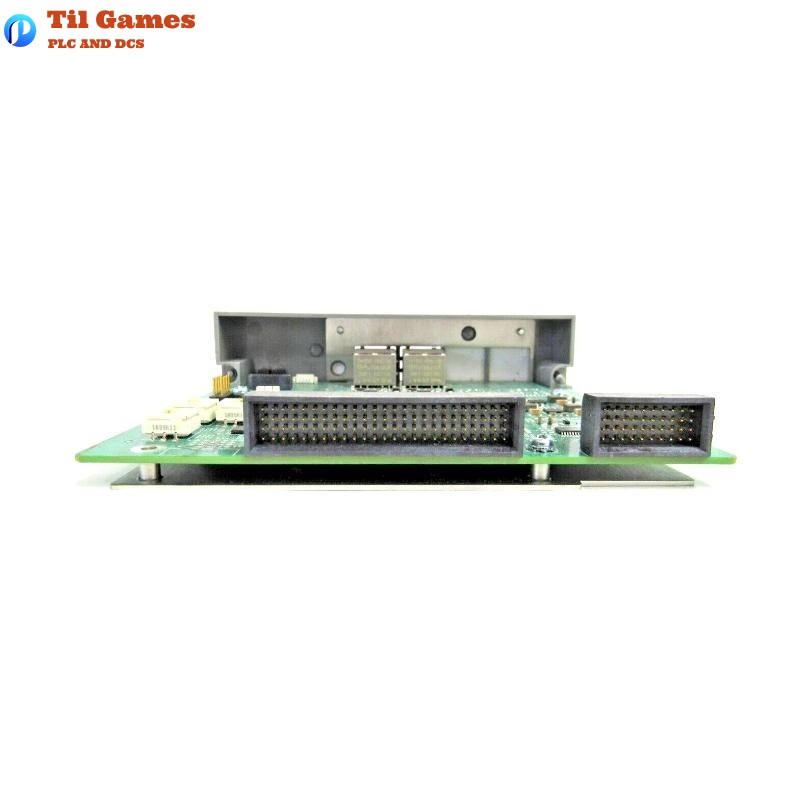

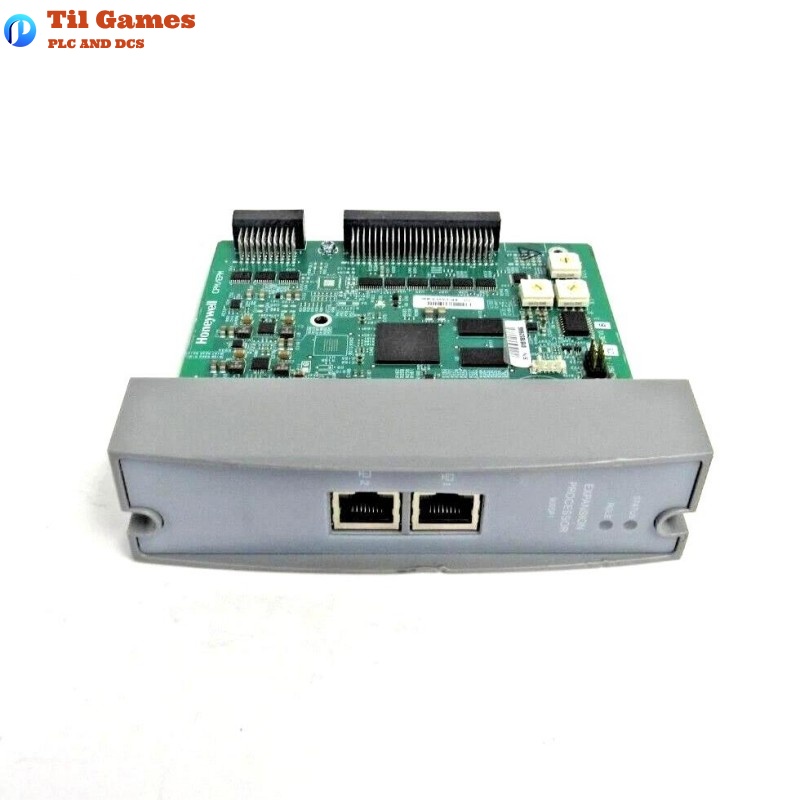

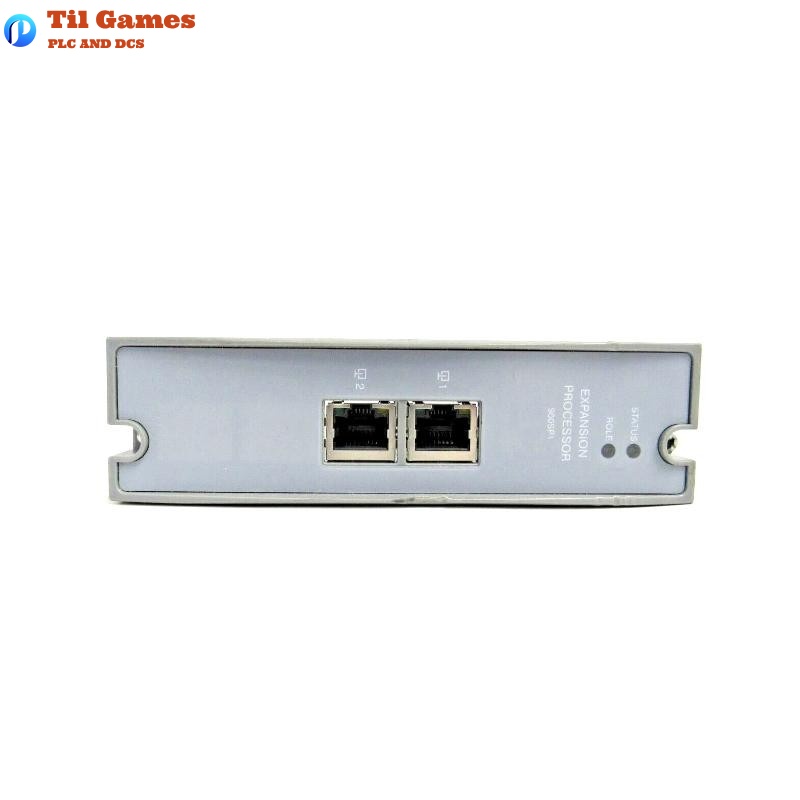

Honeywell 900SP1-0100 ControlEdge HC900 Expansion Processor Module

Q1: What is the purpose of the Honeywell 900SP1-0100 ControlEdge HC900 Expansion Processor Module?
A1: The Honeywell 900SP1-0100 module acts as an interface between the expansion I/O and the control processor module (CPM), facilitating communication between I/O racks and the control system in distributed setups.

Q2: What are the communication capabilities of the 900SP1-0100 module?
A2: The module supports Ethernet communication with 2 Ethernet ports, utilizing protocols such as EtherNet/IP, PROFINET, and MODBUS, offering both server and client functions.

Q3: What processor is used in the 900SP1-0100 module?
A3: The 900SP1-0100 features a Dual Core ARM® Cortex™-A9 processor running at 667 MHz, which provides reliable and high-performance operation for industrial control systems.

Q4: Does the 900SP1-0100 module support redundant communication setups?
A4: Yes, the module supports redundant communication setups, ensuring continuous operation even in case of network failures.

Q5: What are the physical dimensions and weight of the 900SP1-0100 module?
A5: The dimensions are 137 × 38.1 × 151.7 mm, and it weighs 0.32 kg, making it compact and suitable for various rack installations.

Q6: How does the module protect against electrical damage?
A6: The 900SP1-0100 includes transient voltage suppression with a 600W peak pulse power capability at 10×1000μs waveform, ensuring it is protected from electrical surges.

Q7: How does the module indicate operational status?
A7: The module features diagnostic LEDs that provide visual indication of status and faults, aiding in quick troubleshooting.

Q8: What is the address range for the module’s rotary switch?
A8: The rotary address switch allows the user to set the rack address range from 1 to 99, enabling easy configuration for system setups.
