Technical Specifications
| Parameter | Specification |
|---|---|

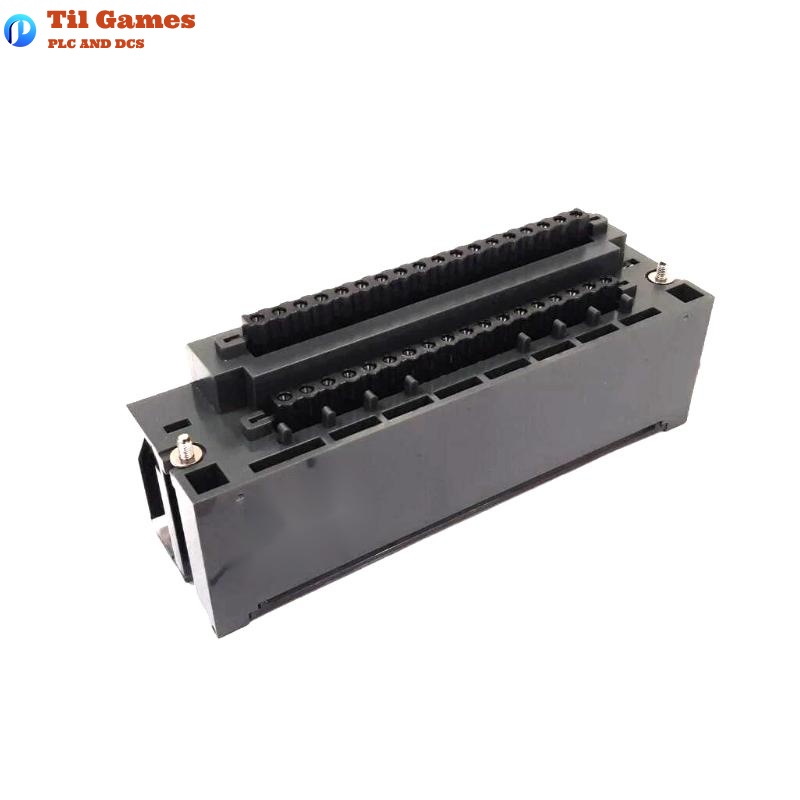

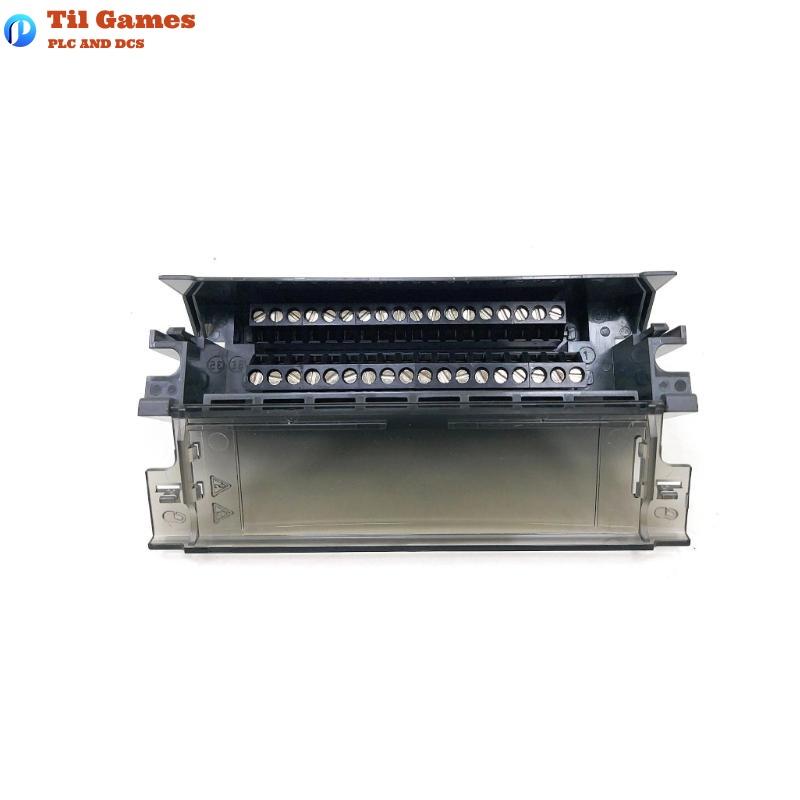

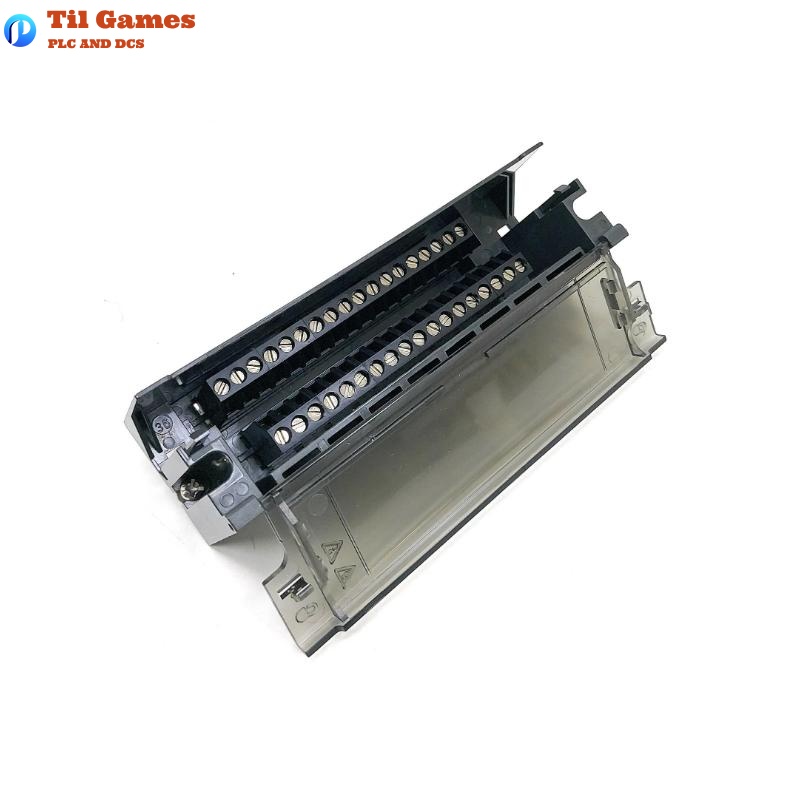

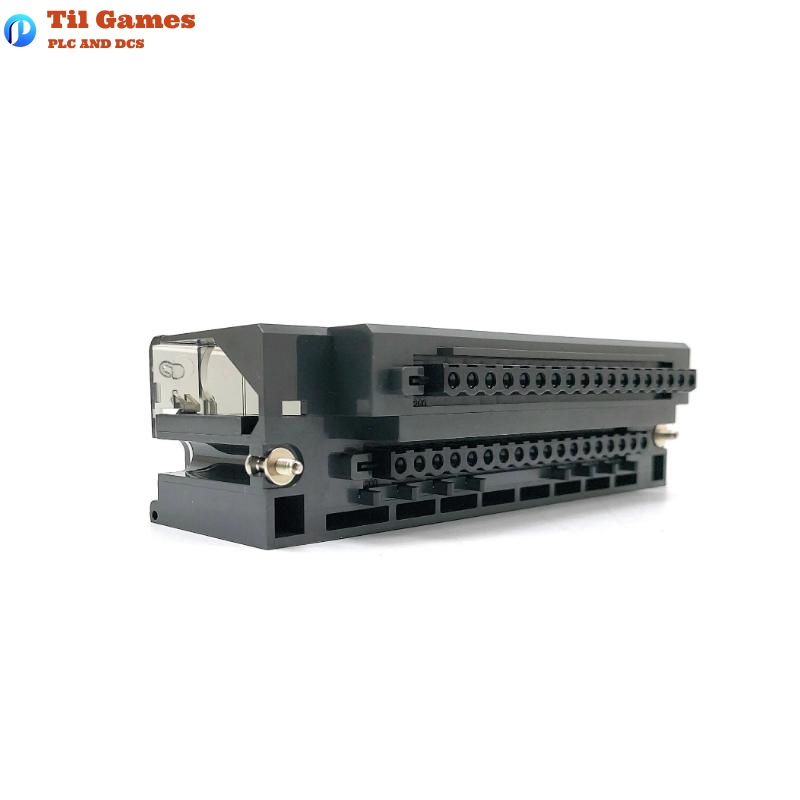

| Model | Honeywell 900TCK-0001 ControlEdge HC900 Low Voltage Terminal Block |
| Dimensions | 137 × 35.6 × 25 mm |
| Weight | 0.21 kg |
| Voltage Rating | 24 VDC |
| Terminal Type | 36-position Euro style terminal block |
| Power Supply | External loop power or internal rack power |
| Wiring | Screw type terminals, #12-22 AWG |
| Mounting | 35mm wide DIN rail |
| Current Rating | 0.5 A Maximum per channel, 4 A per module |
| Galvanic Isolation | 500 VDC between groups, 500 VDC from logic |
| Certifications | CE, UL, ATEX, CSA |
FAQ
FAQ
1. What is the model number of this terminal block?
-
The model number is Honeywell 900TCK-0001 ControlEdge HC900 Low Voltage Terminal Block.
2. What are the dimensions of the Honeywell 900TCK-0001 terminal block?
-
The dimensions are 137 × 35.6 × 25 mm.
3. How much does the Honeywell 900TCK-0001 terminal block weigh?
-
The weight of the terminal block is 0.21 kg.
4. What is the voltage rating of the 900TCK-0001 terminal block?
-
The terminal block operates with a 24 VDC voltage rating.
5. What is the maximum current per channel for this terminal block?
-
The maximum current per channel is 0.5 A, with a maximum of 4 A per module.
6. What kind of mounting does the terminal block support?
-
It supports mounting on a standard 35mm wide DIN rail.
7. What kind of terminal block does the Honeywell 900TCK-0001 use?
-
It uses a 36-position Euro style terminal block.
8. What certifications does the Honeywell 900TCK-0001 terminal block have?
-
The terminal block is CE, UL, ATEX, and CSA certified.
