Technical Specifications
| Parameter | Description |
|---|---|

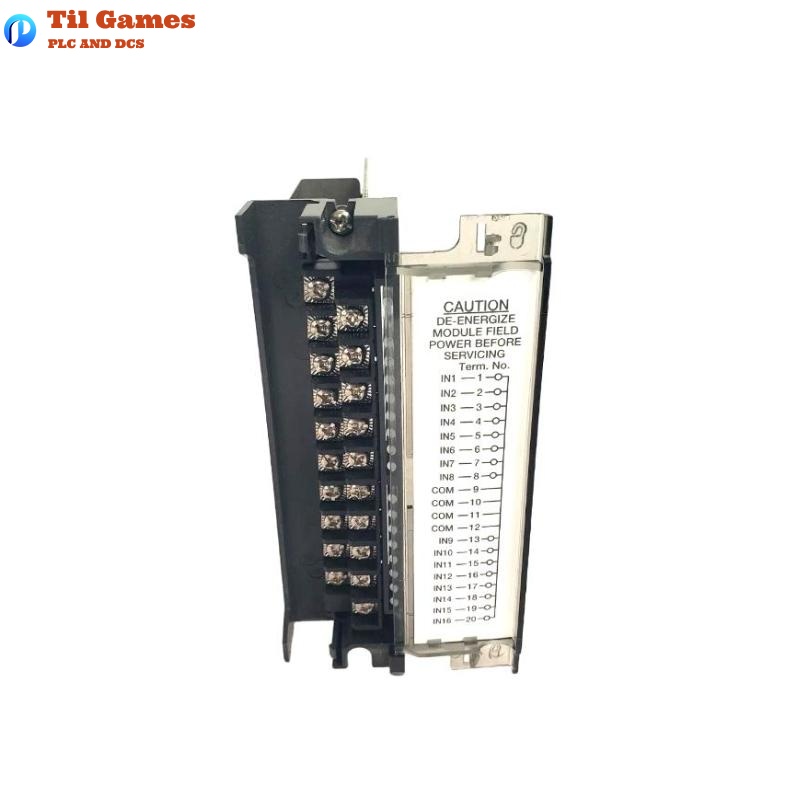

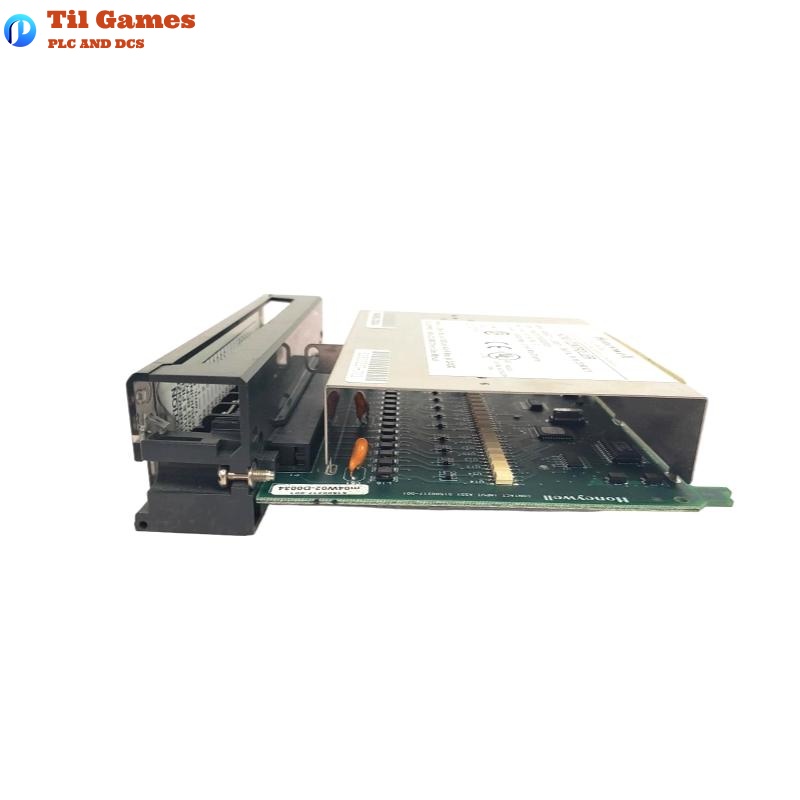

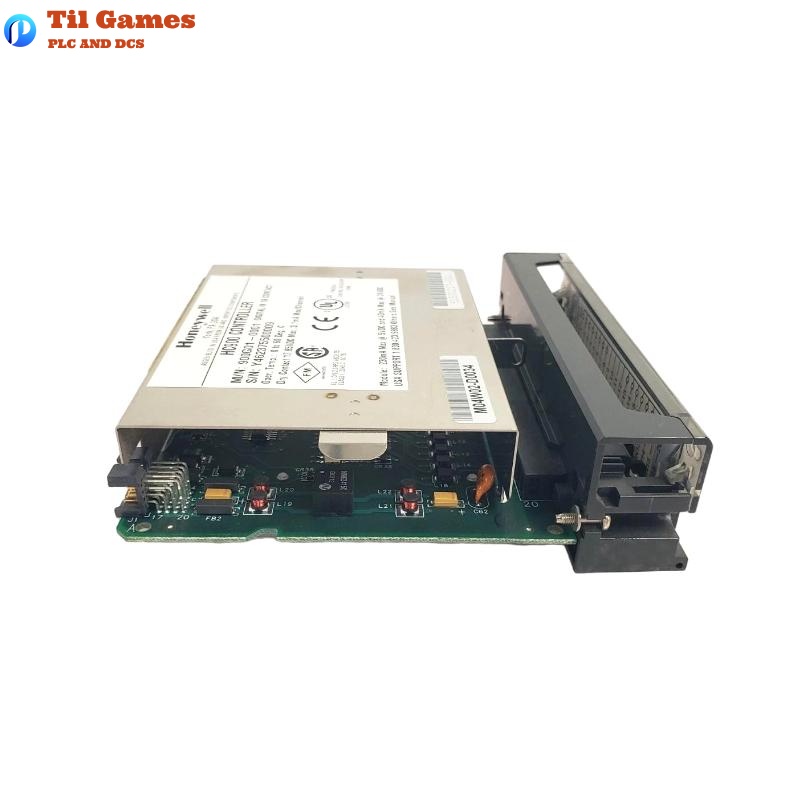

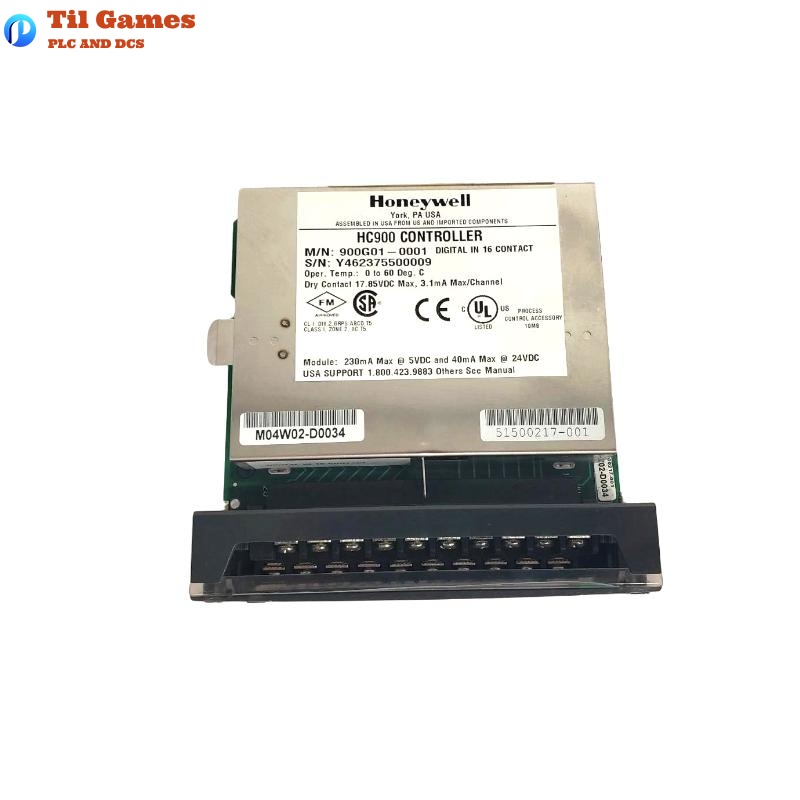

| Product Name | Honeywell ControlEdge HC900 Digital Input Module |
| Model Number | 900G01-0001 |
| Input Type | Contact Closure |
| Channels per Module | 16 (Single-ended) |
| Voltage Supply | 15 VDC nominal (provided by controller) |
| Maximum Contact Resistance | 1000 ohms |
| Switching Current | 2.6 mA nominal |
| OFF to ON Response Time | Max. 4 ms |
| ON to OFF Response Time | Max. 6 ms |
| Galvanic Isolation | Yes (between field wiring and module/backplane) |
| Power Consumption (5V) | Max. 130 mA |
| Power Consumption (24V) | Max. 40 mA |
| LED Indicators | One green LED per channel for input status |
| Dimensions | 137 x 35.6 x 151.7 mm |
| Weight | 0.354 kg |
FAQ
FAQ
Q1: How many digital input channels does this module support?
A1: The Honeywell 900G01-0001 module supports 16 single-ended contact closure digital input channels.
Q2: Where is the input voltage supplied from?
A2: The input voltage is internally supplied by the controller at a nominal 15 VDC.
Q3: What is the maximum allowed contact resistance?
A3: The maximum allowed contact resistance is 1000 ohms.
Q4: Is the module electrically isolated?
A4: Yes, each input channel is isolated from the module’s logic and backplane.
Q5: How is the input state indicated?
A5: Each channel features a green LED to indicate the input state.
Q6: What are the response times for input state changes?
A6: Maximum response time is 4 ms from OFF to ON and 6 ms from ON to OFF.
Q7: Are there any special installation considerations?
A7: The module supports hot swapping, but field power should be disconnected before removing terminal blocks.
Q8: What are the module’s dimensions and weight?
A8: The dimensions are 137 x 35.6 x 151.7 mm, and the weight is 0.354 kg.
