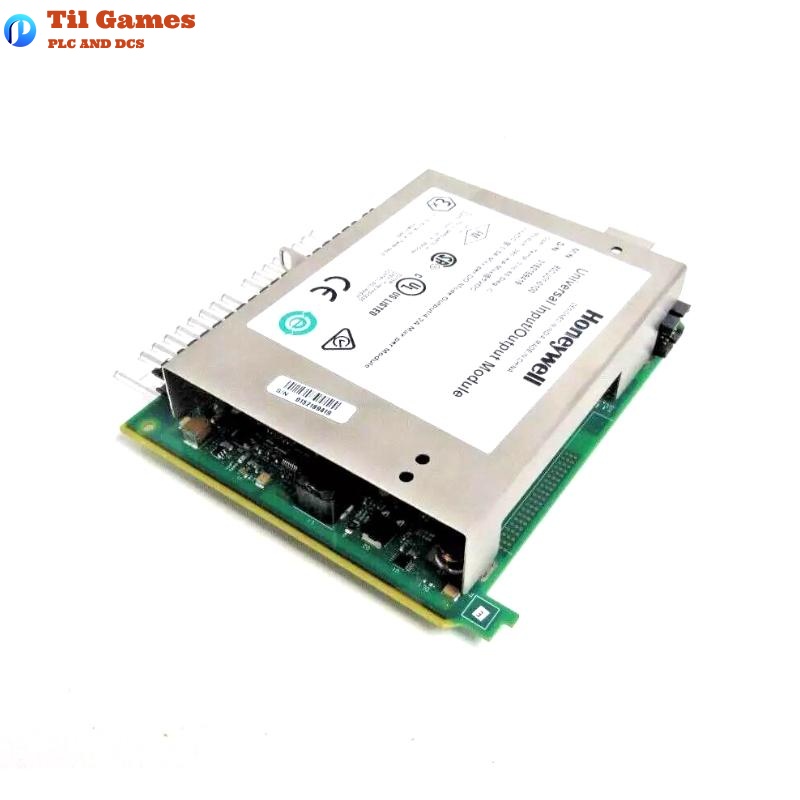

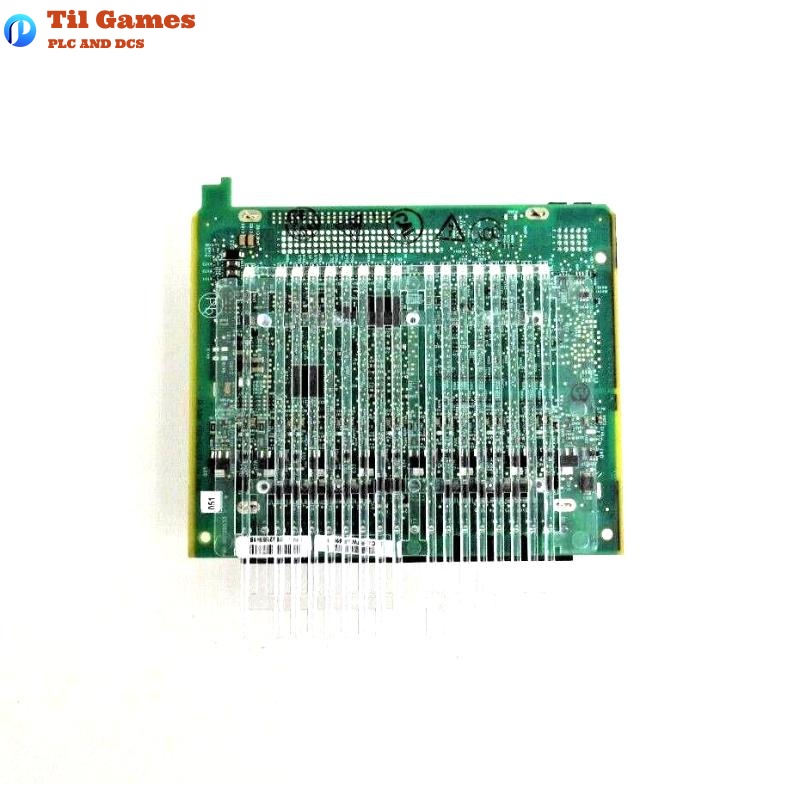

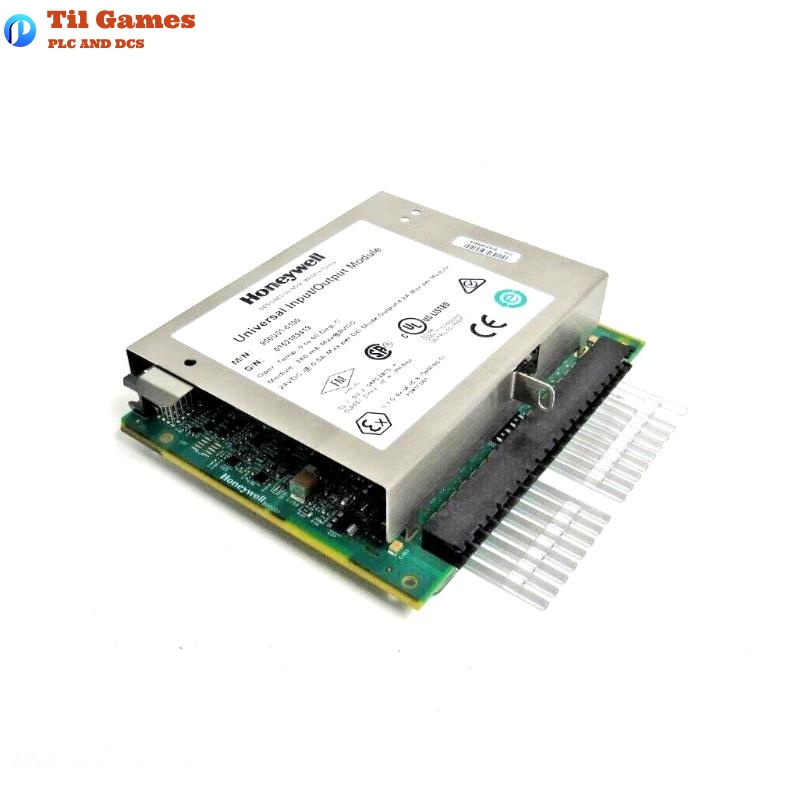

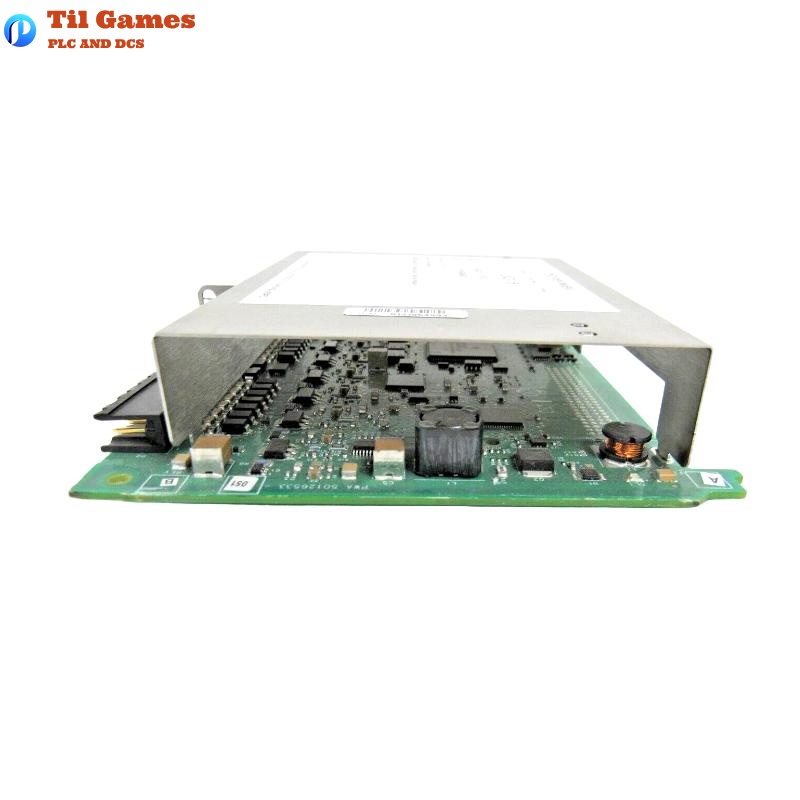

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Universal Input/Output (UIO) |
| Channels (Non-redundant) | 16 (isolated to rack) |
| Channels (Redundant) | 14 (isolated to rack) |
| Galvanic Isolation | 1.5 kV DC (module to rack, and module to module) |
| Field Supply Voltage | 22–27 VDC (typical 24 VDC) |
| Max Load Current (per module) | 4.2 A |
| Max Load Current (per channel) | 500 mA |
| Dimensions | 137 × 38.1 × 151.7 mm |
| Weight | 0.19 kg |
| Analog Input | |
| Input Type | 0–20 mA, 4–20 mA with HART support |
| Resolution | 16-bit |
| Accuracy | ±0.1% @ 23.5°C; ±0.25% from -40 to 70°C |
| Input Impedance | 250 Ω nominal |
| Max Input Voltage | 30 V |
| HART Devices Supported | 1 per channel |
| Analog Output | |
| Output Type | 4–20 mA, 0–20 mA with HART support |
| Channels | 6 max per module |
| Resolution | 12-bit |
| Accuracy | <0.5% FSR |
| Max Resistive Load | 500 Ω |
| Digital Input | |
| Voltage | 24 VDC typical |
| Input Current | ~7 mA short-circuit detection |
| Line Monitoring | Open wire detection available |
| Digital Output | |
| Output Type | Solid-state source, short circuit proof |
| Channels | 16 (non-redundant), 14 (redundant) |
| Max Load Current | 0.5 A/channel, 4.2 A/module |
| Fail-Safe Configuration | Yes (Hold/Set state) |
FAQ
FAQ
Q1: What types of signals are supported by the 900U01-0100 module?
A1: It supports 4-20 mA and 0-20 mA analog input/output with HART, and 24VDC digital input/output.
Q2: Does the module support HART communication protocol?
A2: Yes, each analog input and output channel supports communication with one HART device.
Q3: Is the module equipped with fault protection?
A3: Yes, each channel has electronic short circuit protection; faults in one channel will not affect others.
Q4: How many channels are supported?
A4: Up to 16 channels in non-redundant configuration, and 14 channels in redundant configuration.
Q5: Does the module support hot-swap installation?
A5: Yes, it can be inserted or removed while powered, without shutting down the system.
Q6: What is the maximum load current supported?
A6: Maximum 500 mA per channel, 4.2 A per module.
Q7: How does the module perform under extreme temperature conditions?
A7: It maintains ±0.25% full scale accuracy from -40°C to +70°C.
Q8: What are the module’s physical dimensions and weight?
A8: The module measures 137 × 38.1 × 151.7 mm and weighs 0.19 kg.
