Technical Specifications
| Parameter | Description |
|---|---|
| Model | Honeywell 900U02-0100 |

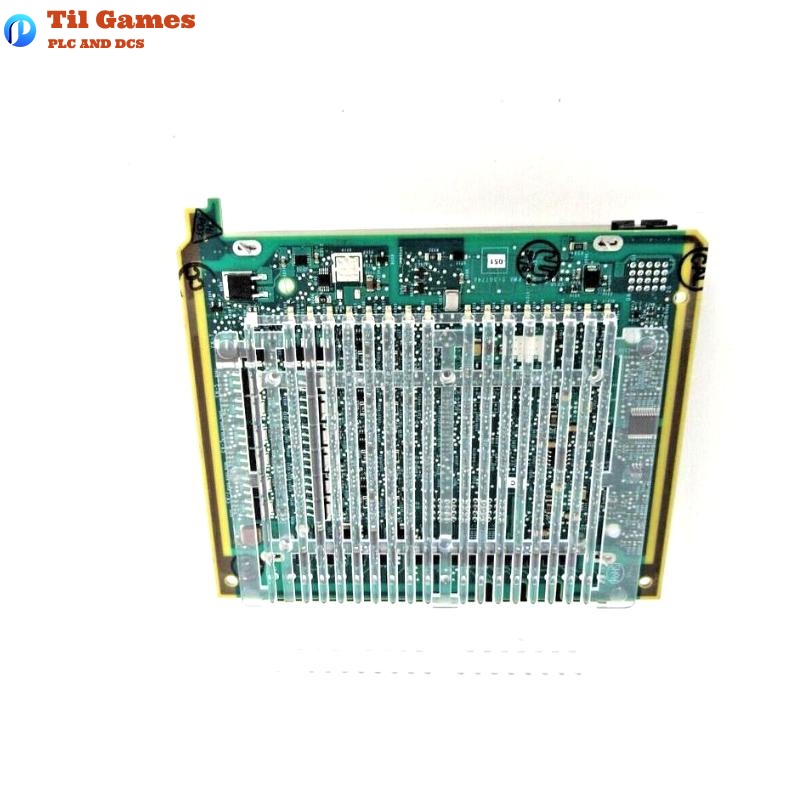

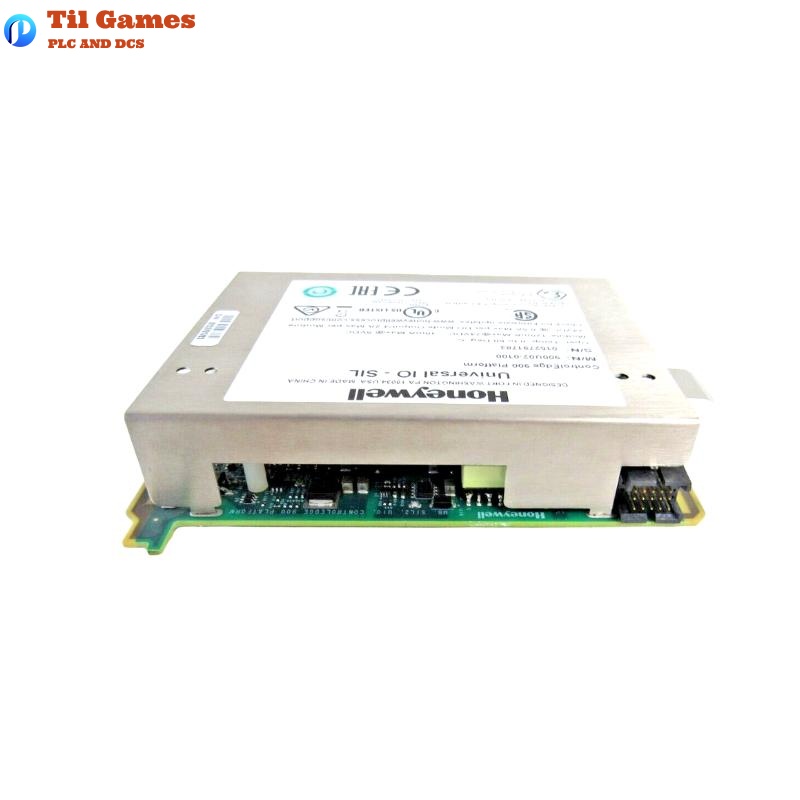

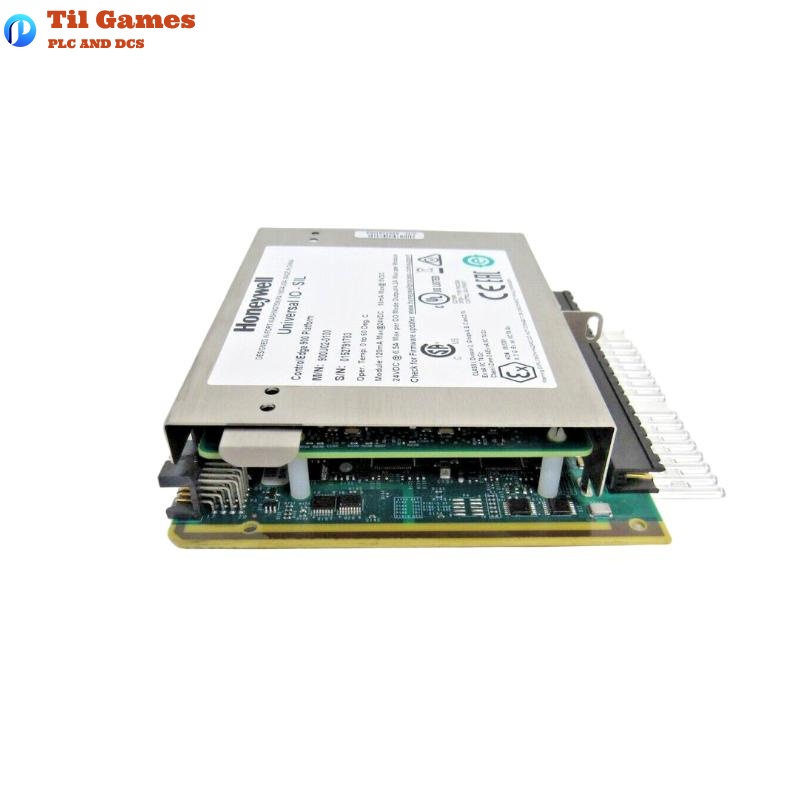

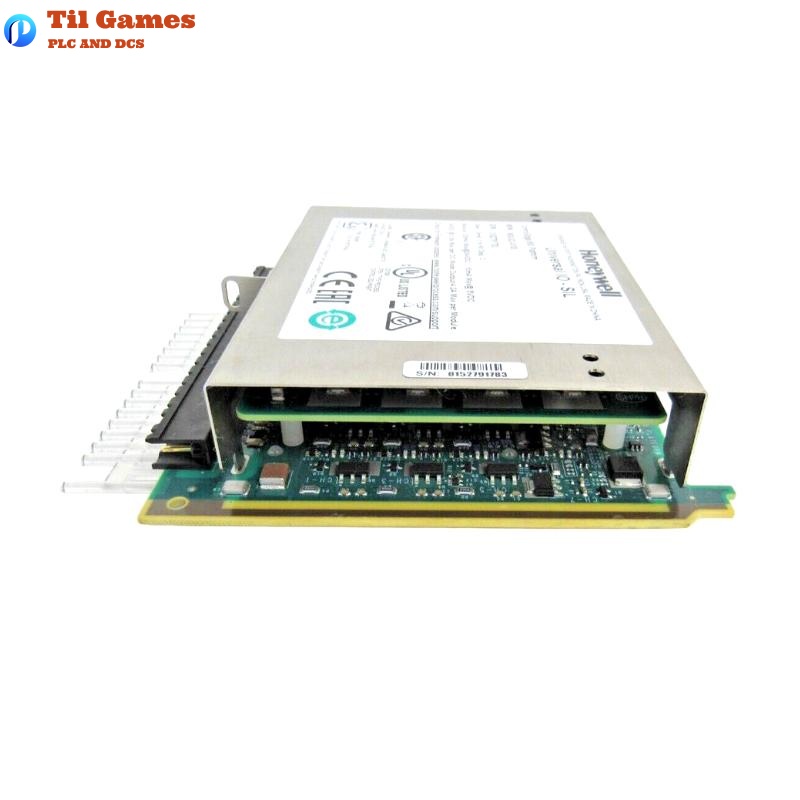

| Description | ControlEdge HC900 Safety Universal Input/Output Module |
| Channels | 16 channels (Universal I/O, galvanically isolated) |
| Supported Input Types | Voltage, Current, Thermocouple, RTD, Resistance, Slidewire |
| Galvanic Isolation | Yes, point-to-point and point-to-chassis |
| Failsafe Function | Configurable output value/state on communication failure |
| Field Calibration | Supported, with individual channel calibration |
| Diagnostics | Internal self-checks, including power and configuration |
| Mounting | DIN Rail (35mm) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Certification | CE, UL, FM, CSA, ATEX |
| Dimensions (H × W × D) | 137 × 33.1 × 151.7 mm |
| Weight | 0.26 kg |
FAQ
FAQ
Q1: What types of inputs and outputs are supported by the 900U02-0100 module?
A1: It supports voltage, current, thermocouple, RTD, resistance, and slidewire analog inputs, and both analog and digital outputs.
Q2: Does the 900U02-0100 support failsafe operations?
A2: Yes, it supports configurable failsafe values or states when communication with the controller is lost.
Q3: Can the module be hot-swapped?
A3: Yes, it supports hot insertion and removal under power, but the field terminal block power must be disconnected first.
Q4: Are the input channels galvanically isolated?
A4: Yes, the module provides both point-to-point and point-to-chassis galvanic isolation for noise immunity.
Q5: What are the typical application areas for this module?
A5: It is suitable for process automation, safety instrumented systems (SIS), and other high-reliability industrial environments.
Q6: Does the module support individual channel field calibration?
A6: Yes, each channel can be individually field-calibrated to improve accuracy.
Q7: How is the module mounted?
A7: The module is mounted using a standard 35mm DIN rail.
Q8: Is the module compliant with international standards?
A8: Yes, it is certified to CE, UL, FM, CSA, and ATEX standards.
