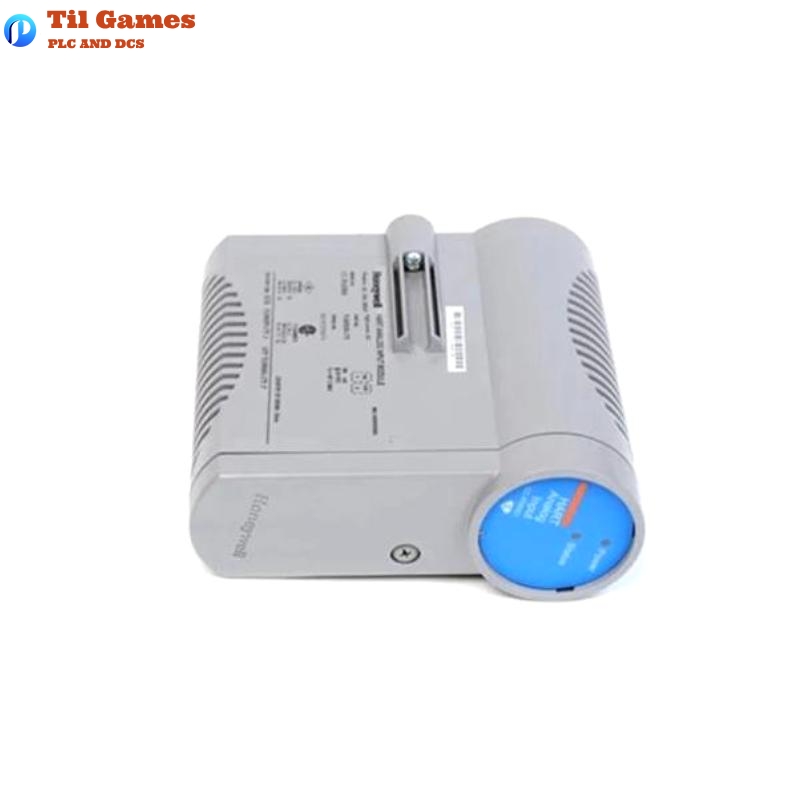

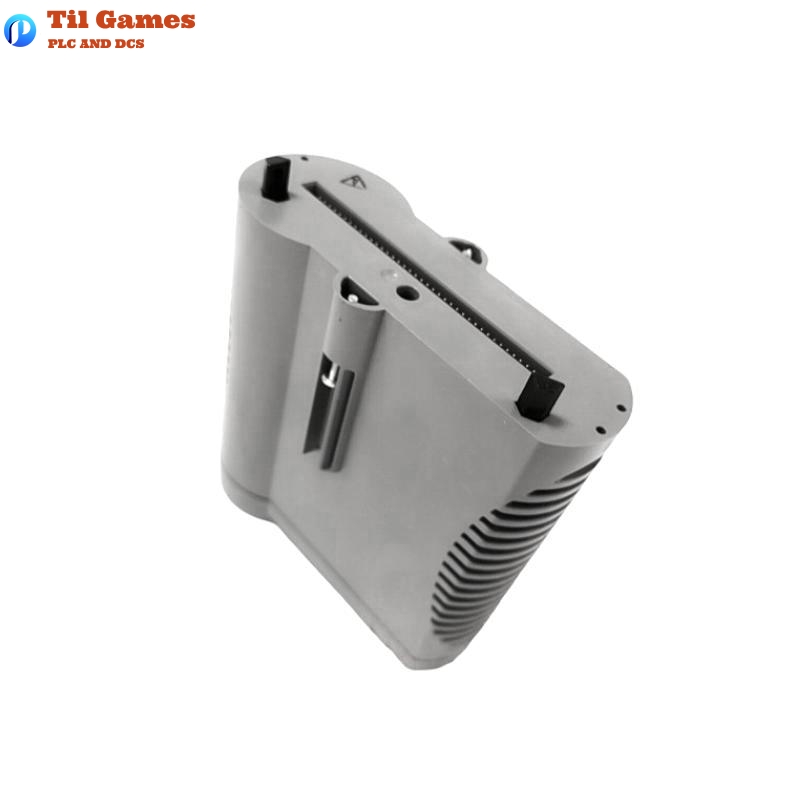

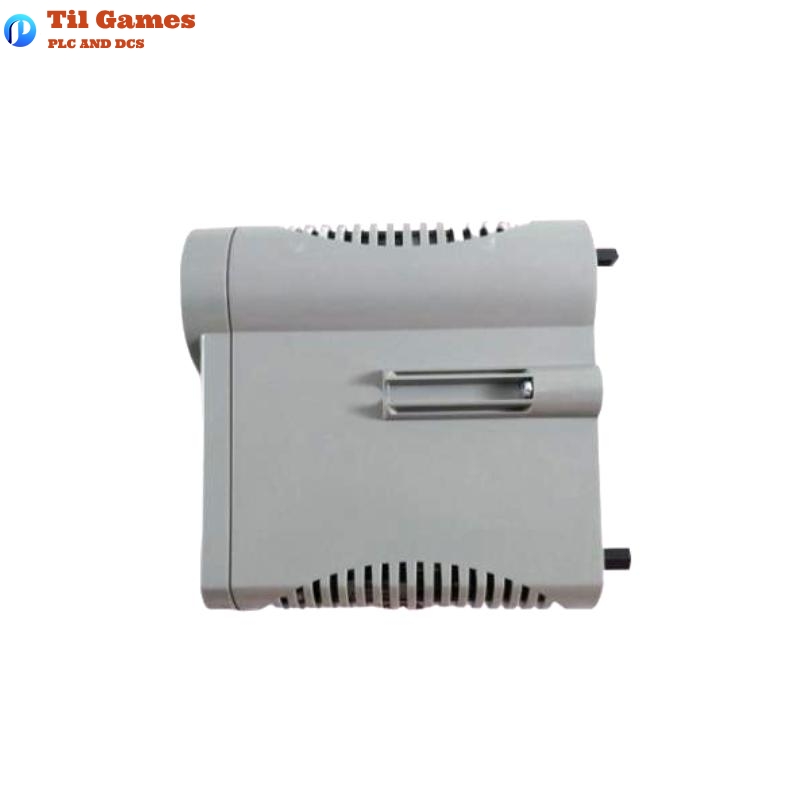

Honeywell CC-PAIH51 51410069-275 Experion Series-C Analog Input Module

FAQ (Q&A Format)

Q1: What input types does the Honeywell CC-PAIH51 module support?
A1: The CC-PAIH51 module supports high-level current inputs from 2-wire or self-powered transmitters.

Q2: How many input channels does the CC-PAIH51 module provide?
A2: The CC-PAIH51 module provides 16 channels, all of which are single-ended.

Q3: What is the A/D converter resolution of the module?
A3: The module features a 16-bit A/D converter resolution.

Q4: What is the input range for the CC-PAIH51 module?
A4: The input range for this module is 4-20 mA only, through a 200 Ω resistor.

Q5: What is the hardware accuracy of the module?
A5: The hardware accuracy is ± 0.075% of full-scale at 23.5°± 2°C and ± 0.15% of full-scale at 0 to 60°C.

Q6: What is the scan rate for the module?
A6: The input scan rate for the CC-PAIH51 module is 50 milliseconds.

Q7: What power conditioning is available for the module’s transmitters?
A7: The module has individually protected current limiting circuits for Class 1, Div 2 non-incendive interfacing, and no fusing is required.

Q8: What are the dimensions and weight of the module?
A8: The module’s dimensions are 63.5 x 124.46 x 307.34 mm and its weight is 0.299 kg.

51410069-275 Analog Input Module CC-PAIH51 Experion Series-C Honeywell
