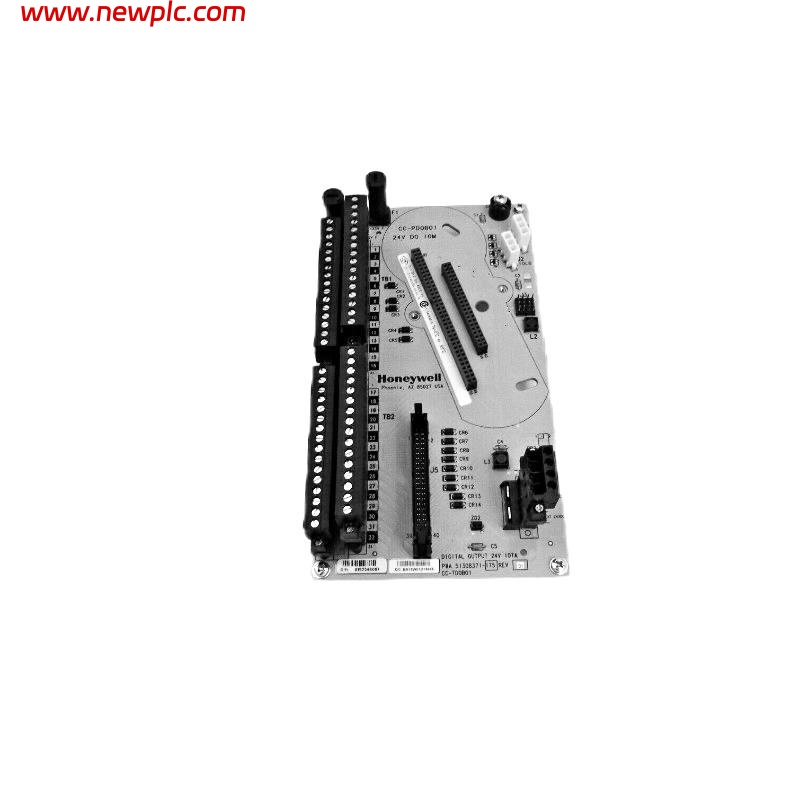

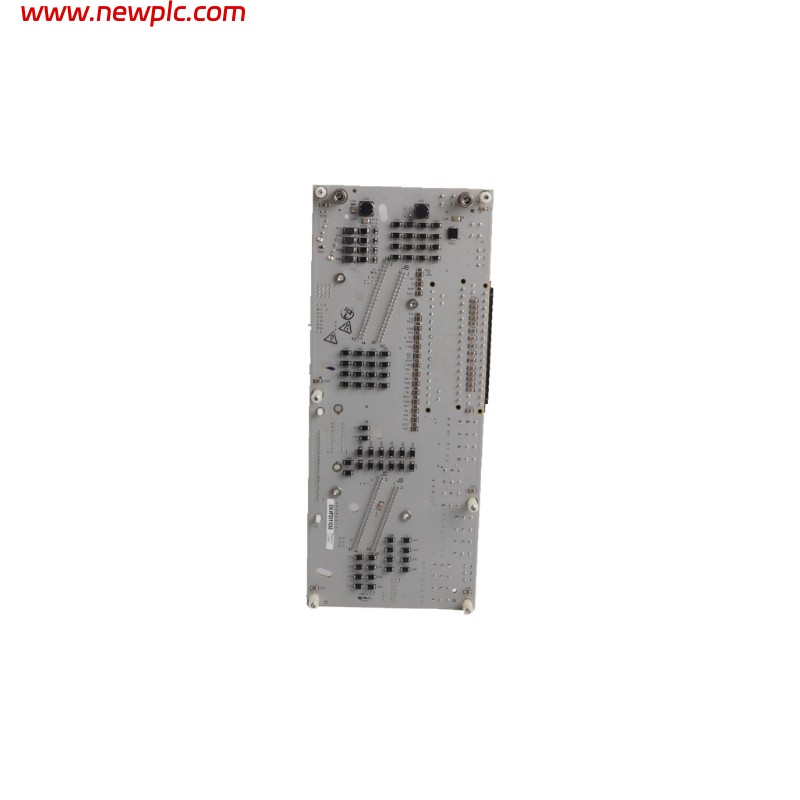

Honeywell CC-TD0B01 Digital Output Module Unbelievable Prices

FAQ

Q: What type of output signal does this module support?
A: It provides 8 independent sinking digital outputs for controlling field devices that receive 24V DC power.

Q: What is the maximum load capacity per output channel?
A: The maximum rated load current per output channel is 0.5 Amps.

Q: Does the module require an external power supply?
A: Yes, it requires two power sources: one is the 5V DC backplane power (provided by the base), and the other is a 24V DC field power supply used to power the output loads.

Q: Are the output channels isolated from each other?
A: No, the 8 output points are not isolated from each other. However, they are isolated from the backplane logic circuitry.

Q: Is this module suitable for use in safety-critical environments?
A: Yes, it carries certifications such as ATEX and IECEx, indicating its suitability for use in hazardous environments with potentially explosive atmospheres.

Q: What are the module’s dimensions and weight?
A: The module dimensions are 86 x 32 x 16 mm, and it weighs 0.6 kg.

Q: How is the module installed into a control system?
A: The module plugs into a dedicated Honeywell process control system base unit via a connector on its bottom side.

Q: How are field wires connected?
A: Power and signal lines for field devices are connected to the field wiring terminal block on the front of the module via screw terminals.
