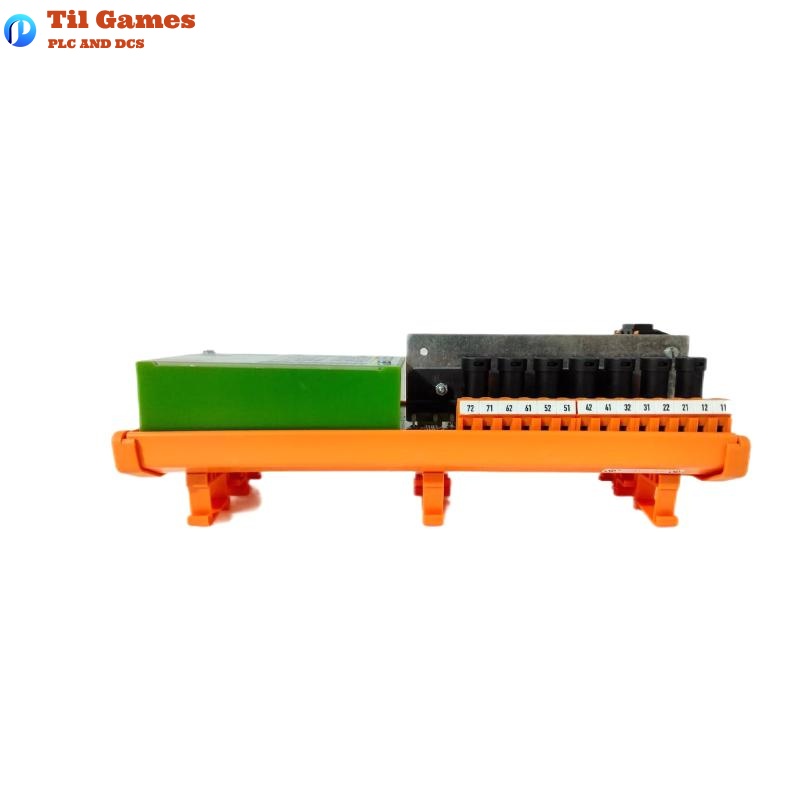

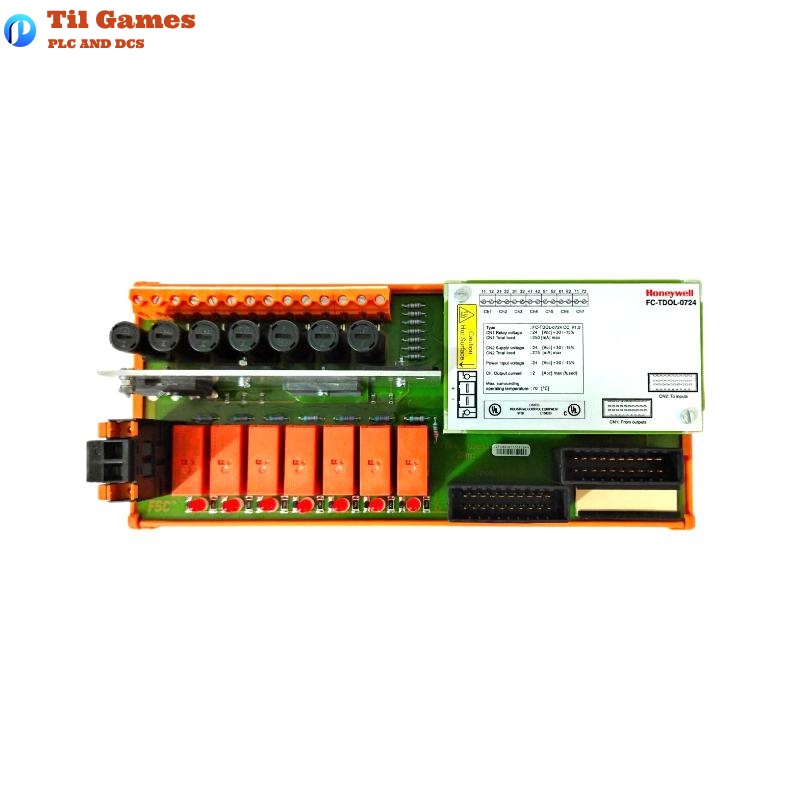

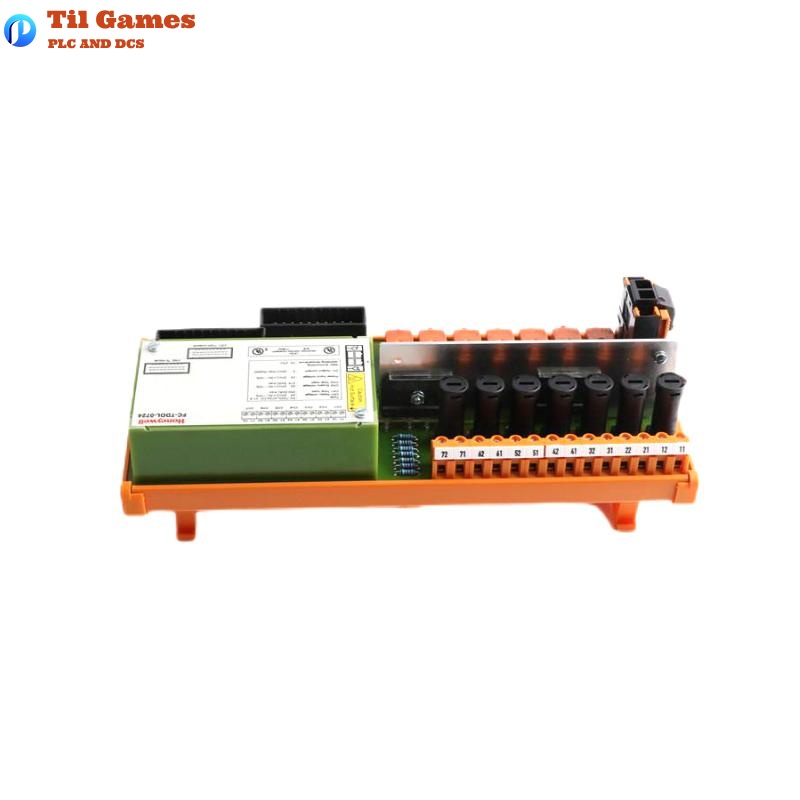

Technical Specifications
| Category | Specification |
|---|---|
| Model Number | FC-TDOL-0724P |
| Output Channels | 7 channels |
| Max Output Current | 2 A per channel |
| Output Type | 24V DC, resistive or inductive load with diode |
| Output Voltage Range | 24 V DC ±20% |
| No Load Voltage | OFF: 90% of supply, ON: 100% of supply |
| Max Load Resistance | 2200 Ω |
| Leakage Current | Approx. 1.1 mA at 24 V |
| Short Circuit Threshold | 200Ω < RTh < 400Ω |
| Max Switched Power | 150 W |
| Electrical Life | 100,000 operations |
| Mechanical Life | 30,000,000 operations |
| Fuse Specification | 2 A, 5×20 mm, 250V AC / 300V DC, Littelfuse 0213002 |
| Power Consumption (idle) | < 9 mA (Field Power) |
| Power (Relay + Ch8) | Max 250 mA |
| Readback Circuit | Max 275 mA (redundant SDI-1624) |
| Mounting Type | DIN rail (TS32 / TS35 × 7.5) |
| Rail Length Used | 241 mm |
| Dimensions (L×W×H) | 240 × 109 × 80 mm |
| Weight | 0.62 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does FC-TDOL-0724P support?
A1: It supports 7 individual relay contact outputs, each rated for up to 2 A.
Q2: Can inductive loads be used?
A2: Yes, inductive loads with a spark suppression diode are supported.
Q3: How is short circuit detection handled?
A3: Short circuits are detected via resistance thresholds; anything below 400Ω may trigger detection.
Q4: What is the mounting method for the module?
A4: It mounts on standard DIN EN rails, TS32 or TS35 × 7.5.
Q5: Does the module support redundancy?
A5: Yes, it works with redundant SDO-0824 and SDI-1624 modules.
Q6: Are there protective measures in place?
A6: Each output channel is protected by a 2 A fuse (5×20 mm).
Q7: What is the power consumption of the module?
A7: Idle consumption is below 9 mA; total may reach up to 275 mA under maximum load.
Q8: What certifications does FC-TDOL-0724P have?
A8: CE and TUV certified; UL and CSA certifications are pending.
