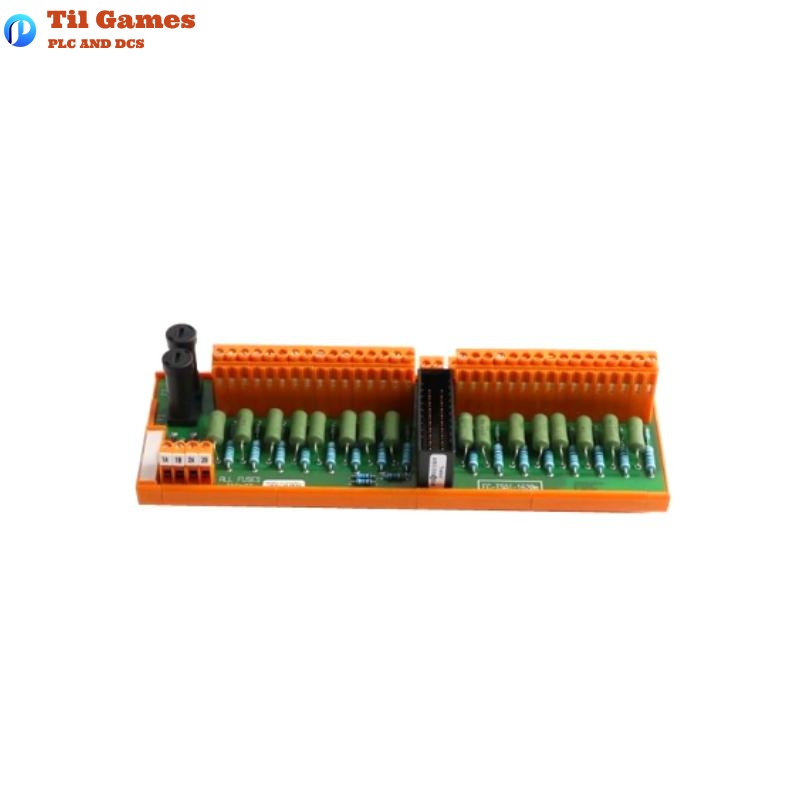

Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | FC-TIDI-1624 |
| Input Channels | 16 non-safe isolated input channels |
| Nominal Input Voltage | 24 V DC |
| Pick-up Voltage | 17.5 V DC |
| Drop-out Voltage | 2.8 V DC |
| Max Input Voltage | 47.5 V DC |
| Max Reverse Voltage | 300 V |
| Input Current | Typically 9 mA at 24 V DC |
| Max Switching Frequency | 20 Hz |
| Polarity Protection | Series diode |
| Isolation Voltage | 1000 V AC input-to-input and input-to-output |
| Mounting Style | DIN EN rail (TS32 / TS35 × 7.5) |
| Used Rail Length | 266 mm (10.47 in) |
| Terminal Type | Screw terminals, max wire 2.5 mm² (AWG14) |
| Strip Length | 7 mm |
| Torque | 0.5 Nm (0.37 ft-lb) |
| Electrical Lifetime | 1,000,000 operations |
| Mechanical Lifetime | 10,000,000 operations |
| Module Dimensions (L×W×H) | 265 × 70 × 48 mm |
| Module Weight | 0.16 kg |
| Certifications | CE, TUV, UL, CSA |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the FC-TIDI-1624 module used for?
A1: It is a non-safe isolated passive digital input module for connecting 24 V DC field input signals.
Q2: How many input channels does it support?
A2: It supports 16 digital input channels.
Q3: Does the module provide input isolation?
A3: Yes, it provides 1000 V AC isolation between inputs and from input to output.
Q4: What is the maximum input voltage supported?
A4: The maximum input voltage is 47.5 V DC, with 300 V reverse voltage protection.
Q5: What is the supported switching frequency?
A5: The maximum switching frequency is 20 Hz.
Q6: How is the module mounted?
A6: It is mounted on standard DIN rails (TS32 / TS35).
Q7: What are the expected lifespans?
A7: Electrical lifetime is 1,000,000 operations; mechanical lifetime is 10,000,000 operations.
Q8: Does the module have polarity protection?
A8: Yes, reverse polarity protection is provided via a series diode.
