Technical Specifications
| Parameter | Specification |
|---|---|

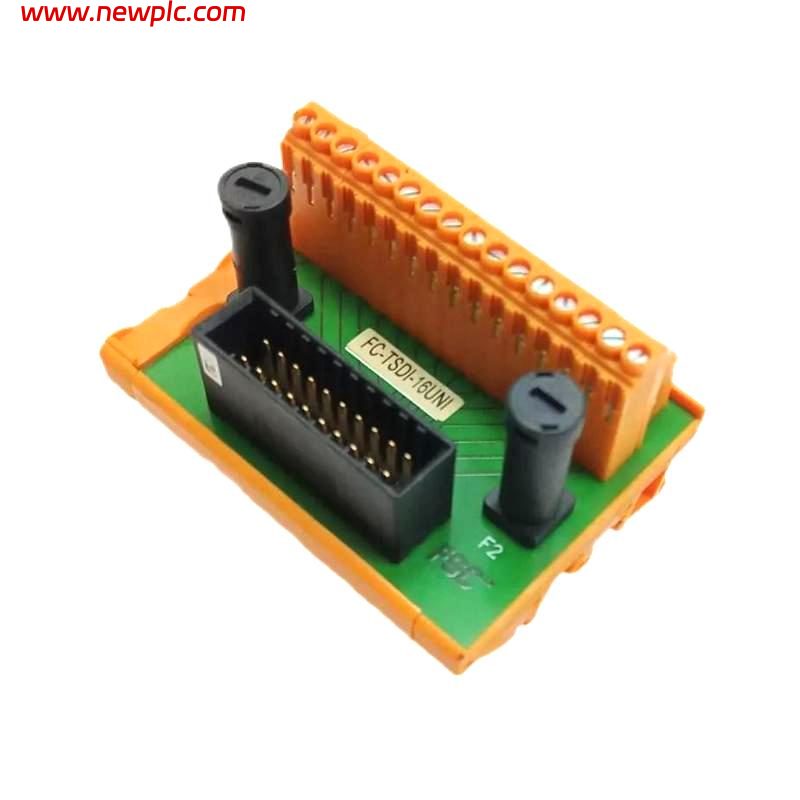

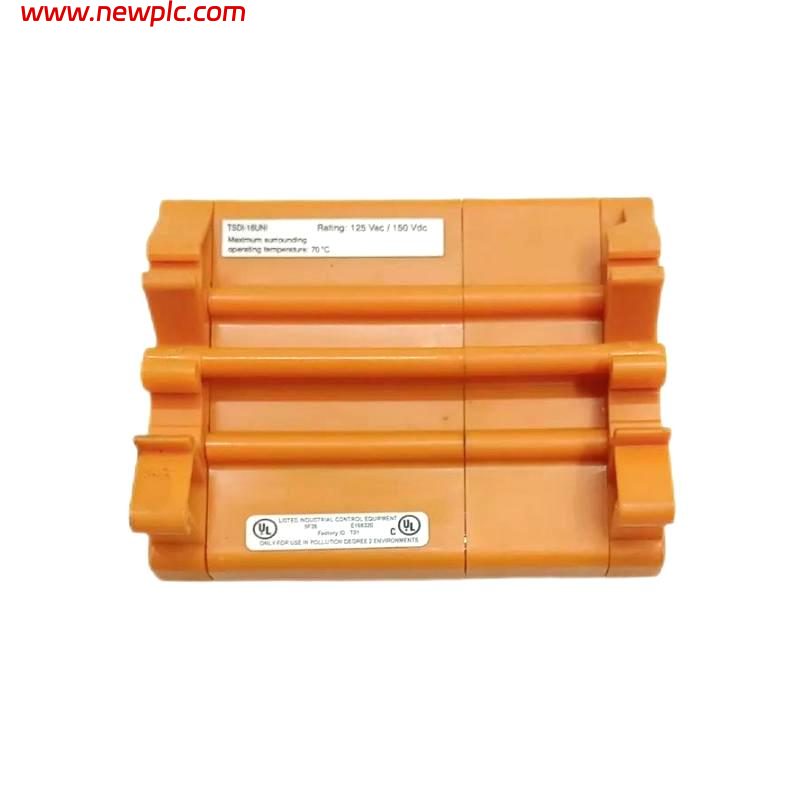

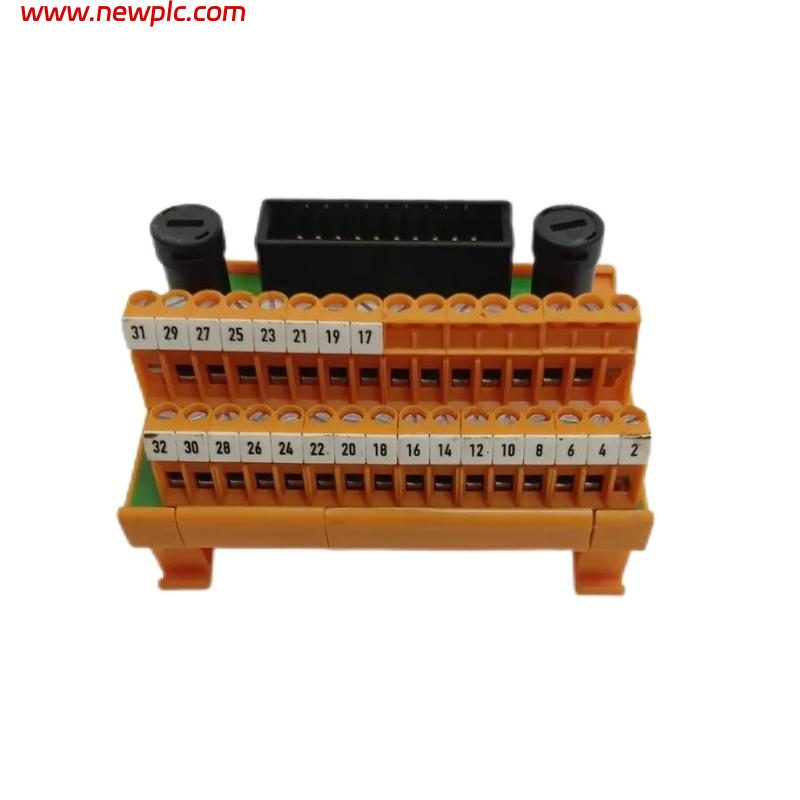

| Part Number | FC-TSDI-16UNI |
| Manufacturer | Honeywell |
| Series | Safety Manager / FSC Series |
| Product Type | 16-Channel Universal Safe Digital Input Module |
| Function | Receives and monitors digital input signals from field devices in safety instrumented systems (SIS) |
| Number of Channels | 16 |
| Input Type | Universal Digital Inputs (Dry Contact, NAMUR, 24 VDC Digital Signals) |
| Input Voltage | 24 VDC Nominal |
| Isolation | Channel-to-System Isolation |
| Diagnostics | Line fault detection, short-circuit detection, open-circuit detection, module diagnostics |
| Safety Integrity | TÜV Certified for SIL Applications (system dependent) |
| Communication | Internal Safety Manager backplane communication |
| Mounting Type | Chassis / Rack Mounted |
| Redundancy Support | Supported in redundant Safety Manager architectures |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Class | IP20 |
| Application | Emergency Shutdown (ESD), Fire & Gas (F&G), Burner Management Systems (BMS), Process Safety Systems |
| Dimensions (H × W × D) | ≈ 180 × 35 × 210 mm |
| Weight | ≈ 0.5 kg |
FAQ
FAQ
Q1: What is FC-TSDI-16UNI used for?
It is a 16-channel universal digital input module used in Honeywell Safety Manager safety systems for monitoring field input signals.
Q2: How many input channels does it provide?
It provides 16 digital input channels.
Q3: What types of input signals are supported?
It supports dry contacts, NAMUR sensors, and standard 24 VDC digital signals.
Q4: Does the module provide diagnostics?
Yes, it includes open-circuit, short-circuit, line fault, and internal module diagnostics.
Q5: Is it suitable for SIL-rated applications?
Yes, it is designed for use in Safety Integrity Level (SIL) applications within certified Safety Manager systems.
Q6: Does it support redundant systems?
Yes, it can be used in redundant Safety Manager architectures.
Q7: What are its dimensions?
Approximately 180 × 35 × 210 mm (H × W × D).
Q8: What is its weight?
Approximately 0.5 kg.
