Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | MC-TAIH53 (51309138-275) |
| Manufacturer | Honeywell |
| Series | Experion PKS / TPS |

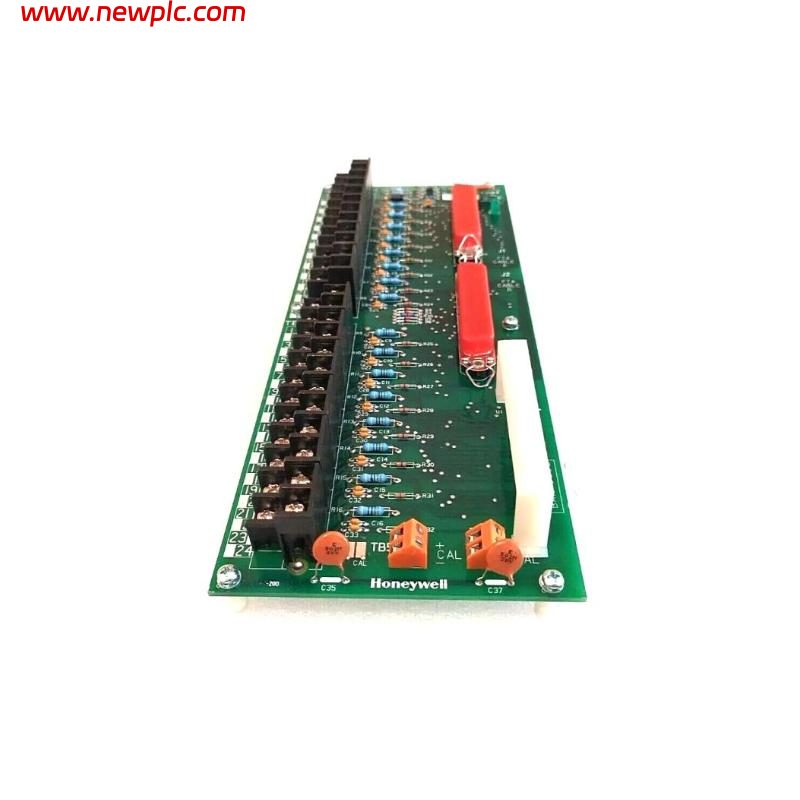

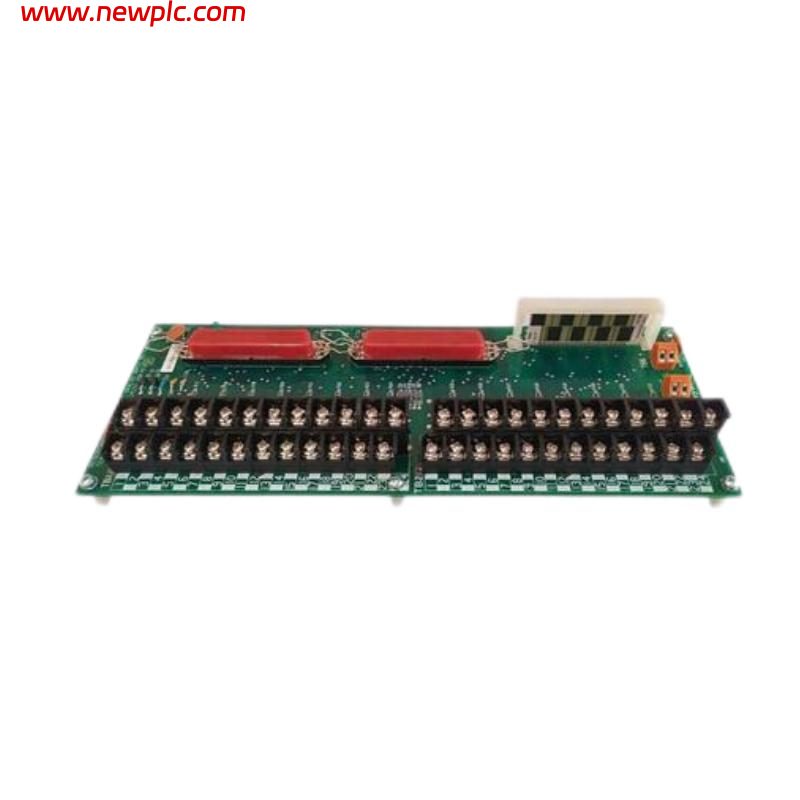

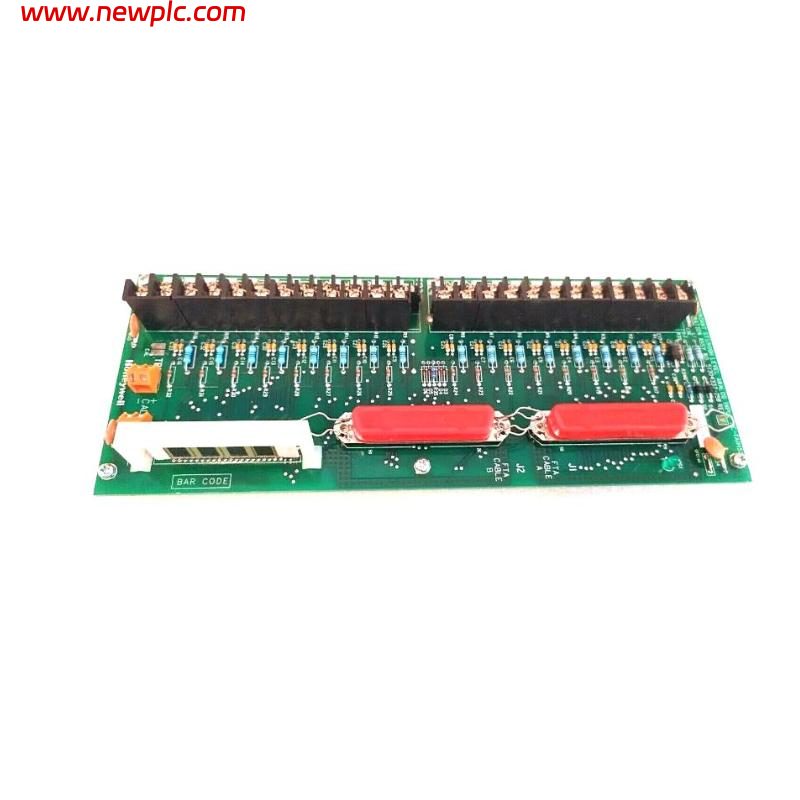

| Product Type | Analog Input High-Level Multiplexer Terminal Assembly |
| Function | Provides field termination and signal distribution for high-level analog input channels |
| Supported Signal Types | 0–20 mA, 4–20 mA, 1–5 V, 0–10 V (module dependent) |
| Channel Capacity | 16 Channels |
| Wiring Type | Screw Terminal Connections |
| Isolation | Channel-to-System Isolation (via associated I/O module) |
| Redundancy Support | Compatible with redundant I/O architectures |
| Compatible I/O Modules | Honeywell HART AI, Analog Input Modules, FTA-based I/O systems |
| Mounting Type | Cabinet / Panel Mounted |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Application | Process control, DCS analog signal acquisition, industrial automation |
| Dimensions (H × W × D) | ≈ 305 × 165 × 75 mm |
| Weight | ≈ 1.2 kg |
FAQ
FAQ
Q1: What is MC-TAIH53 (51309138-275) used for?
It is a field termination assembly used to connect and distribute analog input signals to Honeywell Experion PKS and TPS I/O systems.
Q2: How many channels does it support?
It supports up to 16 analog input channels.
Q3: What signal types can it handle?
Typical supported signals include 4–20 mA, 0–20 mA, 1–5 V, and 0–10 V, depending on the connected I/O module.
Q4: Is MC-TAIH53 an I/O module?
No. It is a Terminal Assembly (FTA) and must be used with a compatible Honeywell analog input module.
Q5: Does it support redundant control systems?
Yes, it is compatible with Honeywell redundant I/O architectures when used with appropriate modules.
Q6: What systems use MC-TAIH53?
It is commonly used in Honeywell Experion PKS and TPS (TotalPlant Solution) systems.
Q7: What are its dimensions?
Approximately 305 × 165 × 75 mm (H × W × D).
Q8: What is its weight?
Approximately 1.2 kg.
