Technical Specifications
| Item | Specification |
|---|---|
| Cable Type | Distribution Cable |

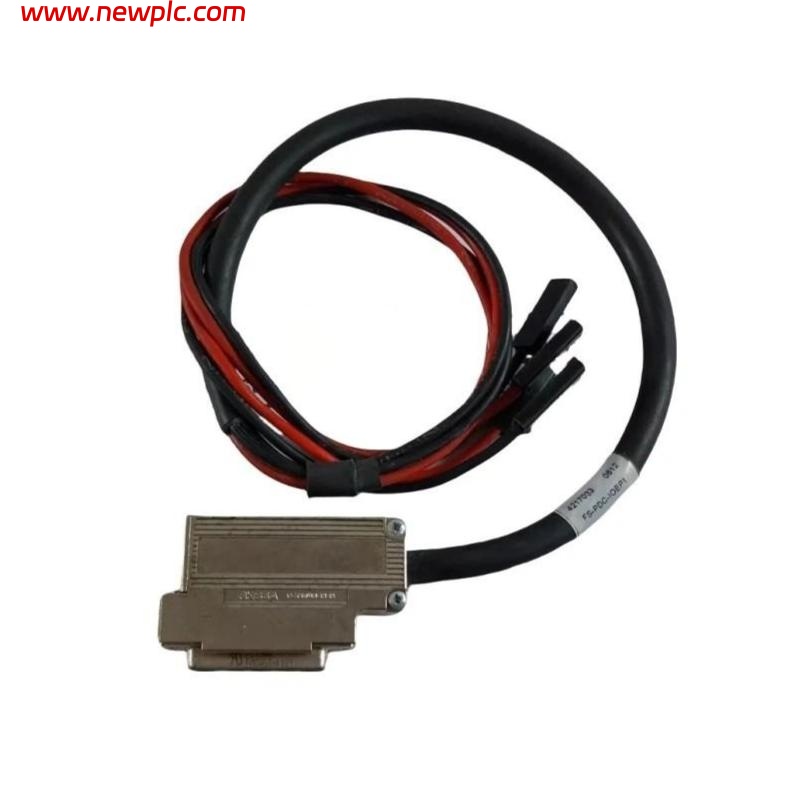

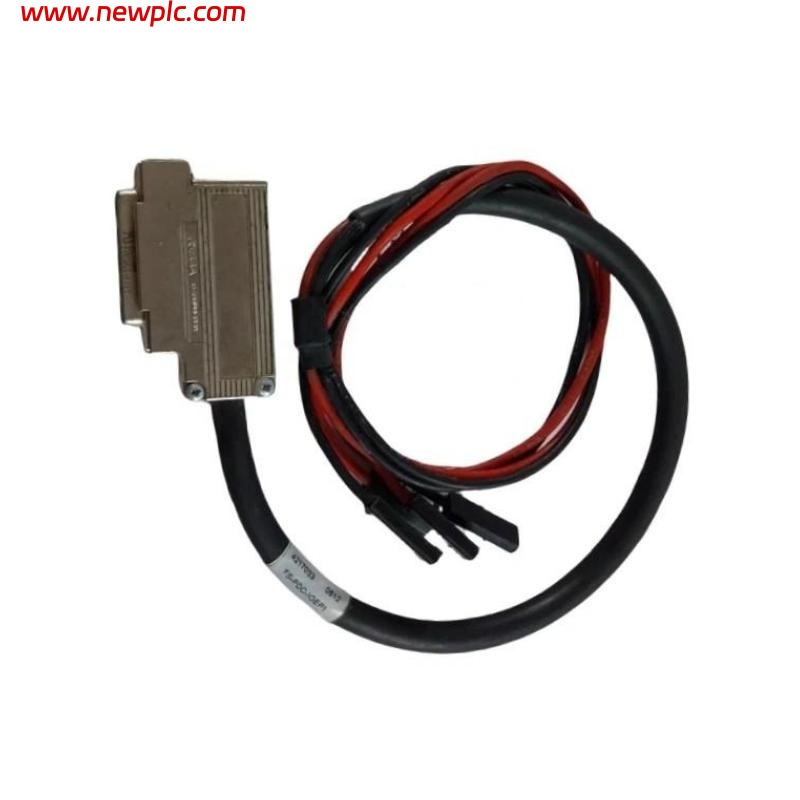

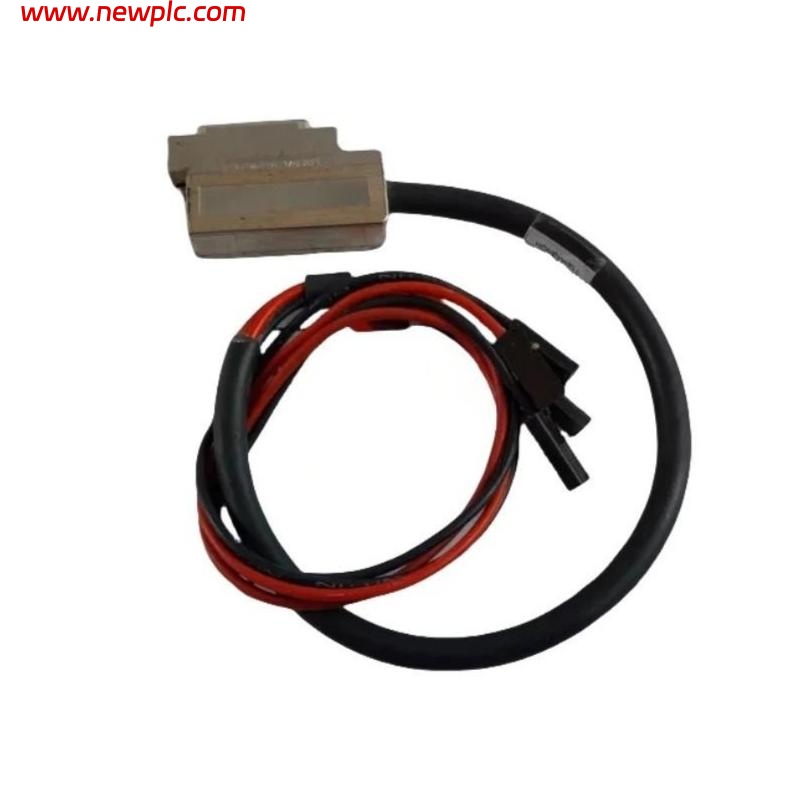

| Model | FS-PDC-FTA24-3 |
| Function | Used for distributing field signals between I/O modules and termination assemblies |
| Connector Type | Factory-terminated connectors compatible with Honeywell FTA systems |
| Cable Length | 2 meters |
| Conductor Type | Multi-core copper conductors |
| Conductor Size | 0.5 mm² per core |
| Shield Type | Overall braided shield for noise reduction |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Rated Voltage | 300 V |
| Rated Temperature | 80°C |
| Color | Standard industrial grey |
| Flexibility | High-flex rated for industrial environments |
| Dimensions | Cable length 2m |
| Weight | Shipping weight: 3 kg |
| Operating Temperature | -10 to 60°C |
| Storage Temperature | -25 to 70°C |
| Application | Used in safety and control systems for reliable signal transmission |
FAQ
FAQ
Q1: What is the function of the FS-PDC-FTA24-3 Distribution Cable?
It is used to distribute field I/O signals between Honeywell I/O modules and termination assemblies (FTA).
Q2: What is the cable length?
The cable has a standard length of 3 meters.
Q3: What type of connectors are used?
It uses factory-terminated connectors designed to fit Honeywell FTA systems.
Q4: What is the conductor type and size?
The cable features multi-core copper conductors, each with a cross-sectional area of 0.5 mm².
Q5: Does the cable have shielding?
Yes, it has an overall braided shield to protect against electrical interference.
Q6: What is the rated voltage and temperature?
The rated voltage is 300 V, and the rated operating temperature is up to 80°C.
Q7: What are the dimensions and weight of the cable?
The cable length 2m, and shipping weight: 3 kg.
Q8: In what environments can this cable be used?
It is suitable for use in industrial control and safety system environments requiring stable signal transmission.
