Manufacturer：Honeywell
Product Number：FS-SDO-0824

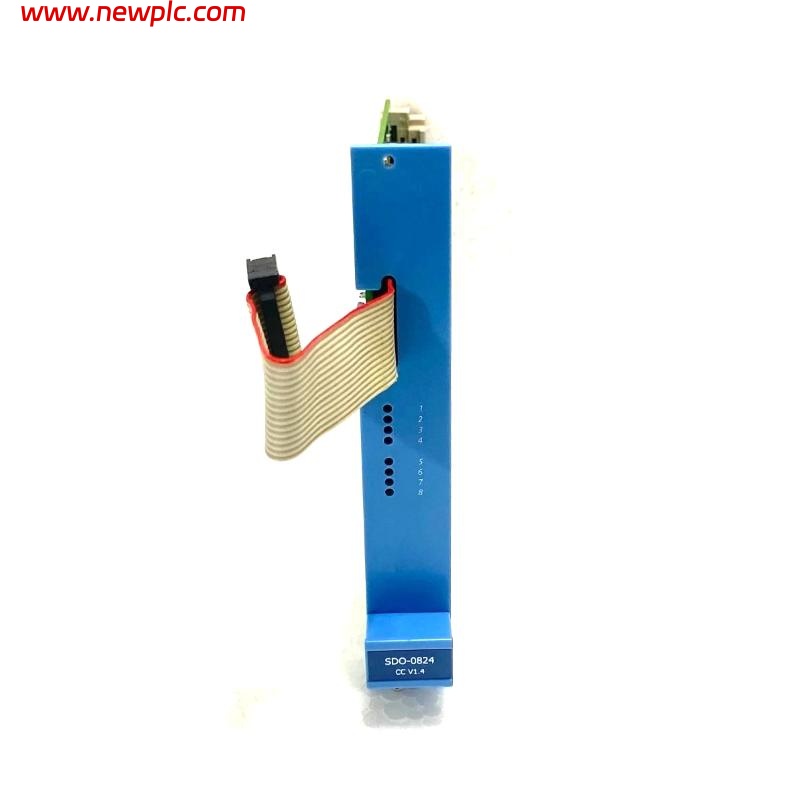

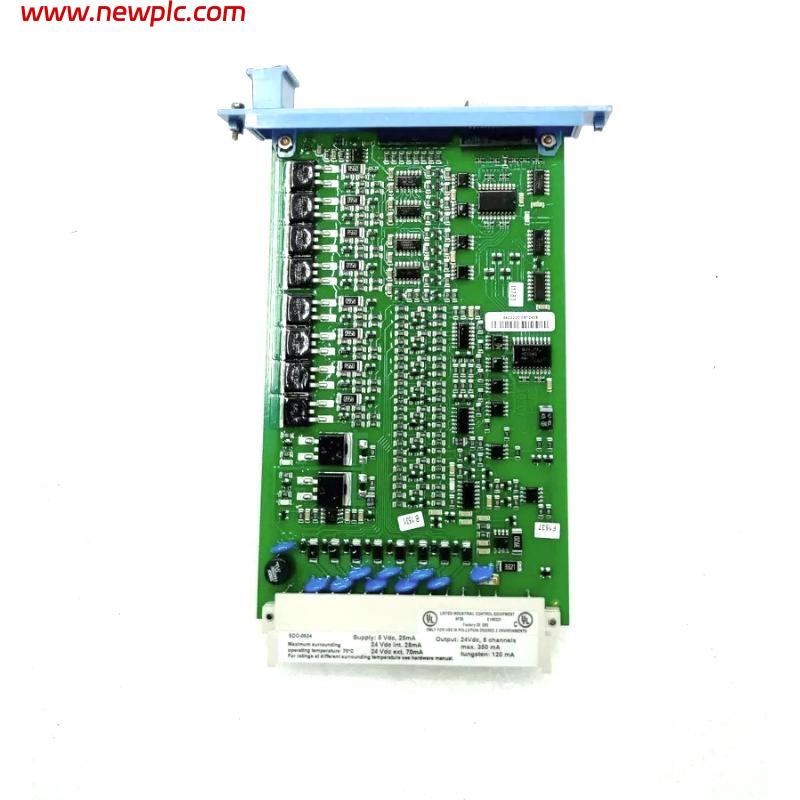

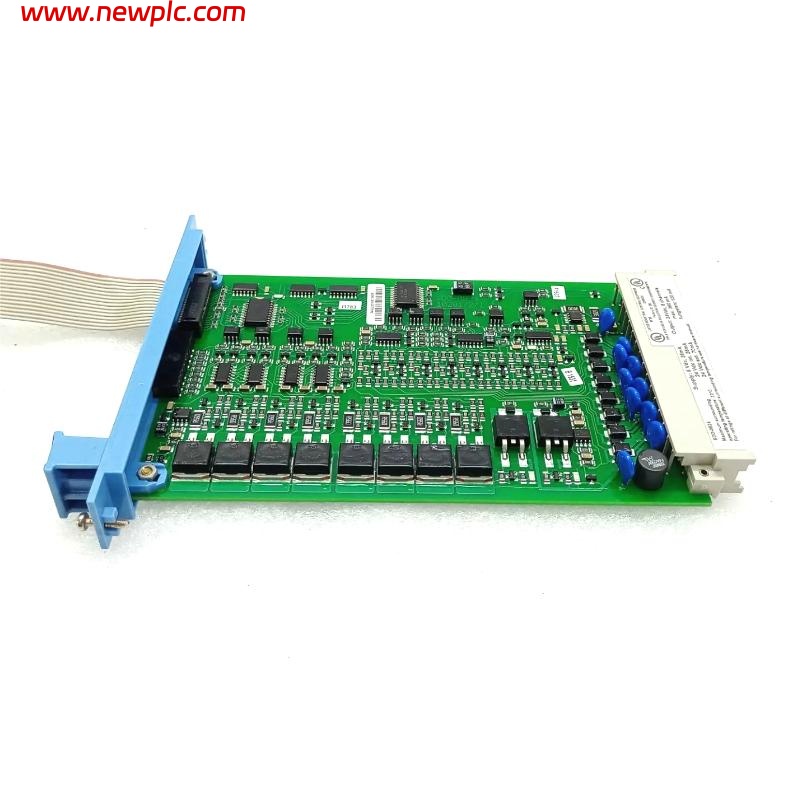

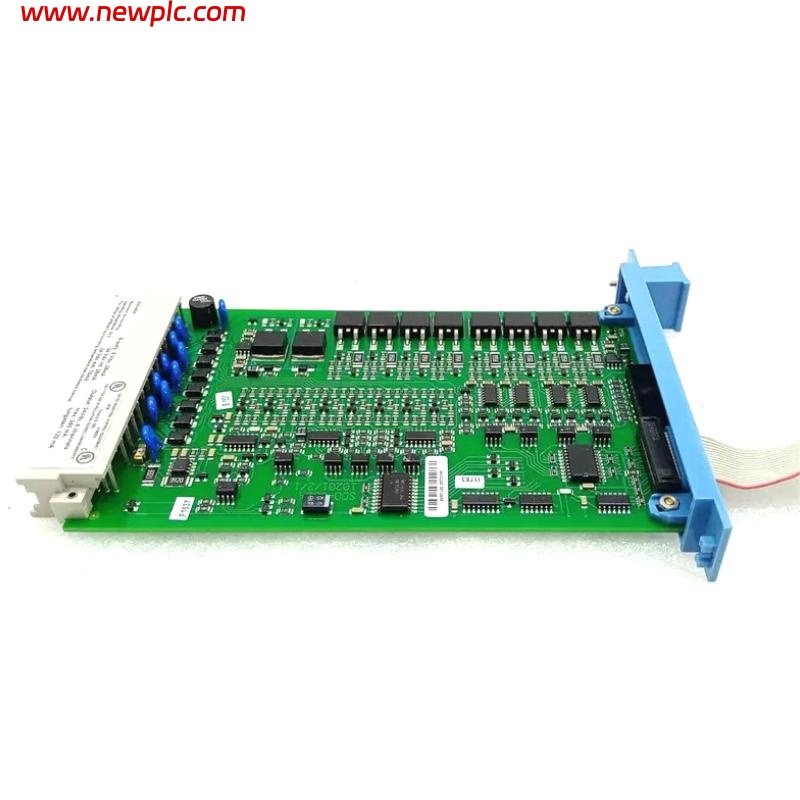

Product Type：Safe Digital Output Module
Origin：USA
Dimensions：20.32 x 133.35 x 156 mm
Weight：0.7 kg
FAQ
FAQ
-
Q1: What types of loads can the FS-SDO-0824 safely drive?
A: It can drive resistive loads like lamps and inductive loads such as solenoids up to 13 W per channel, with suppression diodes included for inductive loads. -
Q2: How does the module ensure safe operation for each output?
A: Each output, including its suppression diode, is fully tested. The module also features secondary means of de-energizing to maintain safety even if the primary function fails. -
Q3: What is the purpose of the secondary means of de-energizing (SMOD)?
A: SMOD allows the watchdog and processor to de-energize outputs independently of the application logic, enhancing functional safety. -
Q4: How are the outputs organized for diagnostic purposes?
A: The eight outputs are split into two groups of four, and each group is independently monitored during the configured Diagnostic Test Interval. -
Q5: What tests are performed during the Diagnostic Test Interval?
A: The module tests the ability to de-energize each output, de-energize the group, detect crosstalk, and verify suppression diode function. -
Q6: What is the maximum current each output can handle?
A: Each output can handle up to 0.55 A safely, corresponding to a maximum load of 13 W. -
Q7: Can this module be used in SIL-rated safety systems?
A: Yes, the fully tested outputs and secondary de-energizing features make it suitable for SIL-compliant applications. -
Q8: What are the physical dimensions and weight of the FS-SDO-0824?
A: The module measures 20.32 × 133.35 × 156 mm and weighs 0.7 kg.
