Technical Specifications
| Parameter | Description |
|---|---|
| Model | MC-GAIH13 |

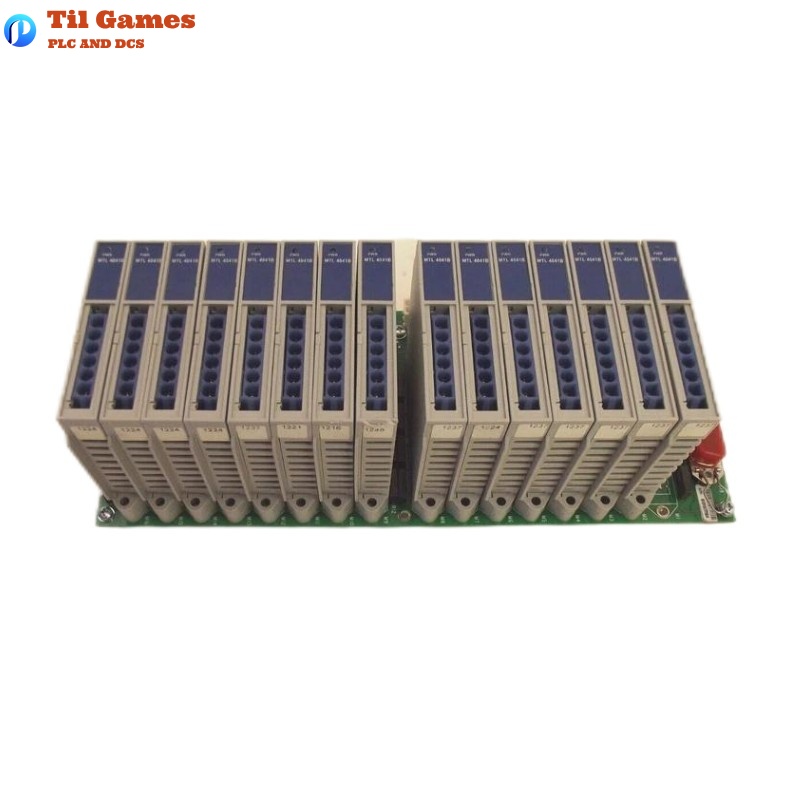

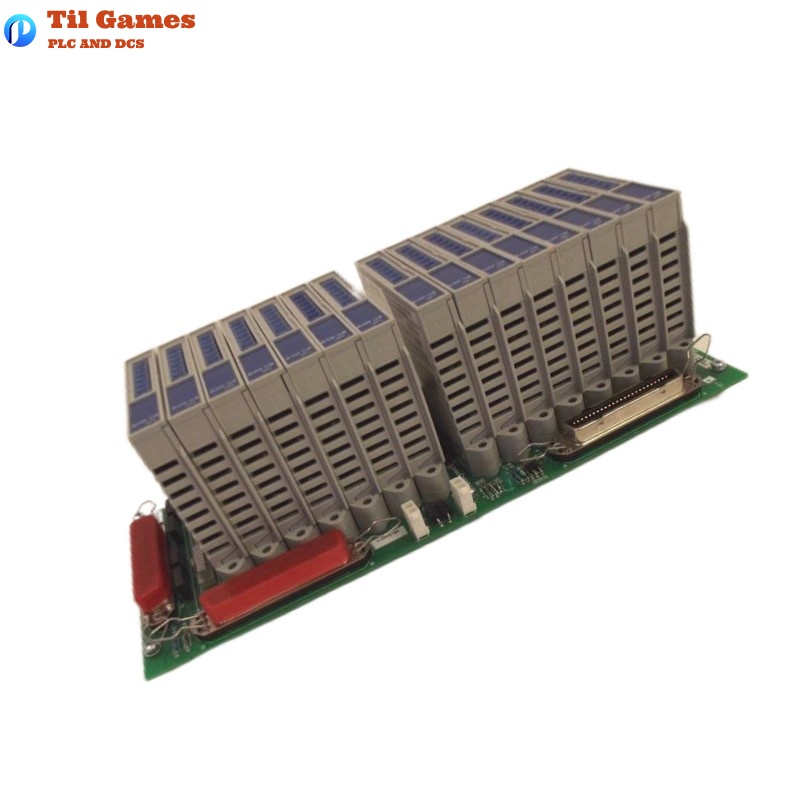

| Description | HLAI/STI Galvanically Isolated FTA Module |
| Input Signal Type | High-Level Analog Input / Smart Transmitter Interface |
| Channels | 16 isolated input channels |
| Isolation Type | Galvanic isolation |
| Isolation Voltage | 1000 VDC (channel to channel and channel to ground) |
| Input Configuration | Single-ended or differential |
| Voltage Input Range | 0–5 V, 1–5 V, other configurations per setup |
| Current Input Range | 4–20 mA (with external shunt) |
| Communication | Interfaces with IOP card via dedicated cable |
| Redundancy Support | Yes, via dual IOP configuration |
| Connector Type | Fixed screw terminal |
| Module Compatibility | Compatible with Honeywell HPM and TPS systems |
| Mounting | Vertical FTA mounting channel |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W × D × H) | 130 × 27.4 × 175.5 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What type of signals does the MC-GAIH13 module accept?
A1: It accepts high-level analog inputs and Smart Transmitter Interface (STI) signals.
Q2: Is each input channel isolated from the others?
A2: Yes, each input channel is galvanically isolated from every other channel and from ground.
Q3: Can this module be used with redundant IOP configurations?
A3: Yes, it fully supports redundant IOP configurations for high availability.
Q4: What is the isolation voltage rating of the MC-GAIH13?
A4: The isolation rating is 1000 VDC, both channel-to-channel and channel-to-ground.
Q5: What type of input configurations are supported?
A5: It supports single-ended and differential input configurations.
Q6: Is the module compatible with standard Honeywell TPS systems?
A6: Yes, it is designed for integration with Honeywell TPS and HPM systems.
Q7: What is the operating temperature range for this module?
A7: The operating range is from 0°C to 50°C.
Q8: How is the module mounted in the control cabinet?
A8: It is installed vertically on a designated FTA mounting channel.
