Technical Specifications
| Parameter | Description |
|---|---|

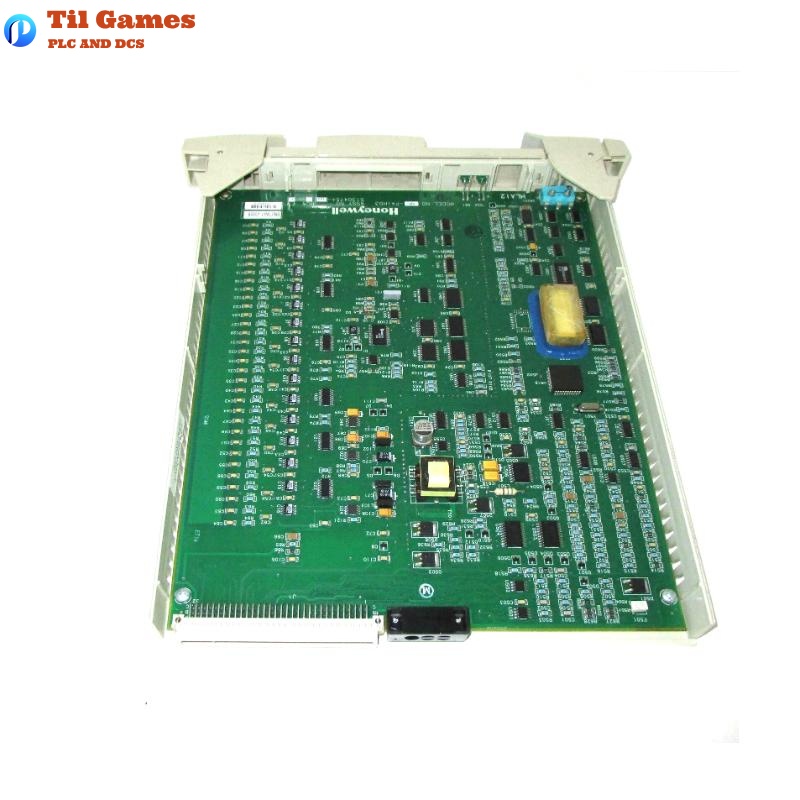

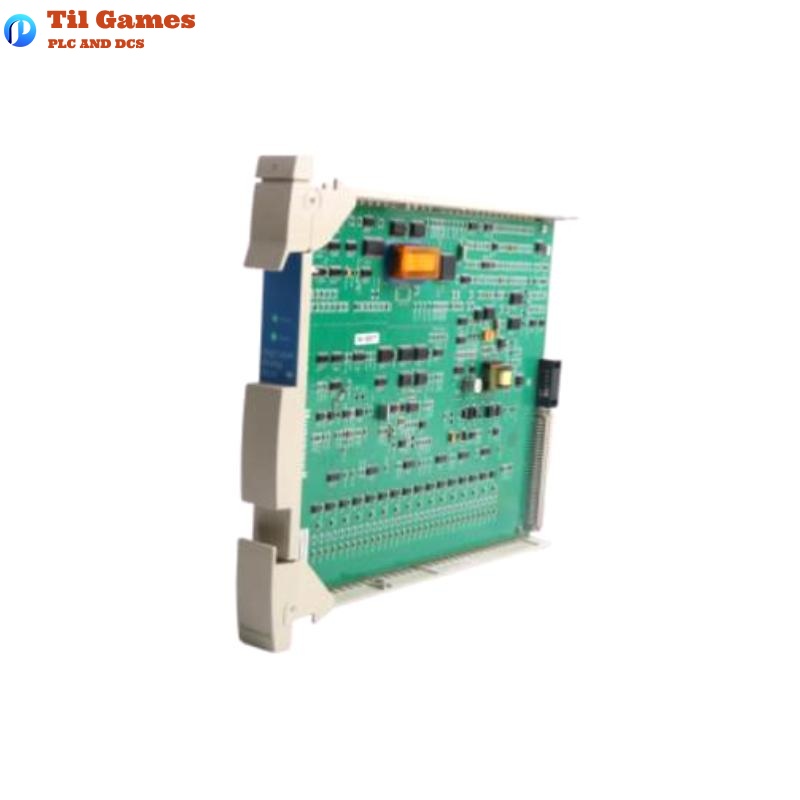

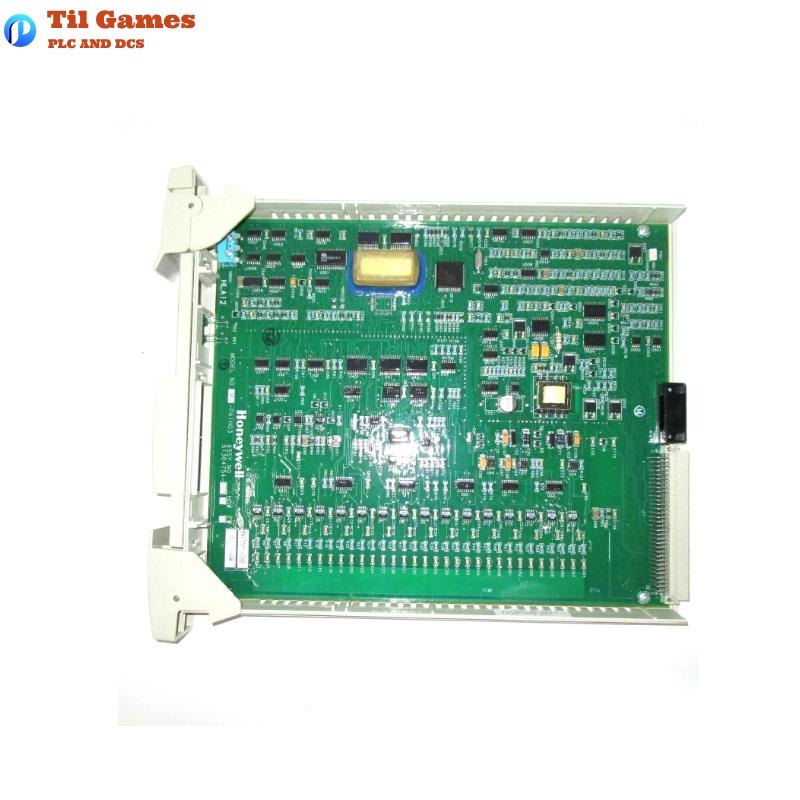

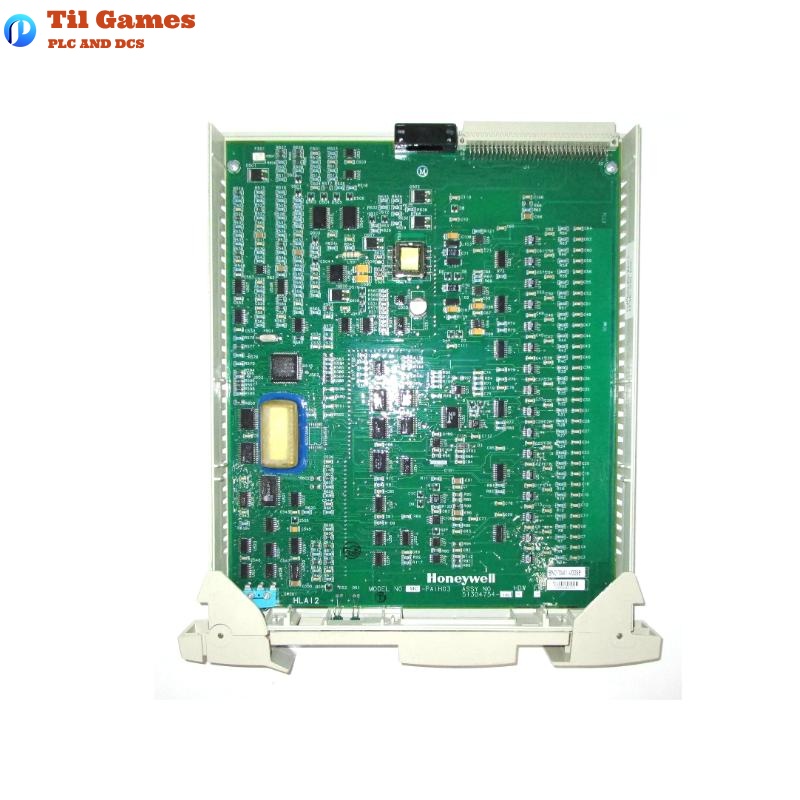

| Product Name | High Level Analog Input Processor |
| Model Number | MC-PAIH03 |
| Part Number | 51304754-150 |
| Type | High-Level Analog Input Module |
| Input Signal | Analog voltage or current |
| Number of Channels | 16 channels |
| Signal Type | 4–20 mA, 1–5 V, or similar analog signals |
| Redundancy Support | Yes (via paired IOPs and FTA redundancy) |
| Mounting | Installed in IOP card file slot |
| Communication | Interfaces with I/O Link and HPMM |
| Power Supply | Supplied via IOP backplane |
| Diagnostics | Module self-check and channel-level fault reporting |
| Dimensions (W x H x D) | 103.1 x 160 x 23 mm |
| Weight | 0.16 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Isolation | Galvanic isolation between channels and ground |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the MC-PAIH03 module?
A1: It is used to receive high-level analog input signals such as 4–20 mA or 1–5 V from field instruments and transmit them to the process controller.
Q2: How many analog input channels does this module support?
A2: It supports 16 independent analog input channels.
Q3: Is the MC-PAIH03 module redundant-capable?
A3: Yes, it supports redundancy when paired with a redundant IOP and FTA.
Q4: What type of signals are accepted by this module?
A4: It accepts high-level analog signals like 4–20 mA and voltage inputs such as 1–5 V.
Q5: How is the module installed?
A5: It is installed in a compatible IOP card file slot within the Honeywell HPM system.
Q6: Is there galvanic isolation in this module?
A6: Yes, the module provides galvanic isolation between the channels and the system ground.
Q7: Can this module operate in harsh environments?
A7: It is designed for standard industrial environments but should be protected from corrosive or explosive atmospheres unless additional protection is provided.
Q8: How is fault detection handled?
A8: The module performs self-diagnostics and can report channel-level faults for maintenance alerts.
