Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RM7800L1079 (part of 7800 SERIES Relay Module family) |
| Voltage Supply | 120 Vac (+10/-15%), 50/60 Hz (±10%) |
| Power Dissipation | RM7800: 10 W max；Display Module: 3 W max |
| Max Connected Load | 2000 VA |
| Fuse Rating | 15A fast-blow (Type SC or equivalent) |
| Ambient Operating Temperature | -40°C to +60°C |
| Ambient Storage Temperature | -40°C to +66°C |
| Relative Humidity | 85% RH, non-condensing |
| Vibration Rating | 0.5G |
| Flame Failure Response Time | 0.8 to 3.0 seconds (depending on amplifier) |

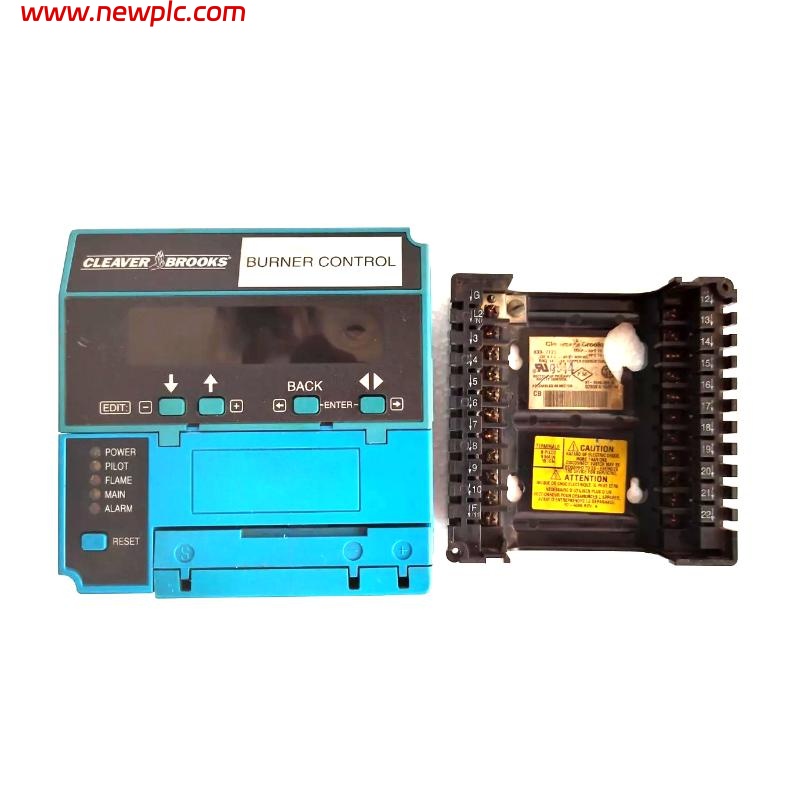

| Mounting Options | Q7800A (panel) or Q7800B (wall or burner mount) |
| Communication Options | Modbus™, Data ControlBus™ compatible |
| Display | 2×20 Vacuum Fluorescent Display (via Keyboard Display Module) |
| Memory | Non-volatile (retains fault history and status after power loss) |
| Approval Ratings | UL, CSA, FM, SIL3 Capable, FCC Part 15 Class A |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.83 kg |
FAQ
FAQ
Q1: What types of flame detectors are compatible with the RM7800L1079?
A1: It supports various flame detectors including ultraviolet (e.g., C7012A/C, C7027, C7035) and infrared (e.g., C7915), depending on the selected amplifier.
Q2: What is the flame failure response time for this model?
A2: The response time ranges from 0.8 to 3.0 seconds, depending on the amplifier used.
Q3: Does the RM7800L1079 feature self-diagnostics?
A3: Yes, it includes dynamic self-check capabilities that continuously monitor internal logic, relay health, and amplifier functionality.
Q4: Is remote reset supported?
A4: Yes, remote reset is supported using the optional S7820A1007 module.
Q5: What are the mounting options for this module?
A5: It can be mounted using the Q7800A subbase for panel mounting or Q7800B for wall or burner mounting.
Q6: Will it retain historical data after a power loss?
A6: Yes, it has non-volatile memory that retains history and sequencing status during power outages.
Q7: Can the RM7800L1079 be used in dual-fuel applications?
A7: Yes, it is suitable for automatically fired gas, oil, or combination fuel single burner applications.
Q8: Is the Honeywell RM7800L1079 SIL 3 certified?
A8: Yes, when configured with dynamic self-check amplifiers and integrated into a properly designed safety instrumented system, it meets SIL 3 standards.
