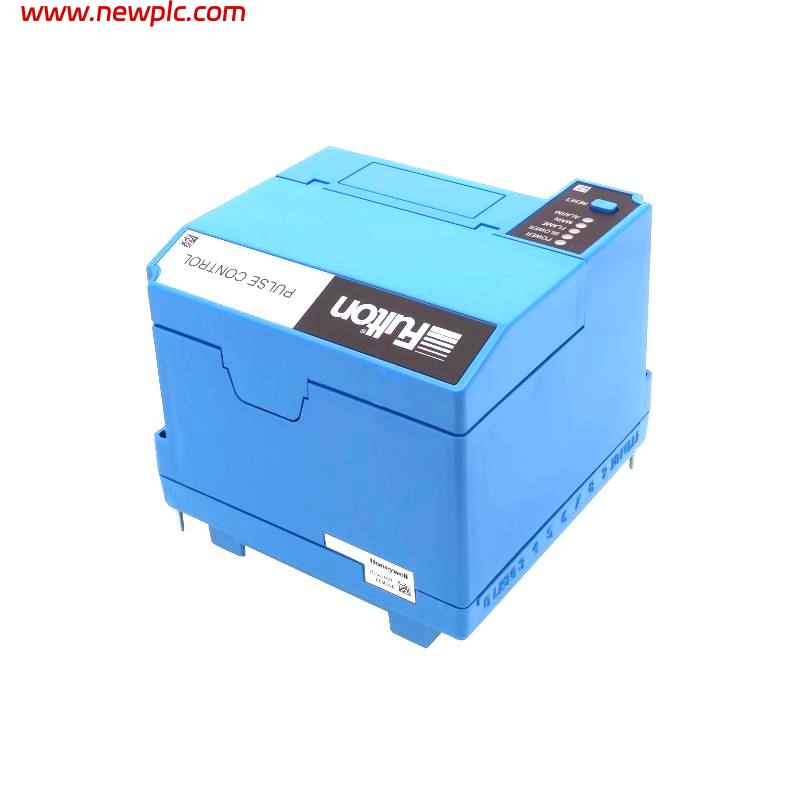

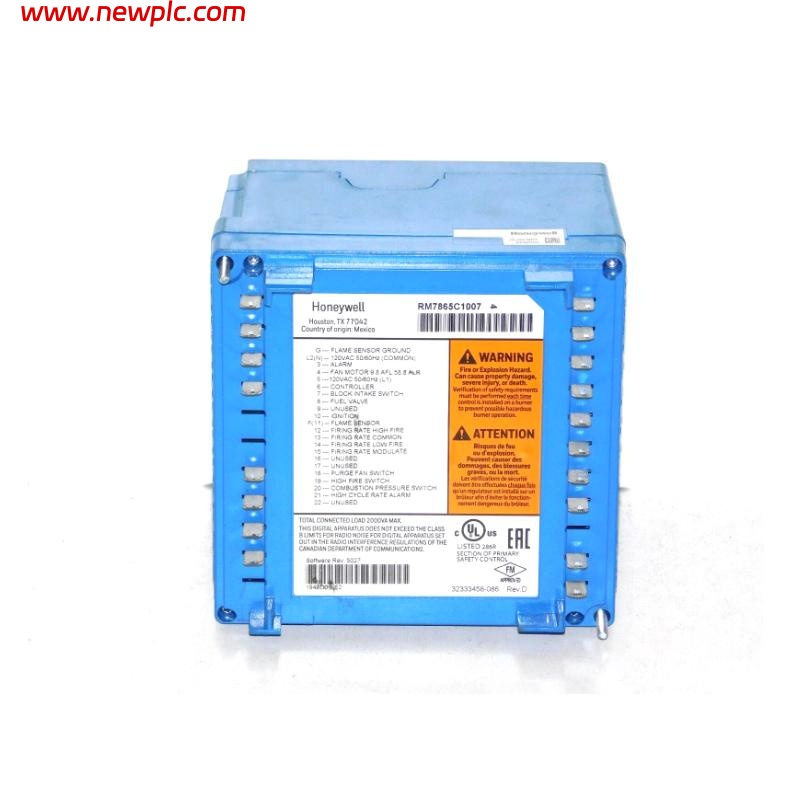

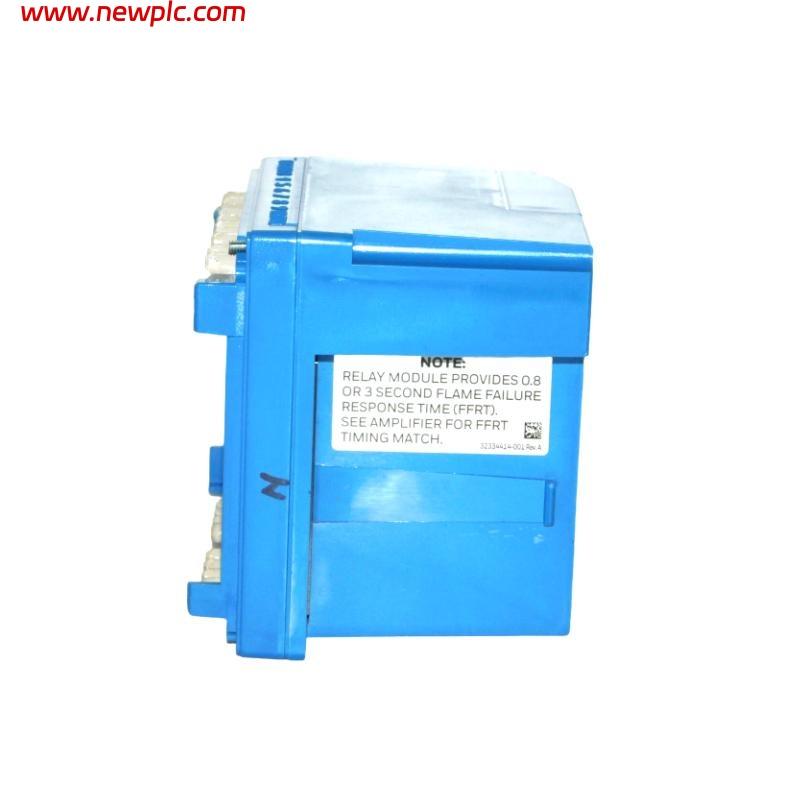

Honeywell RM7865C1007 Burner Control

FAQ

Q1: What type of power supply does the RM7865C1007 require?
A1: It operates on 120 Vac (+10% / -15%) at 50/60 Hz (±10%).

Q2: What is the maximum connected load supported?
A2: The RM7865C1007 supports a maximum connected load of 2000 VA.

Q3: What are the allowable ambient temperature ranges for operation and storage?
A3: Operating range is -40°C to +60°C, and storage range is -40°C to +66°C.

Q4: What safety features are integrated into this burner control?
A4: It includes dynamic input checks, closed-loop logic tests, hardware status monitoring, tamper-resistant logic, and first-out annunciation with diagnostics.

Q5: What approvals and certifications does the RM7865C1007 have?
A5: It is UL listed, FM approved, IRI acceptable, and compliant with FCC Part 15 Class B for emissions.

Q6: Is the RM7865C1007 capable of SIL3 applications?
A6: Yes, it is SIL3 capable when used in a properly designed safety instrumented system.

Q7: How is the device mounted?
A7: It must be mounted on the Honeywell Q7800A1013 Subbase.

Q8: What is the weight of the unit?
A8: The RM7865C1007 weighs approximately 0.822 kg.

Burner Control Honeywell RM7865C RM7865C1007
