Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | TC-CCR012 |

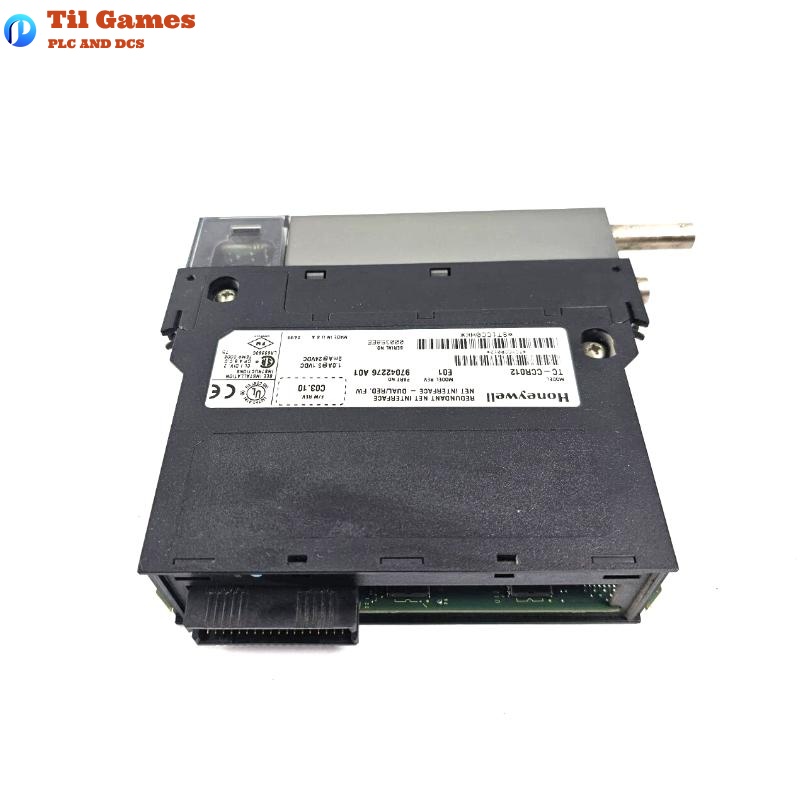

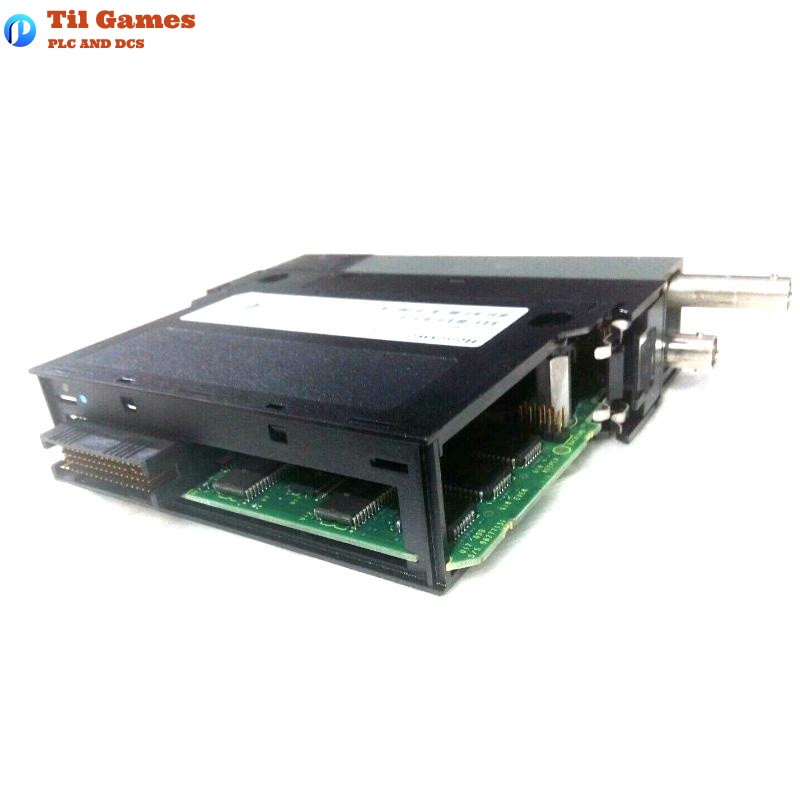

| Module Type | Redundant ControlNet Interface Module |
| Number of Slots Used | 1 slot |
| Function | Dual-media ControlNet interface for C200E I/O network redundancy |
| Backplane Communication | Connects I/O chassis to C200E processor |
| Supported Media Types | Coaxial RG-6, redundant A/B channel |
| Communication Rate | 5 Mbps |
| Connection Type | BNC connectors for A and B networks |
| Diagnostic Functions | Media redundancy diagnostics, network health indication |
| Hot Swap Support (RIUP) | Supported (only in non-hazardous zones) |
| Installation Location | Any I/O Chassis (Series A) |
| Dimensions | 22 mm x 124 mm x 126 mm |
| Weight | 0.231 kg |
| Isolation | Optical isolation between channels |
| Power Supply | Supplied via backplane from chassis |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, C-Tick, Class I Div 2 |
FAQ
FAQ
Q1: What is the primary function of the TC-CCR012 module?
A1: The TC-CCR012 module provides a redundant ControlNet interface for connecting remote I/O chassis to the Honeywell C200E controller.
Q2: Can the TC-CCR012 module be used in hazardous environments?
A2: The module supports removal and insertion under power (RIUP) only in ordinary, non-hazardous locations.
Q3: How many TC-CCR012 modules can be installed in a single chassis?
A3: Only one TC-CCR012 module is needed per I/O chassis for redundant network interfacing, occupying one chassis slot.
Q4: What media does the TC-CCR012 support for network connection?
A4: It supports redundant coaxial (RG-6) media using BNC connectors for both A and B networks.
Q5: Is the module hot-swappable?
A5: Yes, the TC-CCR012 supports hot-swap (RIUP) in non-hazardous areas.
Q6: What are the diagnostic features of the TC-CCR012?
A6: The module includes diagnostics for media redundancy and real-time network health monitoring.
Q7: What kind of chassis is compatible with the TC-CCR012?
A7: It is compatible with Honeywell Series A I/O chassis, such as 4, 7, 10, 13, and 17-slot models.
Q8: Does the TC-CCR012 module support dual media for network redundancy?
A8: Yes, it supports dual-media configurations, enhancing network reliability through ControlNet redundancy.
