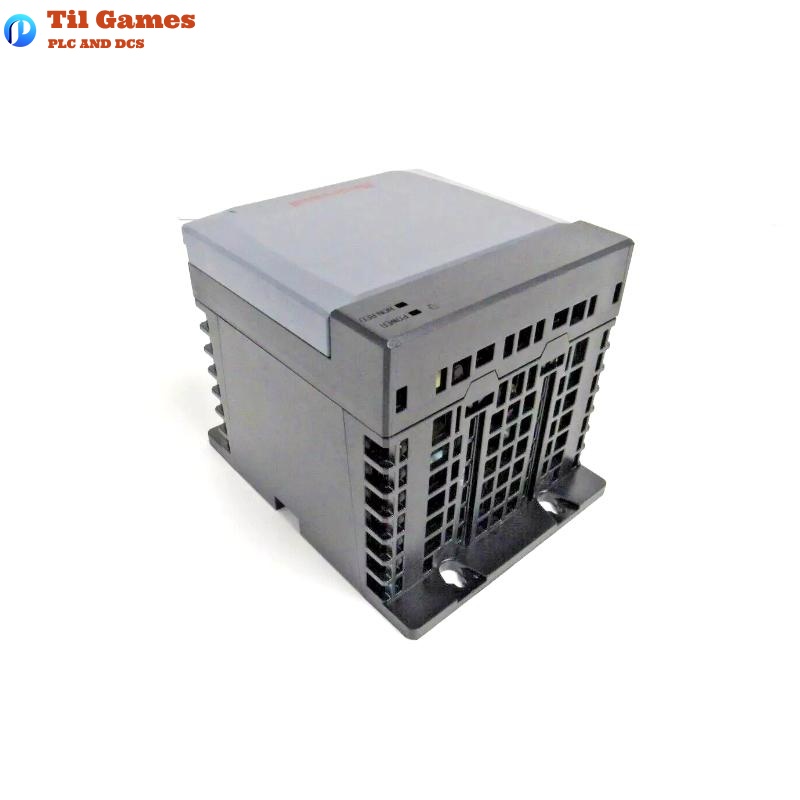

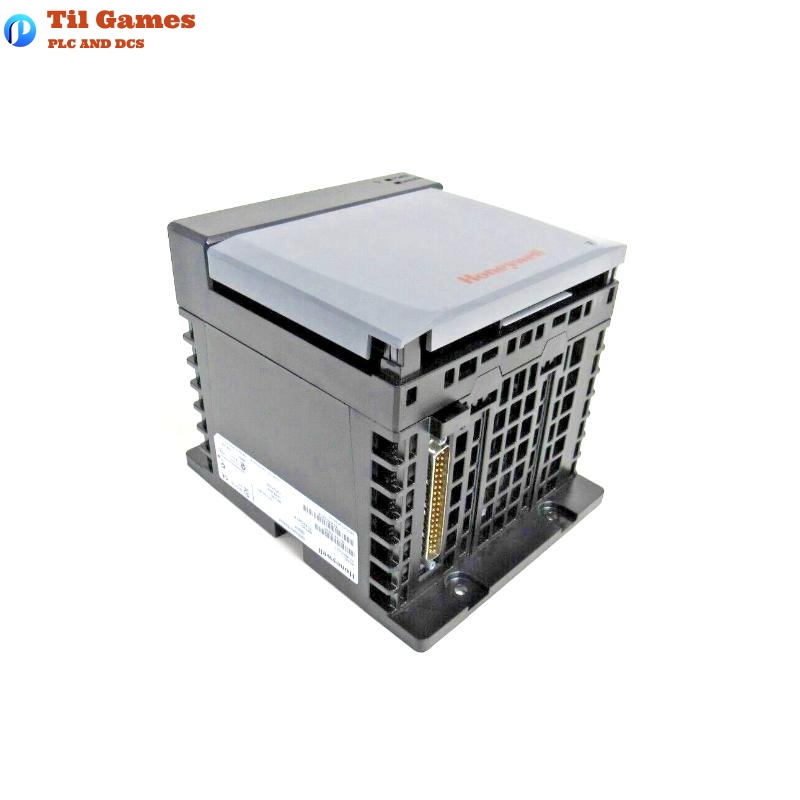

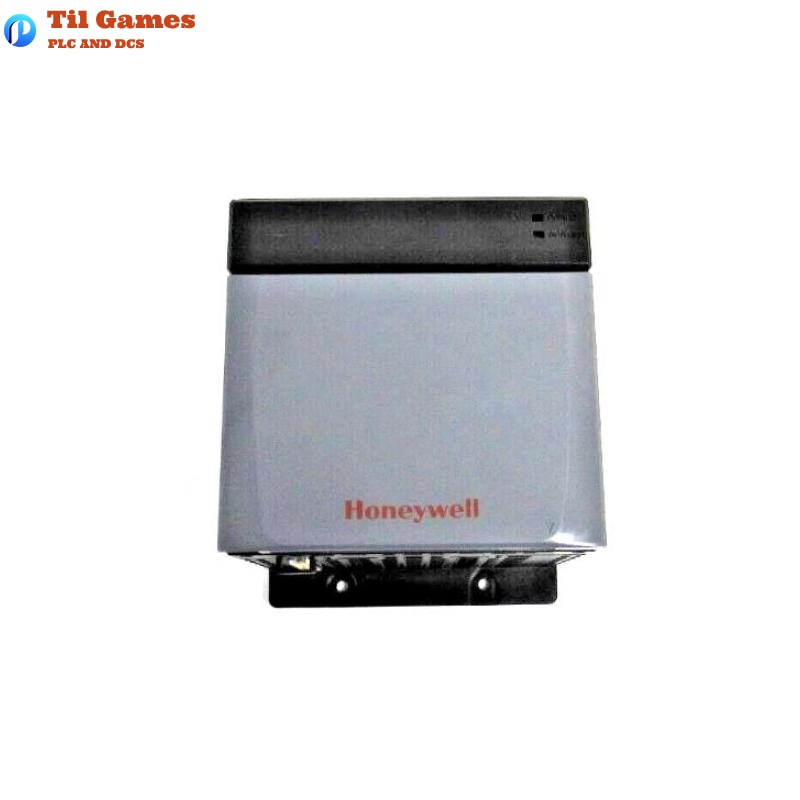

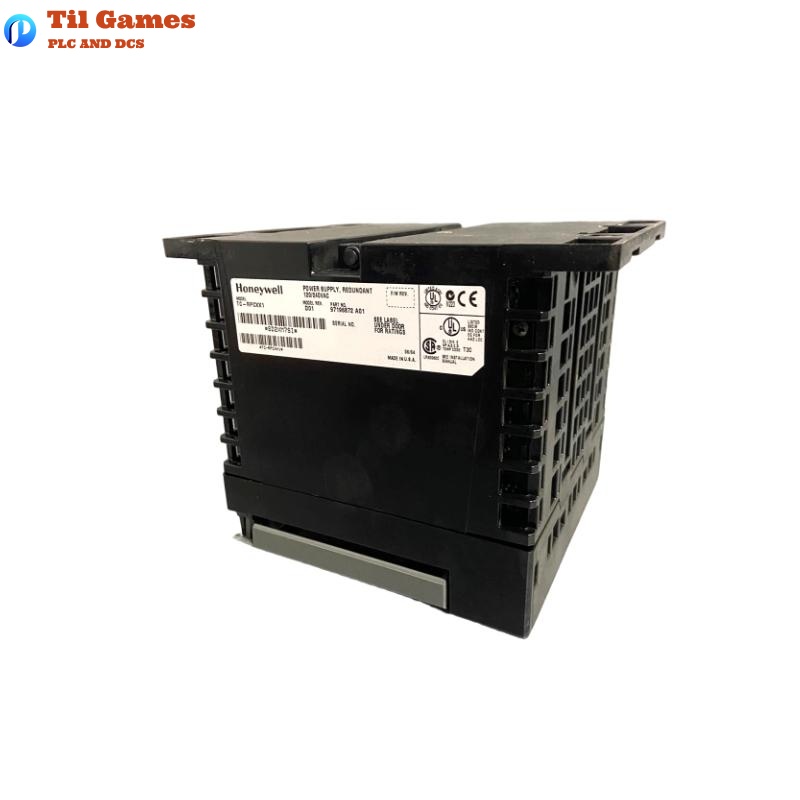

Honeywell TC-RPCXX1 Redundant Power Supply Module

FAQ

Q1: What type of input voltage does the TC-RPCXX1 module support?
A1: The TC-RPCXX1 supports an input voltage range of 85 to 265 VAC at 47–63 Hz.

Q2: Can TC-RPCXX1 be used in a redundant power supply configuration?
A2: Yes, the module is specifically designed for use in redundant power supply systems.

Q3: What is the maximum output power capability of the TC-RPCXX1?
A3: It can deliver a total of 75 watts at 60°C.

Q4: How much current does TC-RPCXX1 supply to the backplane?
A4: It supplies 1.5A at 1.2V, 4A at 3.3V, 13A at 5.1V, and 2.8A at 24V.

Q5: What are the mounting recommendations for this power module?
A5: The TC-RPCXX1 should be mounted upright, typically above or below the powered chassis.

Q6: What are the physical dimensions and weight of the TC-RPCXX1?
A6: The module measures 150 x 125 x 75 mm and weighs approximately 1.43 kg.

Q7: Does this module provide any fault annunciation?
A7: Yes, it includes a solid-state relay for user connection, rated for 120 VAC/DC at 100 mA maximum.

Q8: Is this power supply suitable for use in hazardous environments?
A8: When properly certified, it meets UL 508 and Class I, Division 2 requirements.

Honeywell Redundant Power Supply Module TC-RPCXX1

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
