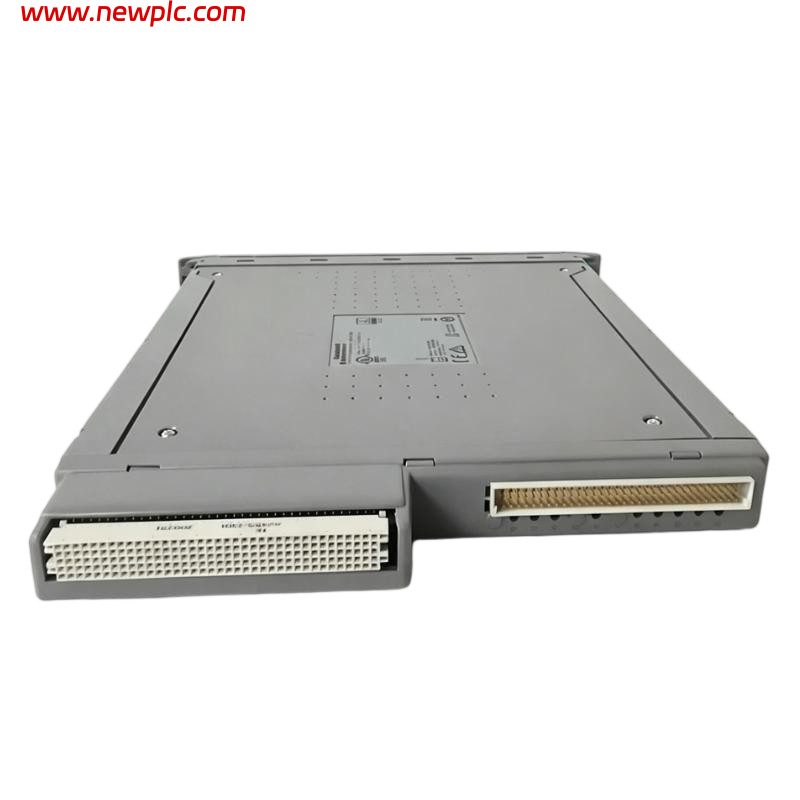

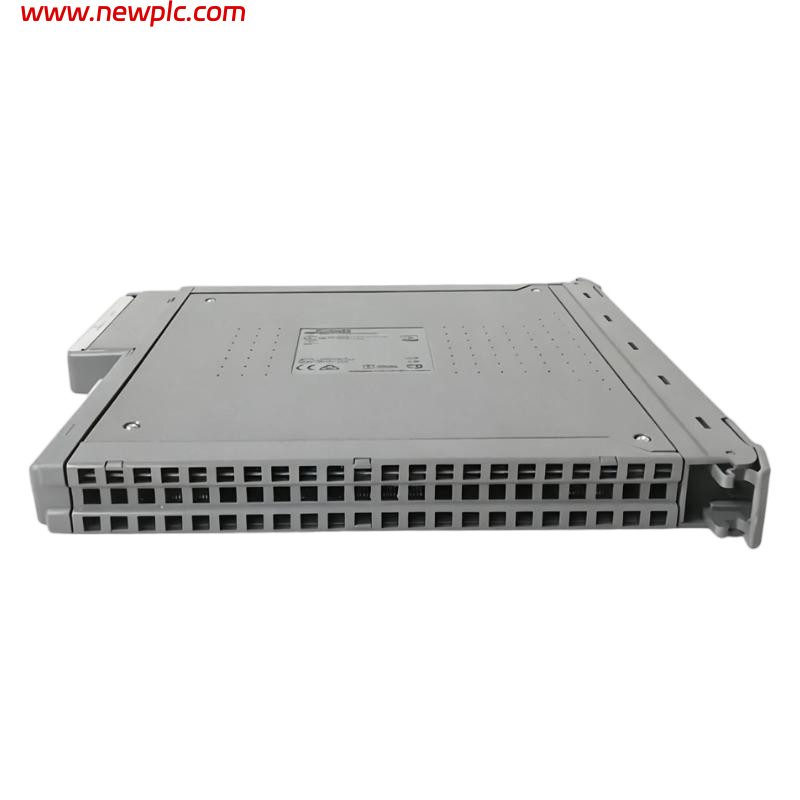

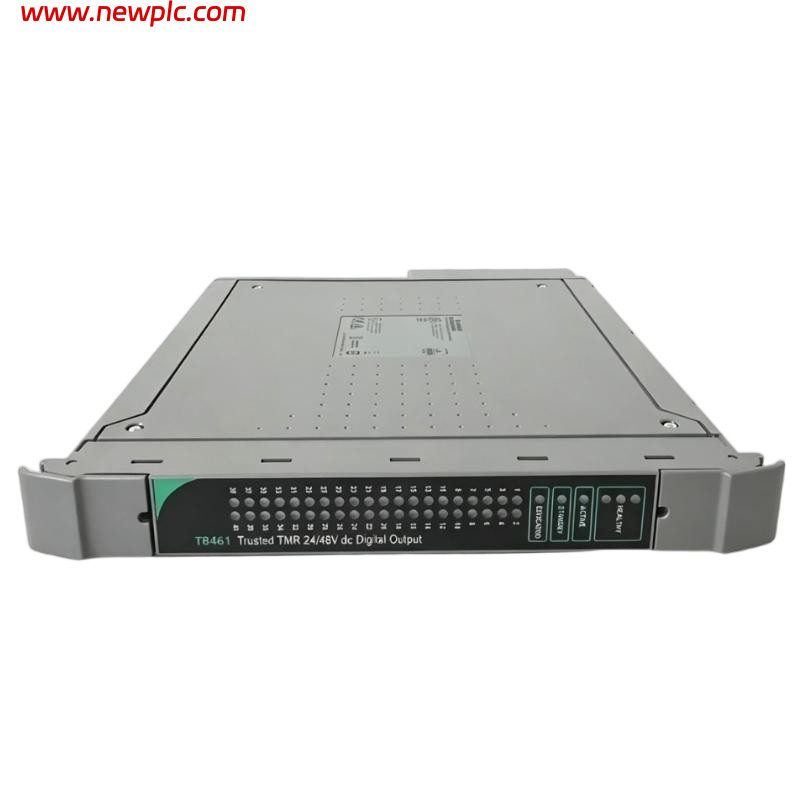

Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | T8461C |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Series | Trusted® TMR |
| Product Type | Trusted TMR 24/48 VDC Digital Output Module |
| Output Type | Digital Output (DO) |
| Number of Channels | 40 channels |
| Architecture | Triple Modular Redundancy (TMR) |
| Output Voltage | 24/48 VDC |
| System Supply Voltage | 20–32 VDC |
| Output Voltage Range | 18–60 VDC |
| Output Current | 0.75 A continuous per channel |
| Maximum Current per Power Group | 6 A |
| Power Groups | 5 groups × 8 outputs |
| Minimum On-State Load | 25 mA |
| Output Off-State Resistance | 33 kΩ |
| Output On-State Resistance | Approx. 0.6 Ω |
| Short-Circuit Protection | Electronic / automatic, latching |
| Line Monitoring | Automatic, per channel |
| Isolation | 2500 V impulse withstand opto/galvanic isolation |
| SOE Resolution | 1 ms |
| Output Turn-On/Off Delay | 0.5 ms |
| Sample Update Time | 0.5 ms |
| Self-Test Interval | 2 minutes |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Dimensions | 266 × 31 × 303 mm (H × W × D) |
| Product Weight | Approx. 1.285 kg |
| Shipping Weight | Approx. 2 kg |
| Safety Level | SIL 3 |
FAQ
FAQ
Q1: What is the T8461C used for?
A: It is a 40-channel TMR digital output module used to control field devices such as solenoid valves, relays, actuators and other safety-related loads.
Q2: How many output channels does the T8461C have?
A: It provides 40 digital output channels, arranged in five groups of eight.
Q3: What voltage does the T8461C support?
A: It is designed for 24 VDC and 48 VDC field-output applications, with an operational output range of approximately 18–60 VDC.
Q4: What is the output current rating?
A: Each channel supports 0.75 A continuous, while each group of eight outputs can handle up to 6 A.
Q5: Does the T8461C provide short-circuit protection?
A: Yes. Each output incorporates automatic electronic overcurrent/short-circuit protection, reducing the need for external channel fuses.
Q6: Does the T8461C support SOE?
A: Yes. It provides Sequence of Events reporting with 1 ms resolution, allowing accurate recording of output state changes.
Q7: Can the T8461C be replaced while the system is running?
A: Yes. The Trusted system supports online hot replacement when the appropriate Companion Slot or SmartSlot configuration is used.
Q8: What are the dimensions and weight of the T8461C?
A: The commonly documented dimensions are 266 × 31 × 303 mm, with a product weight of approximately 1.285 kg and shipping weight of about 2 kg.
