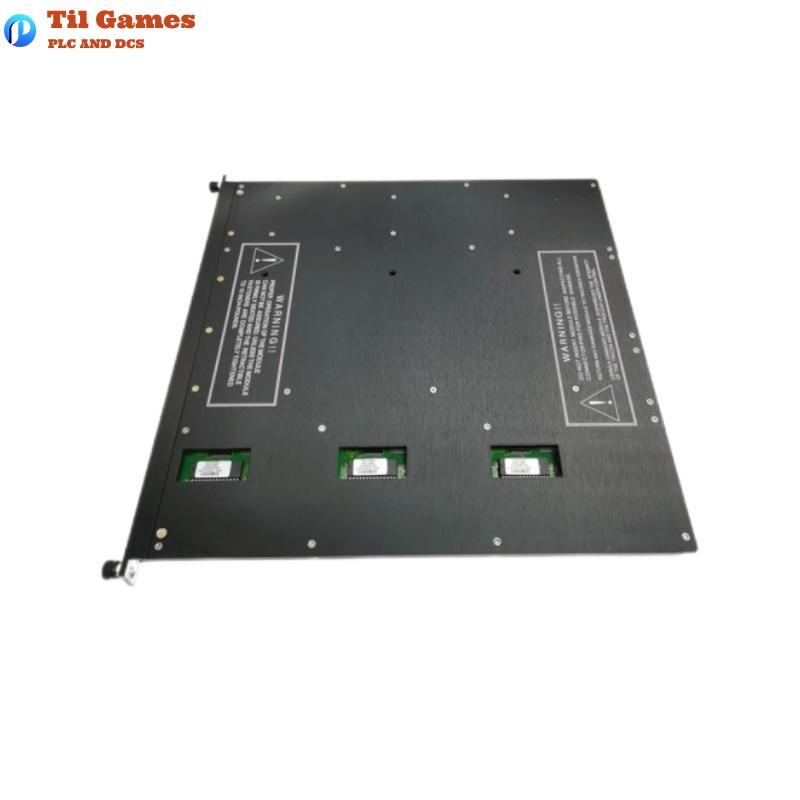

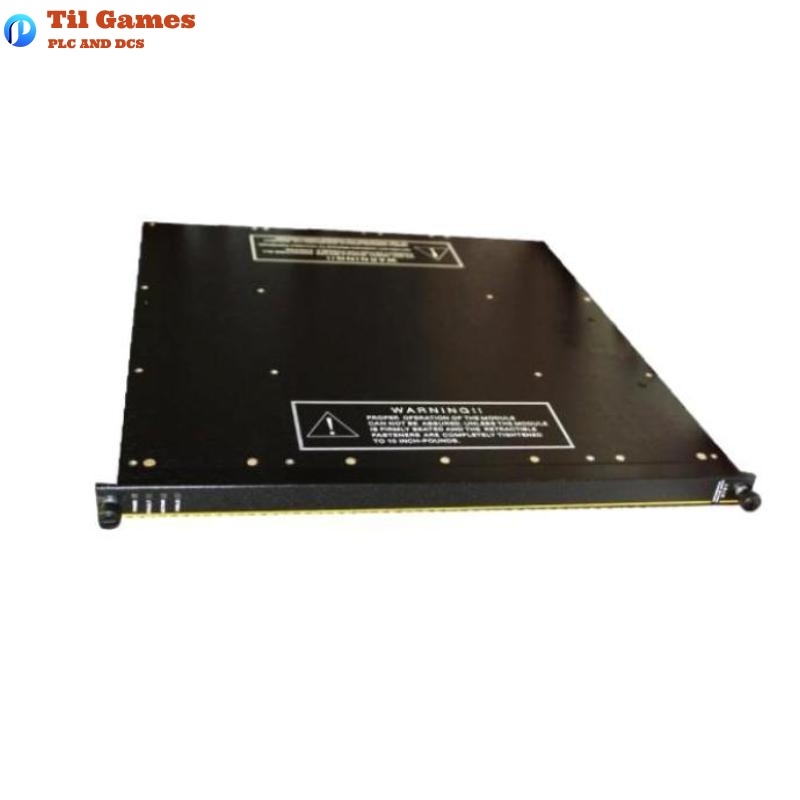

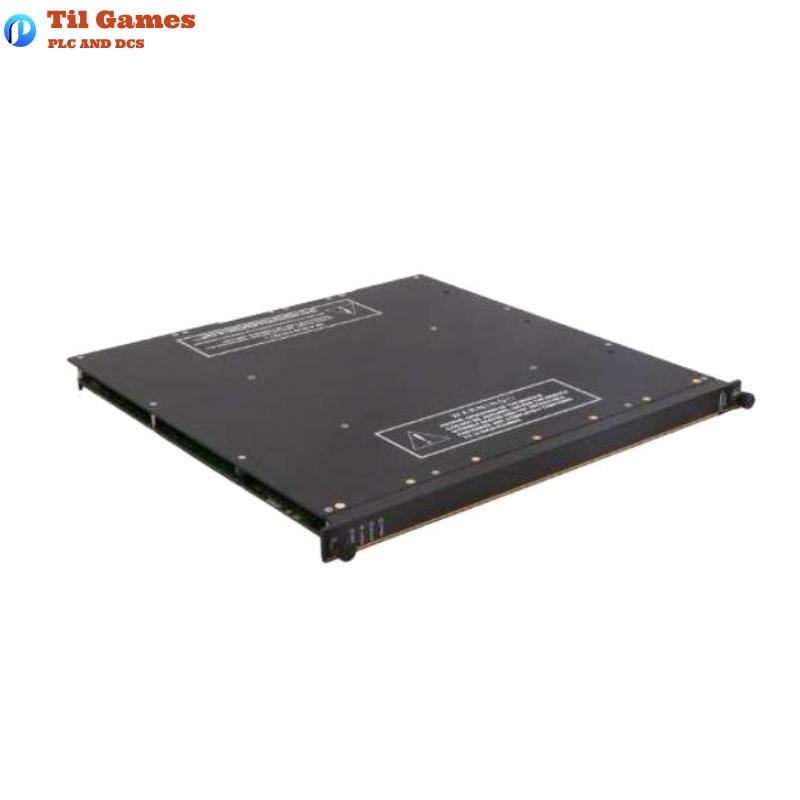

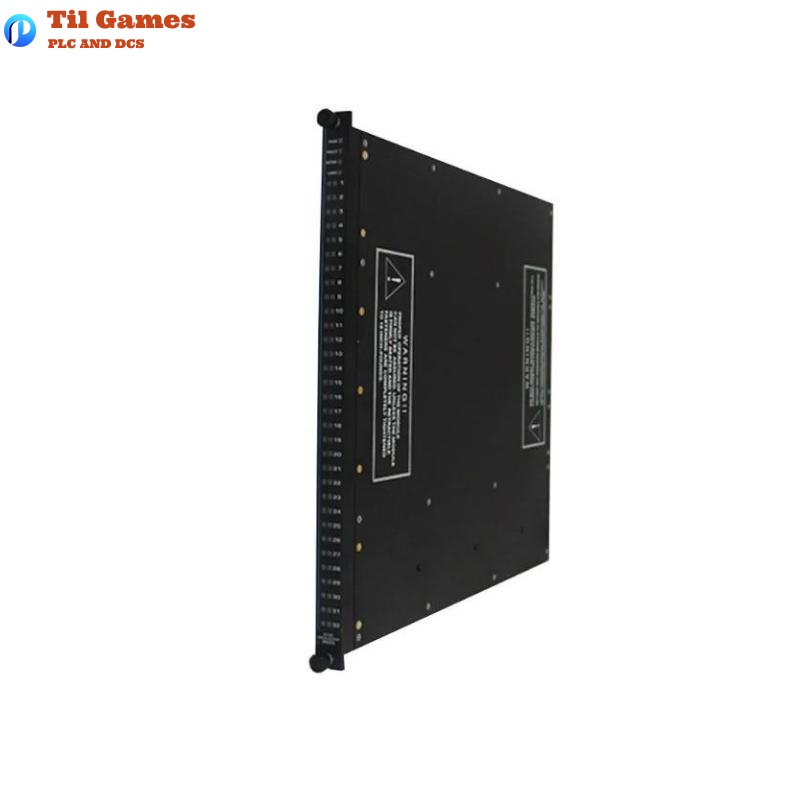

Triconex 3617E Supervised Digital Output Module

FAQ

Q1: How many output channels does the 3617E module support?
A1: The 3617E module supports 8 digital output channels.

Q2: What are the typical applications of the 3617E module?
A2: Common applications include Emergency Shutdown (ESD), turbine control, boiler management, and fire/gas safety systems.

Q3: Does the module support hot-spare capability?
A3: Yes, the 3617E supports hot-spare functionality for online module replacement without process interruption.

Q4: What kind of safety protection does the output circuitry provide?
A4: Each point is protected by loopback detection and Output Voter Diagnostics (OVD) to ensure safe and reliable output delivery.

Q5: How is channel isolation handled in the module?
A5: Each output channel is galvanically isolated to ensure electrical separation and system safety.

Q6: What is the output type and voltage of this module?
A6: The output is 48 VDC, galvanically isolated, with a common terminal configuration.

Q7: Can the module be replaced online in case of failure?
A7: Yes, the 3617E allows for online replacement using the hot-spare mechanism.

Q8: What are the physical dimensions and weight of the module?
A8: The module measures 490 x 453 x 68 mm and weighs 2.5 kg.
