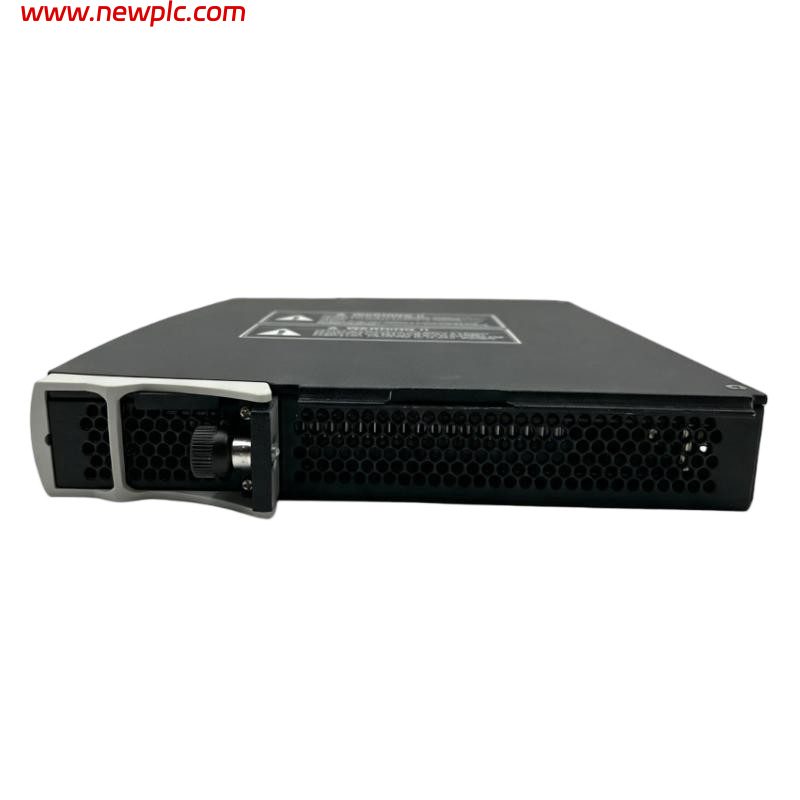

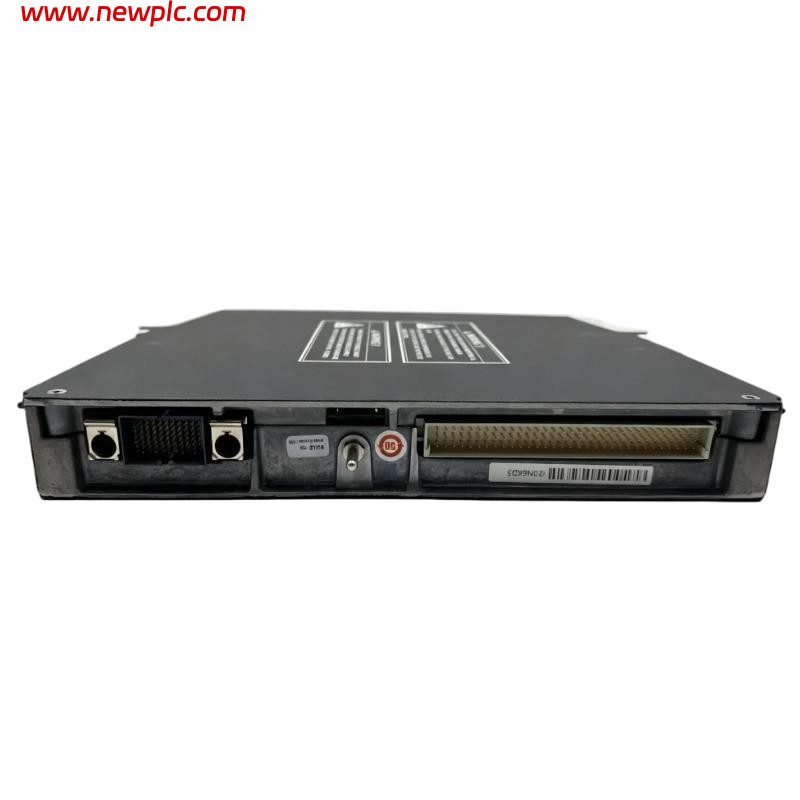

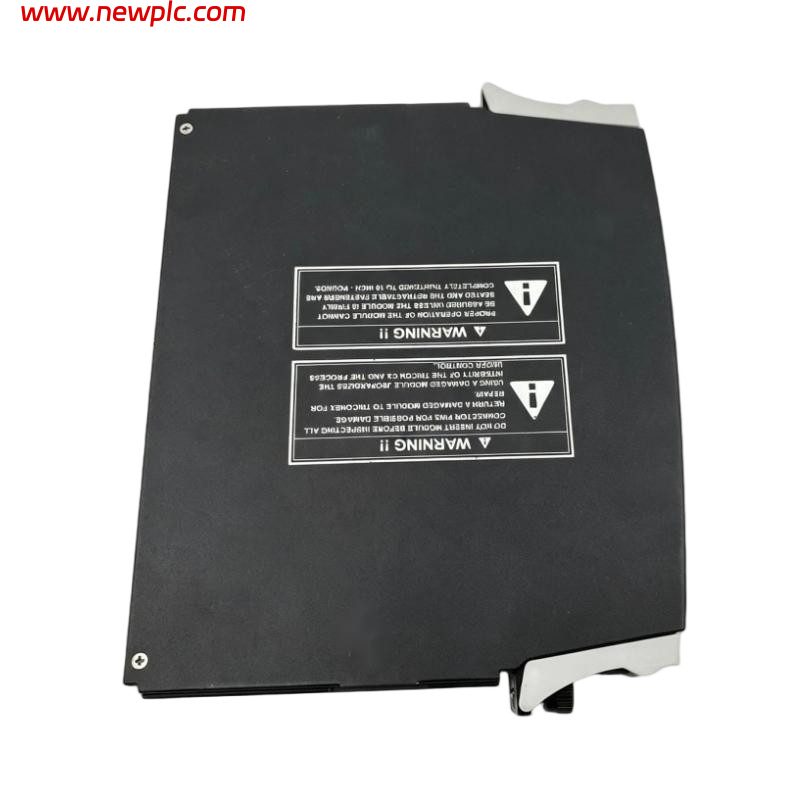

Triconex MP 3009X Main Processor Module

FAQ

Q1: What is the Triconex MP 3009X?
A: The MP 3009X is the Main Processor Module used in Tricon CX safety systems. It executes the control program, processes I/O data and participates in the system’s redundant voting and diagnostic functions.

Q2: Is MP 3009X the same as 3009X?
A: Yes. MP 3009X, MP3009X and 3009X are commonly used to identify the same Triconex Main Processor product.

Q3: What type of redundancy does MP 3009X use?
A: It uses Triple Modular Redundancy (TMR). Three independent processor modules operate in parallel, compare their results and use majority voting to maintain reliable system operation.

Q4: How much memory does the MP 3009X have?
A: The MP 3009X is specified with 256 MB of memory for control-program execution and system data.

Q5: What communication bus does the MP 3009X use?
A: It uses the proprietary TriBus high-speed communication architecture. TriBus handles inter-processor communication, hardware majority voting of digital input data and comparison of control-program variables.

Q6: What power supply does the MP 3009X require?
A: The system uses a redundant 24 VDC power supply. Available technical data lists approximately 15 W power consumption for the processor module.

Q7: What are the dimensions and weight of MP 3009X?
A: Schneider Electric’s environmental documentation lists approximately 222 × 192 × 32 mm and 1.17 kg. Supplier listings commonly quote about 3.2 × 20.5 × 24.6 cm and 1.22 kg, so these figures should be treated as reference values.

Q8: What applications use the MP 3009X?
A: The MP 3009X is intended for safety-critical Tricon CX applications such as emergency shutdown (ESD), fire and gas (F&G), burner management (BMS), HIPPS and critical process protection.

MP 3009X Triconex
