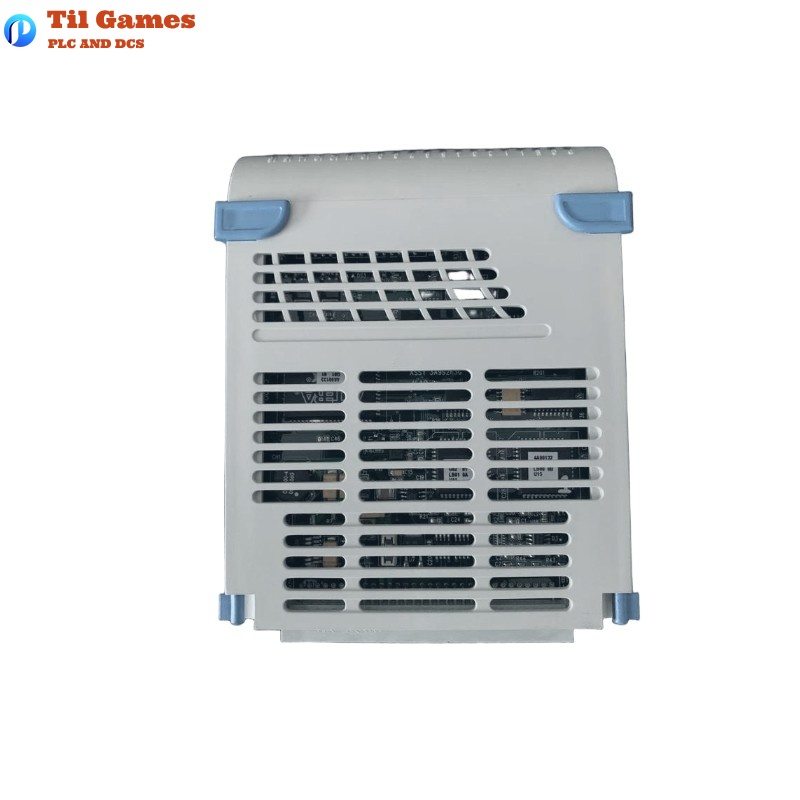

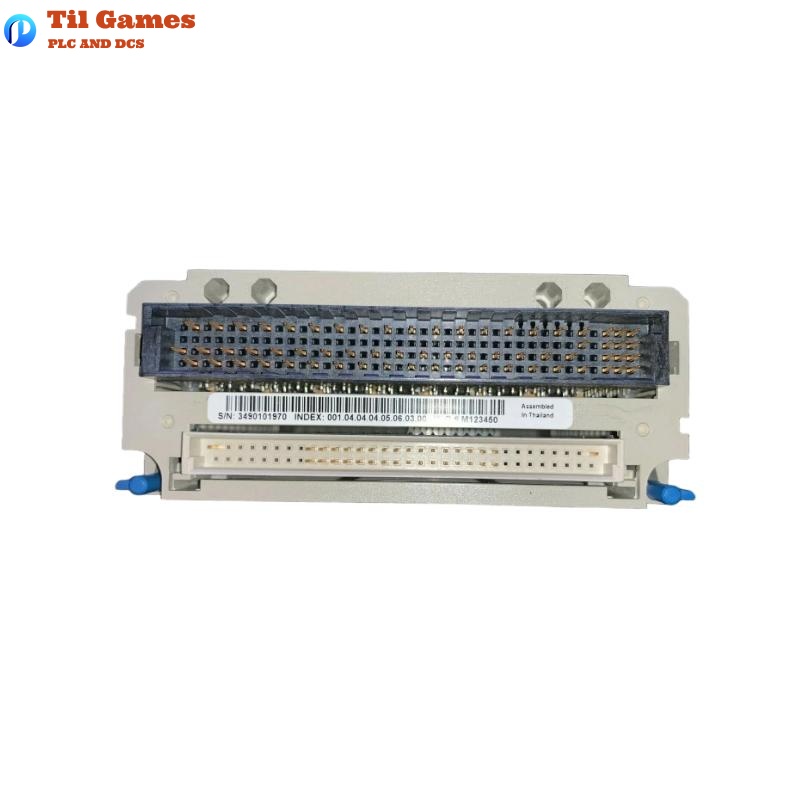

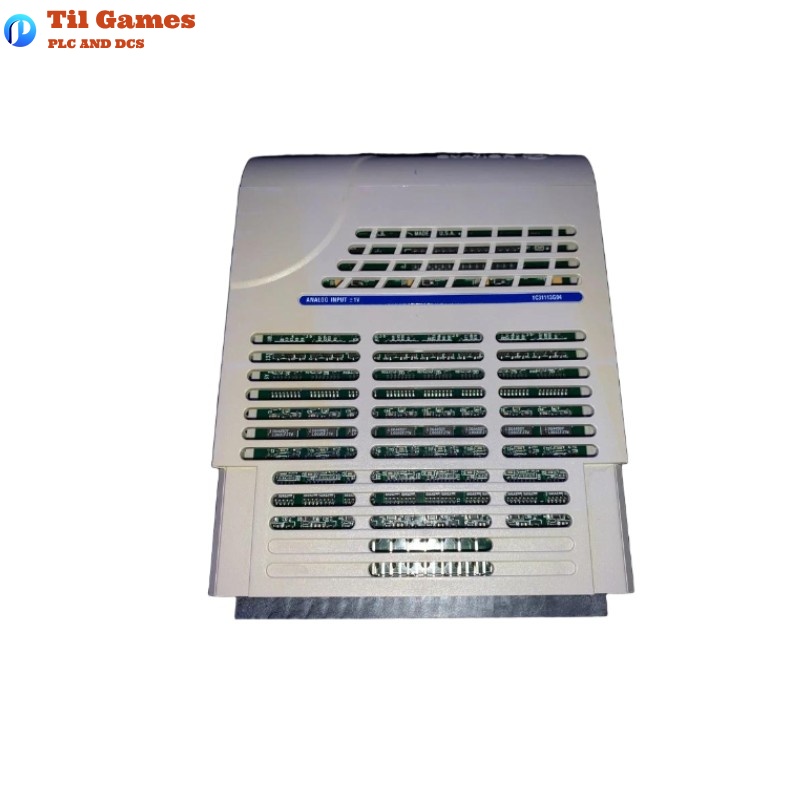

OVATION 1C31113G04 Analog Input Module

FAQ

Q1: What signal types are supported by the 1C31113G04 module?
A1: It supports standard analog inputs such as 0–5 VDC, ±5 VDC, 0–10 VDC, ±10 VDC, 0–20 mA, and 4–20 mA.

Q2: How many input channels does the module have?
A2: The module provides 8 differential input channels.

Q3: What is the accuracy of this module?
A3: It has an accuracy of ±0.1% of the full-scale range.

Q4: Is there isolation between channels?
A4: Yes, the module provides both channel-to-channel and channel-to-bus isolation.

Q5: What is the input impedance?
A5: Voltage input impedance is 10 MΩ; current input impedance is 250 Ω.

Q6: What are the dimensions and weight of the module?
A6: Dimensions are 121 x 51 x 140 mm, and weight is 0.3 kg.

Q7: What environments is the module suited for?
A7: It is designed for use in power plants, process control, and other mission-critical industrial automation settings.

Q8: What is the power consumption of the module?
A8: The typical power consumption is 5.8 W.
