Technical Specifications
| Parameter | Description |
|---|---|

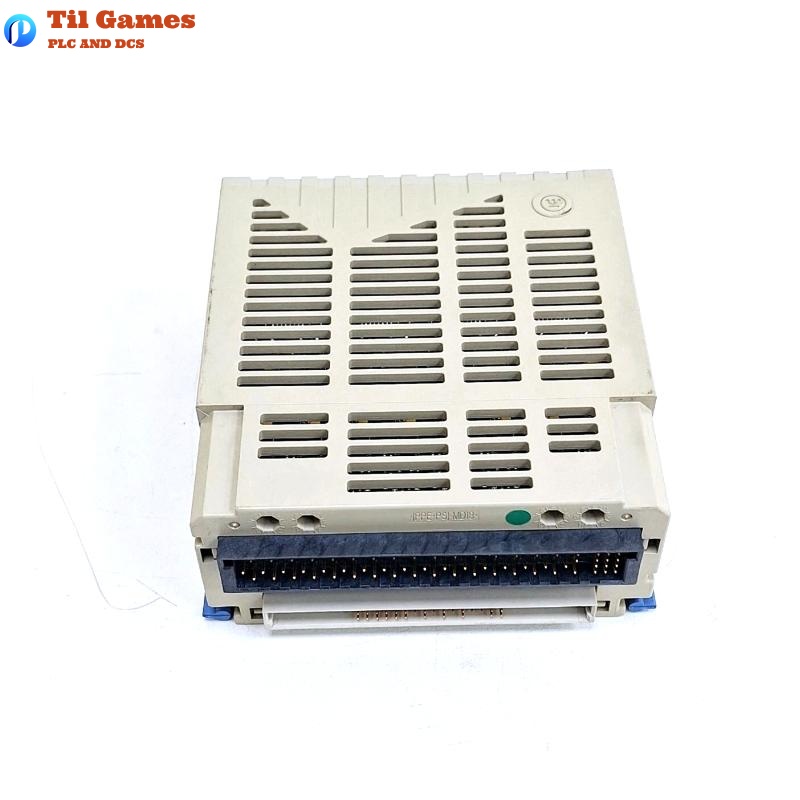

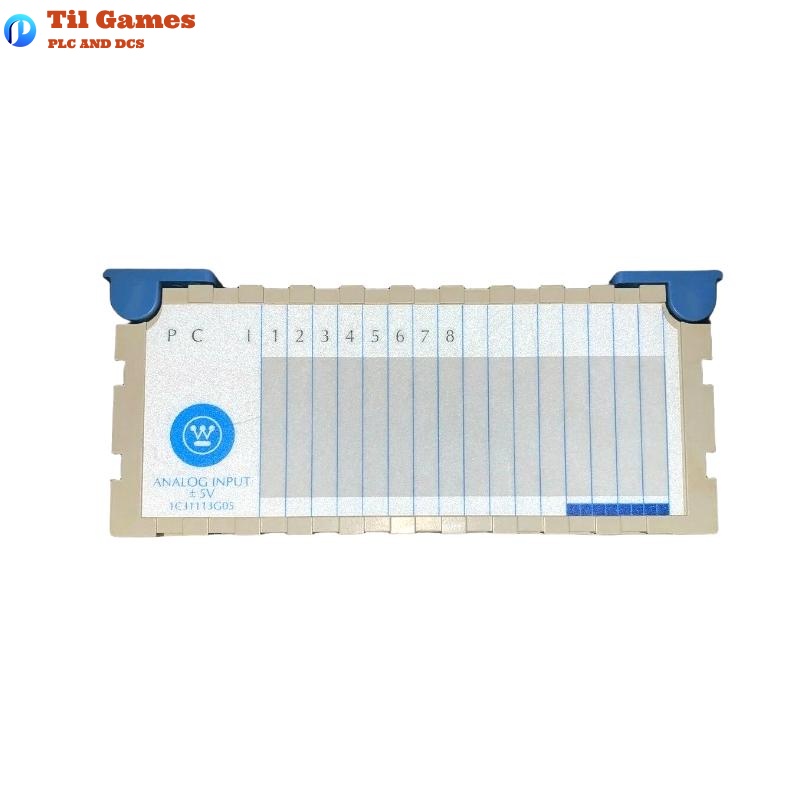

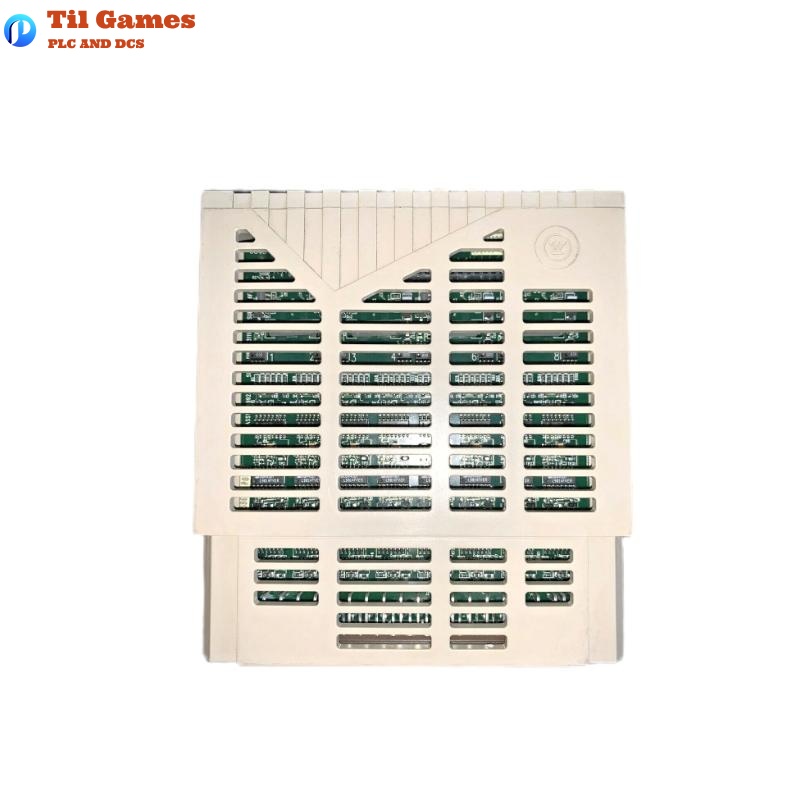

| Module Name | 1C31113G05 Analog Input Module |
| Number of Channels | 8 Single-Ended Channels |
| Input Type | Analog signals (voltage or current) |
| Input Range | Voltage: 0–5V, ±5V, 0–10V, ±10V |
| Resolution | 12-bit |
| Accuracy | ±0.1% Full Scale |
| Common Mode Rejection | 100 dB min (50/60 Hz) |
| Channel Isolation | Optical Isolation from System |
| Input Impedance | Voltage: >100kΩ; Current: 250Ω |
| Update Rate | Up to 10 updates/sec per channel |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | Powered by main controller system |
| Dimensions | 162 × 62 × 127 mm |
| Weight | 0.32 kg |
FAQ
FAQ
Q1: How many analog input channels does the 1C31113G05 module support?
A1: It supports 8 single-ended analog input channels.
Q2: What types of analog signals are supported?
A2: It supports both voltage and current signals depending on configuration.
Q3: What are the typical input signal ranges?
A3: Supported ranges include 0–5V, ±5V, 0–10V, and ±10V.
Q4: What is the resolution of the module?
A4: The module has a 12-bit resolution for precise data acquisition.
Q5: Does the module have channel isolation?
A5: Yes, it features optical isolation between channels and the system.
Q6: What is the input impedance?
A6: Voltage input impedance is over 100kΩ; current input impedance is 250Ω.
Q7: What is the operating temperature range?
A7: The operating temperature range is 0°C to 60°C.
Q8: What are the module’s dimensions and weight?
A8: It measures 162 × 62 × 127 mm and weighs 0.32 kg.
