Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Analog Input Module |
| Model Number | 1C31113G06 |
| Input Channels | 16 channels |
| Input Signal Type | Current signal (4–20 mA) |
| Resolution | 12-bit |
| Accuracy | ±0.25% Full Scale (at 25°C) |
| Input Impedance | 250 Ohms (standard) |
| Channel Isolation | Isolation between channels and system |
| Power Supply | Powered via controller system bus |
| Fault Detection | Supports open circuit detection and diagnostics |

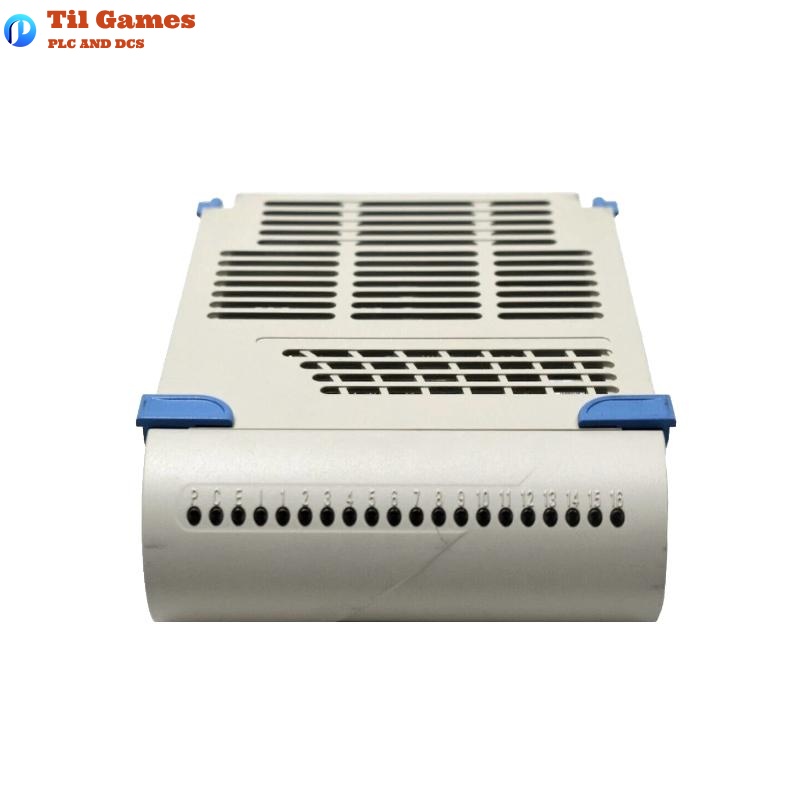

| Status Indicators | LED per channel for status indication |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | DIN rail or rack mountable |
| Dimensions | 260 × 32 × 176 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What type of input signal does the 1C31113G06 support?
A1: It supports 4–20 mA current input signals.
Q2: How many input channels does this module provide?
A2: The module offers up to 16 analog input channels.
Q3: Does the module have input signal isolation?
A3: Yes, it provides electrical isolation between channels and the system.
Q4: What is the typical accuracy of the module?
A4: The typical accuracy is ±0.25% of full scale at 25°C.
Q5: Are there status indicators for each channel?
A5: Yes, each channel includes an LED for real-time status indication.
Q6: What temperature range can the module operate within?
A6: Operating temperature is 0°C to +60°C; storage range is -40°C to +85°C.
Q7: What is the input impedance of the module?
A7: The standard input impedance is 250 Ohms.
Q8: How is the module installed?
A8: It can be installed on a DIN rail or mounted in a rack for flexible system integration
