Technical Specifications
| Parameter Category | Detailed Specification |
|---|---|

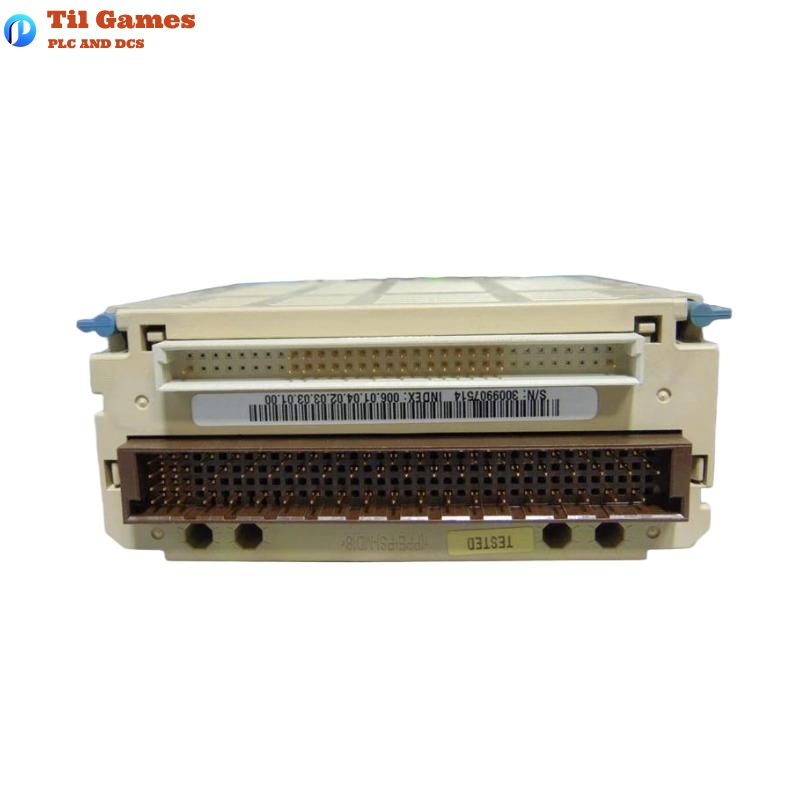

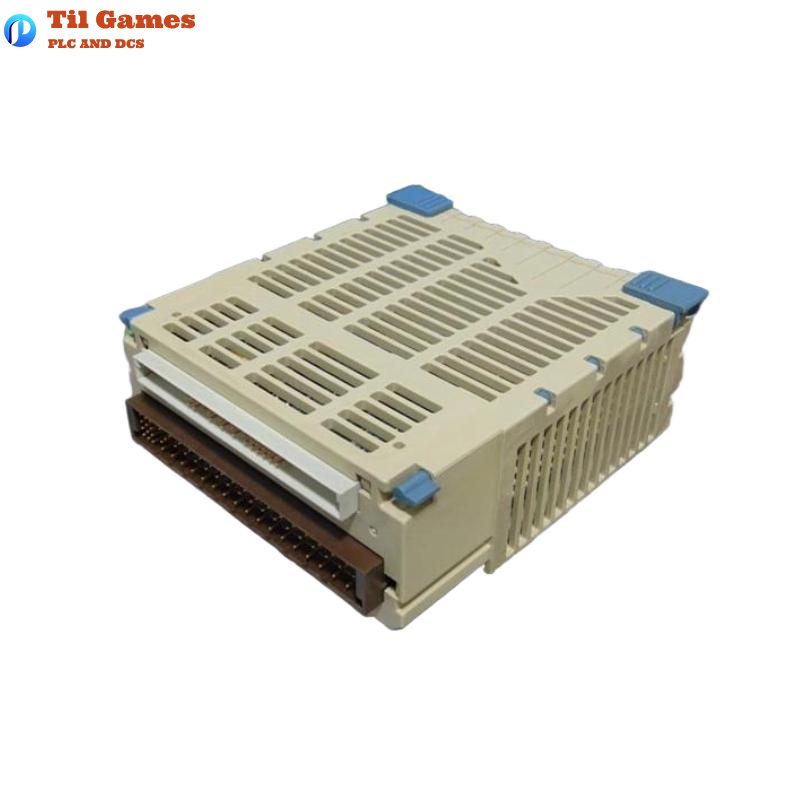

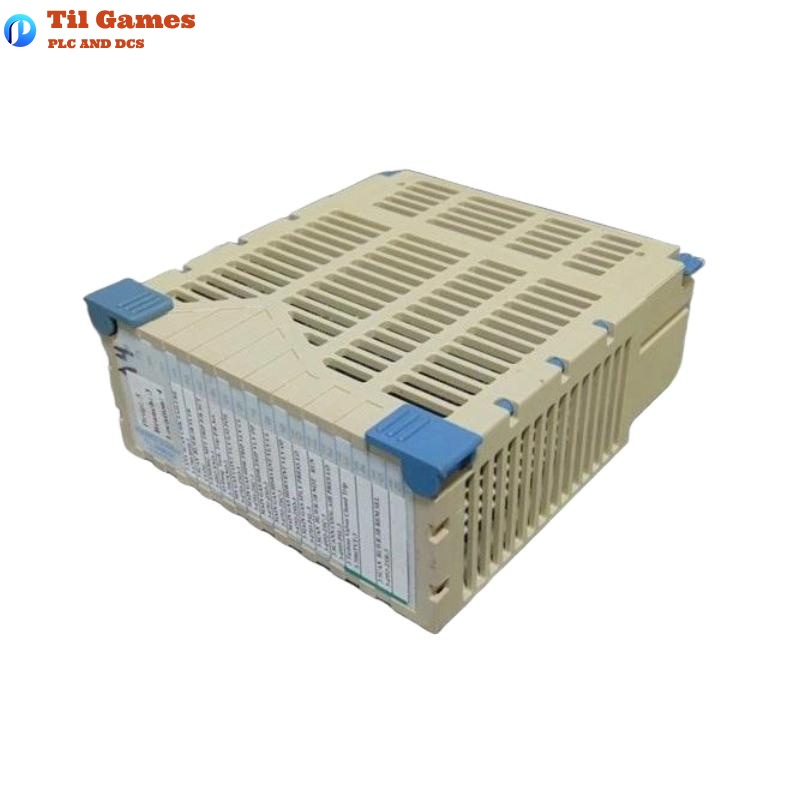

| Module Name | OVATION 1C31157G01 Sequence of Events Module |
| Module Type | Sequence of Events (SOE) Module |
| Input Type | Optically isolated digital inputs |
| Input Voltage Range | 24 VDC or 48 VDC depending on configuration |
| Number of Inputs | 32 channels (per module) |
| Input Sampling | Multiplexed input scanning |
| Timestamp Accuracy | 1 millisecond timestamp precision |
| Time Synchronization | Supported |
| Communication Bus | Compatible with OVATION I/O backplane |
| Power Requirement | Supplied via backplane, no external supply needed |
| Diagnostic Features | Self-test and input state diagnostics supported |
| Dimensions | 121 x 54 x 140 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input channels does the module support?
A1: The OVATION 1C31157G01 module supports up to 32 optically isolated digital inputs.
Q2: What is the timestamp precision of the module?
A2: The module offers 1 millisecond timestamp accuracy, ideal for event sequencing.
Q3: How is the module powered?
A3: It is powered via the backplane connection, with no need for an external power supply.
Q4: Does the module support diagnostic functions?
A4: Yes, it supports self-diagnostics and input status monitoring for maintenance.
Q5: What type of input signal does it accept?
A5: The module accepts optically isolated voltage inputs of 24VDC or 48VDC.
Q6: Can it share data with other OVATION modules?
A6: Yes, it communicates seamlessly over the OVATION I/O backplane with other modules.
Q7: Does the module support hot-swapping?
A7: No, hot-swapping is not supported. Power must be turned off before replacement.
Q8: What is the primary application of this module?
A8: It is used for precise event recording of digital signal transitions, commonly in power plant protection and alarm systems.
