Technical Specifications
| Parameter | Specification |
|---|---|

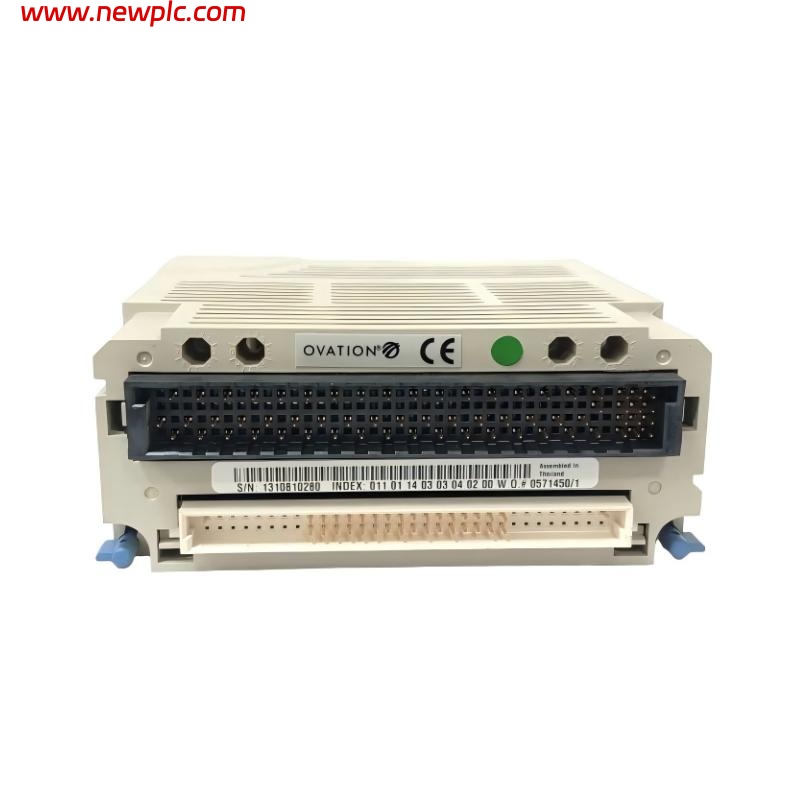

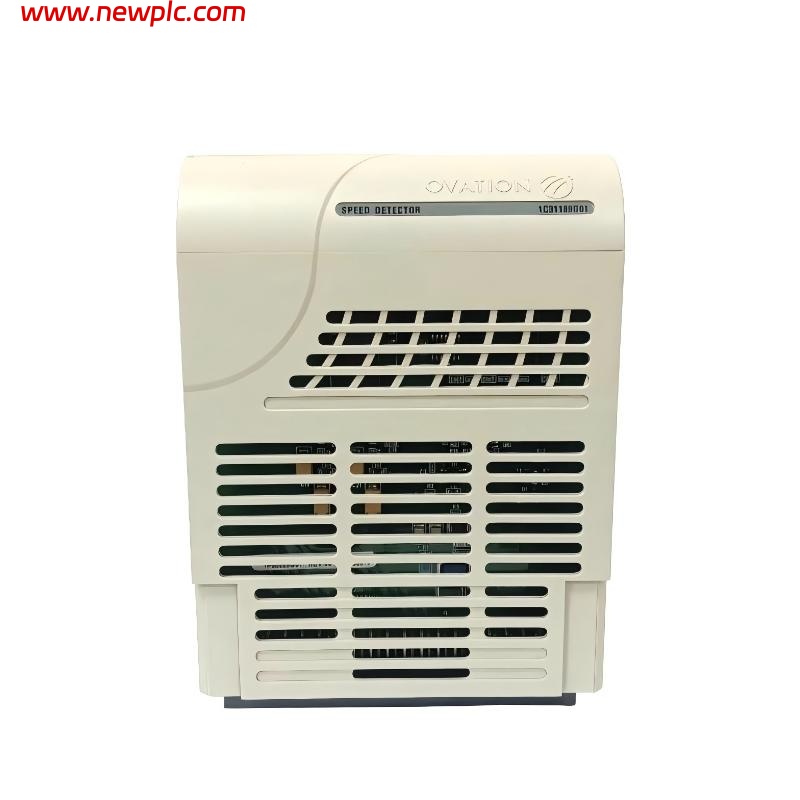

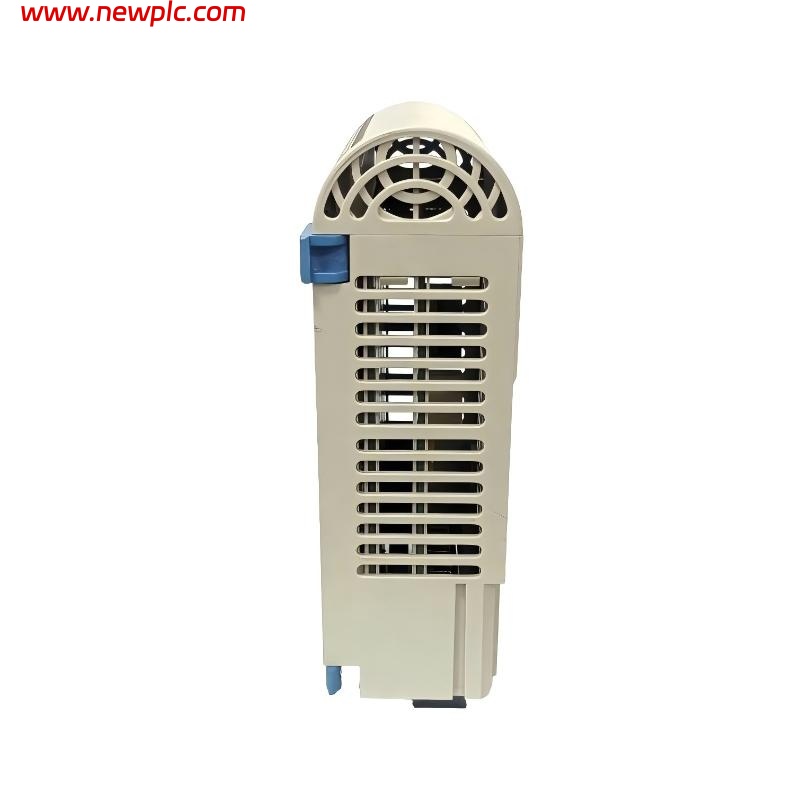

| Product Type | Speed Detector Interface Module |
| Model | Ovation 1C31189G01 |
| Dimensions | 120 x 50 x 165 mm |
| Weight | 0.32 kg |
| Function | Interfaces speed sensors with the Ovation control system, converting rotational signals into digital speed data |
| Input Channels | 2 speed sensor channels |
| Input Signal Types | Contact closure, TTL pulses, or 24 VDC pulse signals |
| Output Interface | Digital data output to Ovation system |
| Counting Frequency | Up to 20 kHz per channel |
| Resolution | 32-bit counter per channel |
| Power Supply | 24 VDC nominal |
| Communication Interface | Ovation system backplane |
| Diagnostics | Sensor fault detection, signal integrity monitoring, and communication status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in module for system backplane |
| Certifications | CE, UL, CSA, and industrial EMC compliance |
FAQ
FAQ
Q1: What is the main function of the Ovation 1C31189G01 module?
A1: The 1C31189G01 interfaces with speed sensors, converting rotational signals into digital speed data for the Ovation control system to monitor and control rotating equipment.
Q2: What types of input signals does the module support?
A2: It supports contact closure, TTL pulses, and 24 VDC pulse signals, providing flexibility for a variety of speed sensors.
Q3: How many speed channels are available on this module?
A3: The module provides 2 independent speed sensor channels, allowing monitoring of multiple rotating devices simultaneously.
Q4: What is the maximum counting frequency the module can handle?
A4: Each channel can process signals up to 20 kHz, making it suitable for high-speed applications.
Q5: How is the speed data represented digitally?
A5: Each channel uses a 32-bit counter to accurately accumulate pulses and provide precise speed measurement for the control system.
Q6: Does the module include diagnostic features?
A6: Yes, it provides sensor fault detection, signal integrity monitoring, and communication status to ensure reliable operation.
Q7: How does the module integrate with the Ovation control system?
A7: It connects directly to the Ovation system backplane, transmitting processed speed data to the central controller for display and control.
Q8: What environmental conditions can the 1C31189G01 operate in?
A8: The module is designed for industrial environments, functioning reliably between 0°C and +60°C with humidity up to 95% non-condensing.
